30" Built-In Gas Cooktop - JGP945BEKBB
30" Built-In Gas Cooktop
Model: JGP945BEKBB
30" Built-In Gas Cooktop
Model: JGP945BEKBB
Color : Black on Black
Replaced By
Key Features
Deep-recessed cooktop
Sealed cooktop burners
Dual-flame stacked burner
Precise Simmer burner
Continuous grates
Control lock capability
Heavy-duty knobs
Electronic pilotless ignition
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Deep-recessed cooktop
Contains spills for quick and easy cleaning
Sealed cooktop burners
Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless
Dual-flame stacked burner
Two-in-one burner is designed for accelerated boiling and gentle simmering
Precise Simmer burner
Allows for low, even heat distribution that is ideal for delicate foods and sauces
Continuous grates
Cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily
Control lock capability
Control panel locks easily to help avoid accidental operation from curious children or when cleaning
Heavy-duty knobs
Enhanced durability and style
Electronic pilotless ignition
Say farewell to the energy-wasting standing pilot! The electric pilotless ignition provides reliable operation
Dishwasher-safe grates
Grates are safe for the dishwasher so cleaning is as easy as ever
Dishwasher-safe knobs
Just place the removable knobs in the dishwasher and you’re done
Certifications
ADA Compliant
California Prop 65
Specifications
FEATURES
| Dishwasher Safe Knobs | Yes |
| Cooktop Burner Type | 4 Sealed |
| All-Purpose Burners | (1) 9,500 BTU/150F degree simmer |
| Valves (Degree of Turn) | 270 |
| Fuel Type | Natural Gas |
| Control Location | Right Side |
| Ignition System | Electronic |
| Cooktop Surface | Deep Porcelain-Enamel |
| Cooktop Control Features | Child Lock |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| Cooktop Burner Grate Material | Deluxe Cast |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Dual Flame Stacked Burners | (1) 18,000 BTU/140F degree simmer |
| Cooktop Burner Grate Features | Continuous Grates |
POWER / RATINGS
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 15.0; (1) 10.0; (1) 9.1; (1) 5.0 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 18.0; (1) 11.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |

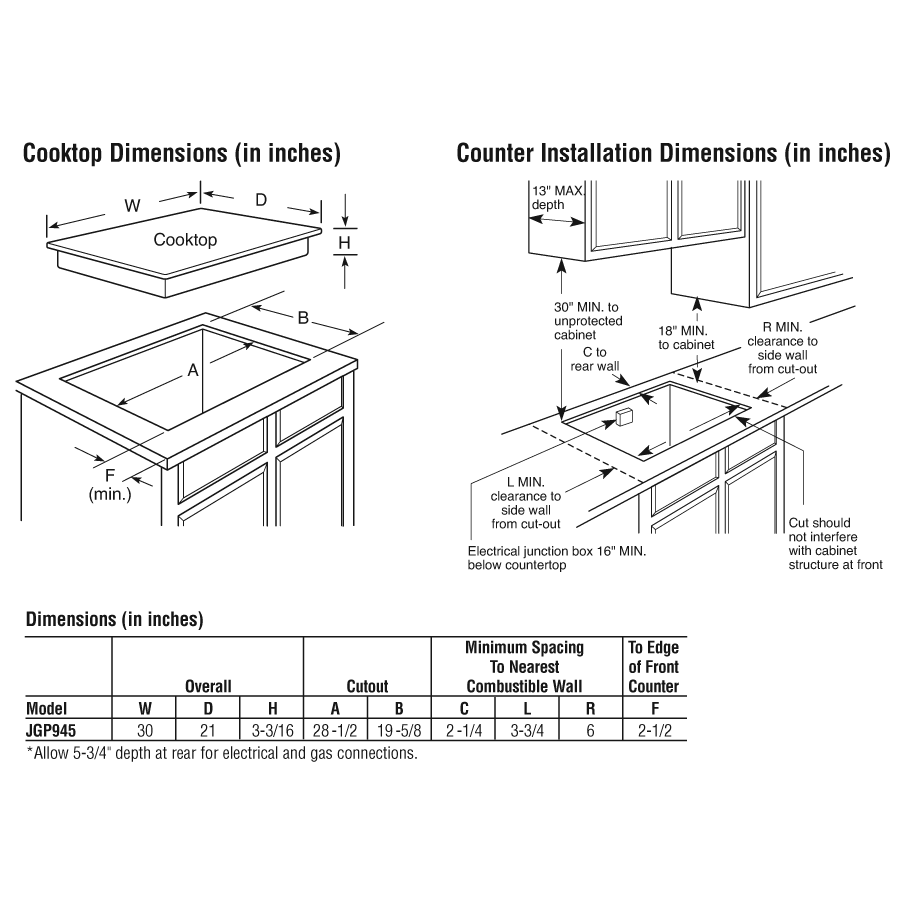

WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 44 lb |
| Overall Width | 30 in |
| Net Weight | 39 lb |
| Overall Depth | 21 in |
| Overall Height | 3 3/16 in |
| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.625 |
ACCESSORIES
| LP Conversion Kit | Included |
| Cooktop Cleaning | Cream (WB64X5027) |
APPEARANCE
| Color Appearance | Black on Black |
Dimensions & Weight
| Width | 30 in. |
| Height | 3.19 in. |
| Length | 21 in. |
| Weight | 39 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 8.19 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 79 lbs. |
| Total of Shipping Weight | 79 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.16 ft³ |
| Dimensional Weight | 14.45 lbs. |
| Total of Cubes | 1.16 ft³ |
| Total of Dimensional Weight | 14.45 lbs. |
