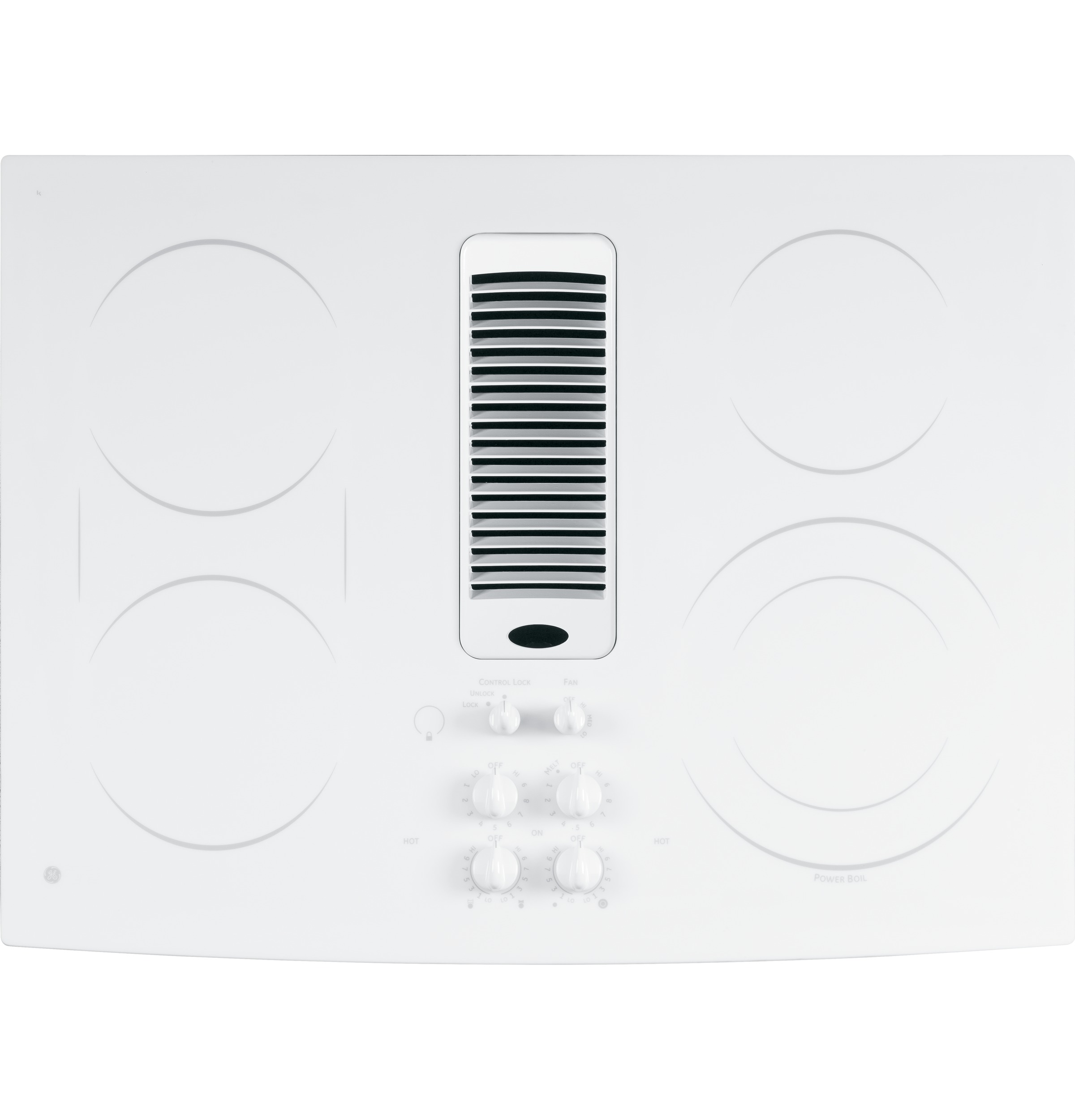

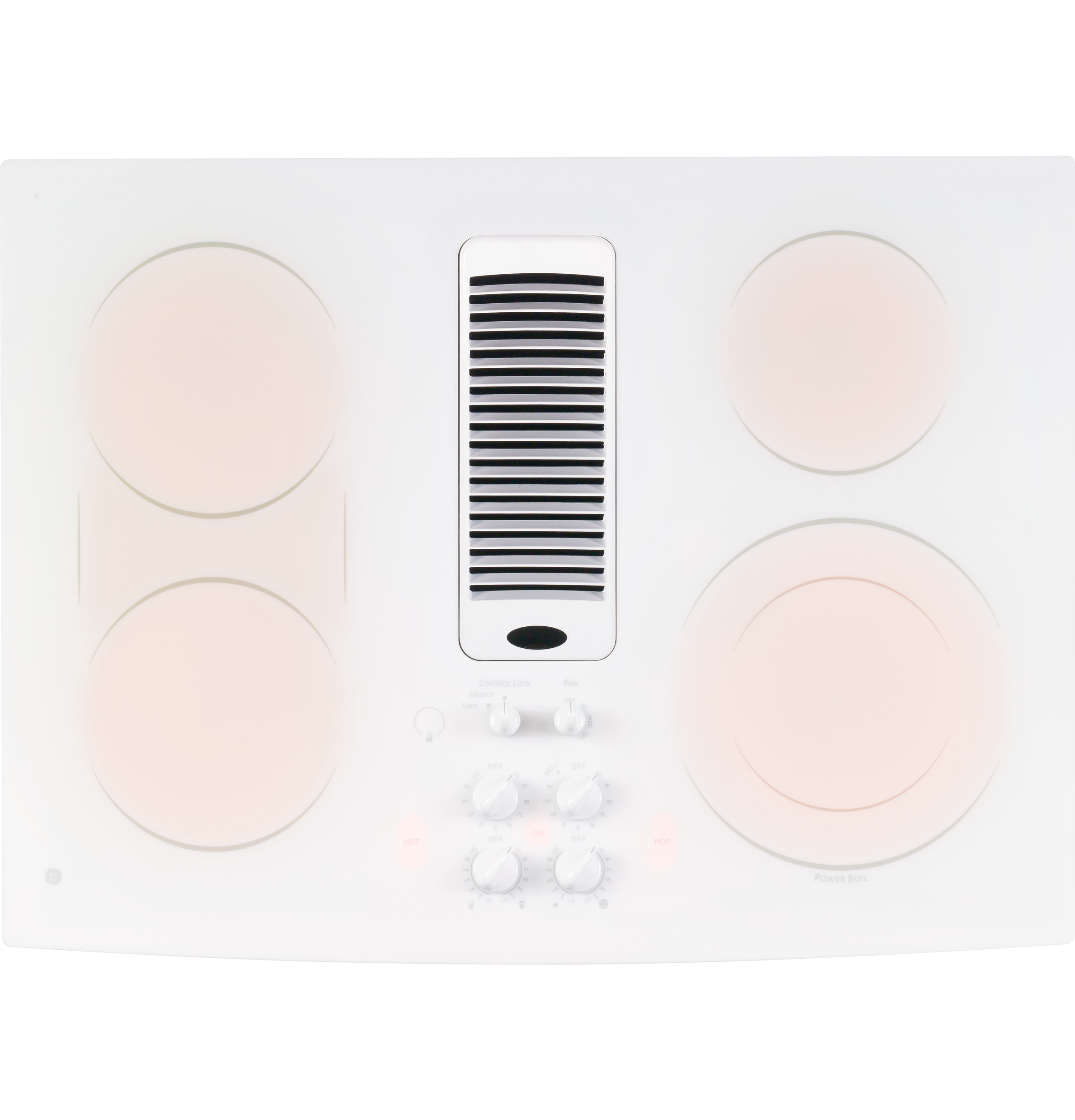

Series 30" Downdraft Electric Cooktop - PP989TNWW
Series 30" Downdraft Electric Cooktop
Model: PP989TNWW
Series 30" Downdraft Electric Cooktop
Model: PP989TNWW
Color : True White
Replaced By
Key Features
Downdraft exhaust
Ceramic-glass cooktop
Ribbon heating elements
Bridge element
9"/6" Power Boil element
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Downdraft exhaust
Powerful exhaust system effectively pulls smoke and steam out of the kitchen
Ceramic-glass cooktop
Cleanup is quick and easy
Ribbon heating elements
Consistent heat and glass surface provide fast, even heating

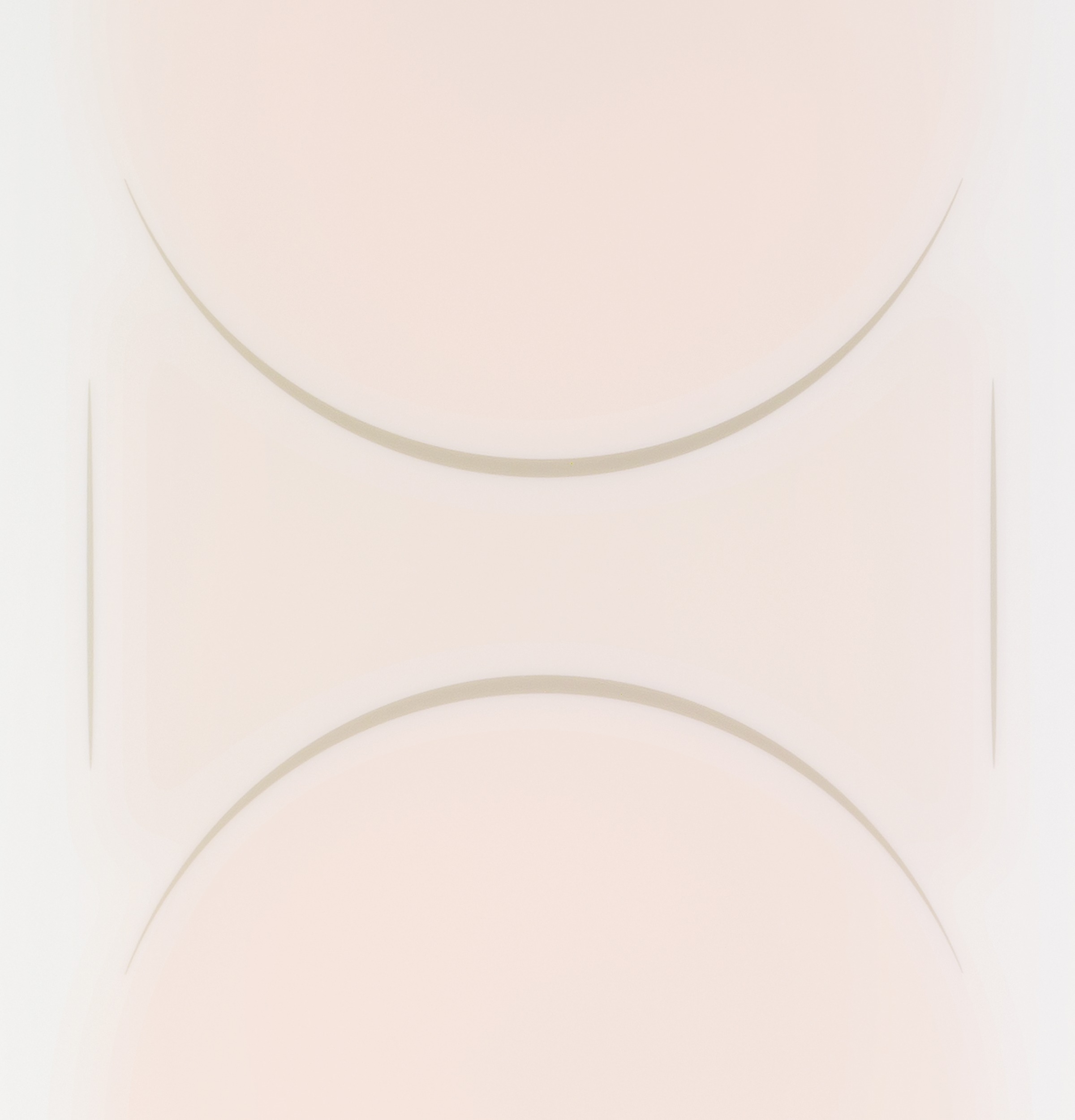

Bridge element
Combines cooking elements into one cooking area
9"/6" Power Boil element
Produces rapid, powerful heat
Certifications
California Prop 65
HVI
UL
Specifications

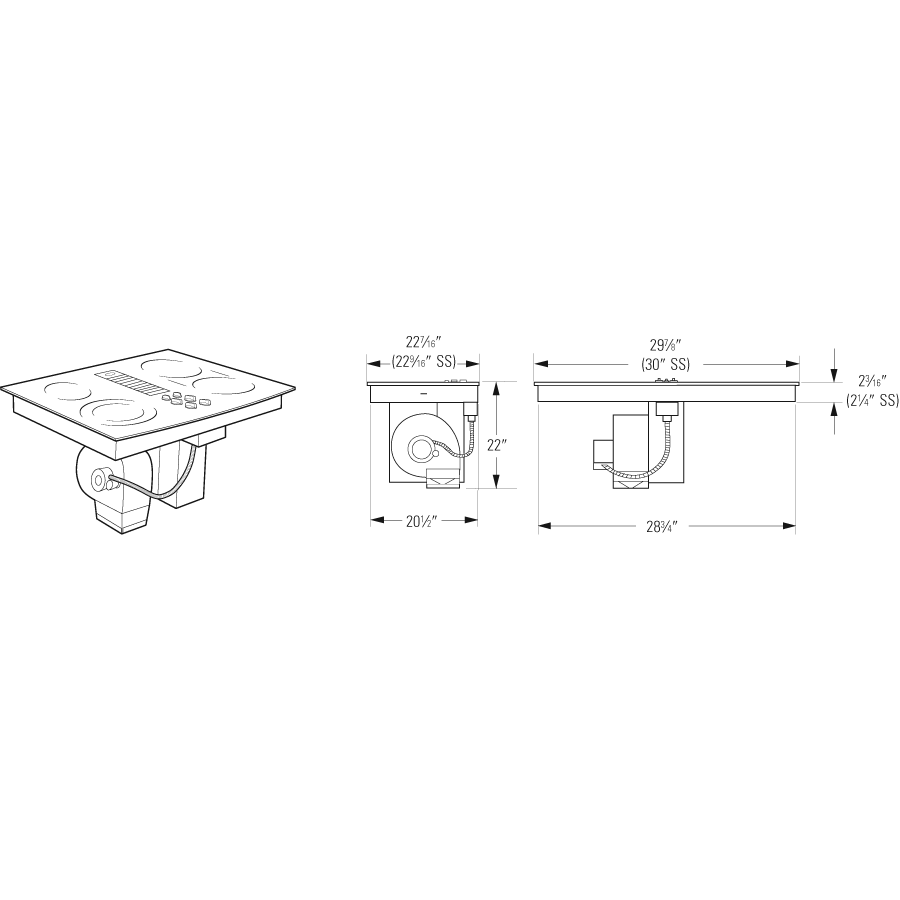

WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Cooktop Size | 30 in |
| Approximate Shipping Weight | 60 lb |
| Net Weight | 45 lb |
| Overall Depth | 22 7/16 in |
| Overall Height | 2 3/16 in |
| Overall Width | 29 7/8 in |
| Cutout Width (in) | 28.875 |
| Cutout Depth (in) | 20.625 |
FEATURES
| Bridge Element | 800W (4400W Total) |
| Cooktop Burner Type | Ribbon |
| Element - Left Front | 7" 1800W |
| Indicator Lights | Surface Element "ON" |
| Element - Right Front | 9"/6" 3000W Power Boil |
| Control Location | Front Center |
| Cooktop Surface | True White Ceramic Glass |
| Cooktop Control Features | Control Lock Capability |
| Element - Left Rear | 7" 1800W |
| Control Type | Infinite Heat Rotary |
| Downdraft Vent Fan Speeds | 3 |
| CFM/ Sones Rating | 330/ 7.5 (High Speed) |
| Element - Right Rear | 6" 1500W |
| Indicator Lights | 4 Hot Surface |
APPEARANCE
| Color Appearance | True White |
| Frameless | Yes |
POWER / RATINGS
| KW Rating at 208V | 6.9 |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 9.1 |
| Amp Rating at 208V | 40 |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 2.19 in. |
| Length | 22.44 in. |
| Weight | 45 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 7.19 in. |
| Shipping Length | 27.44 in. |
| Shipping Weight | 85 lbs. |
| Total of Shipping Weight | 85 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.85 ft³ |
| Dimensional Weight | 8.83 lbs. |
| Total of Cubes | 0.85 ft³ |
| Total of Dimensional Weight | 8.83 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
