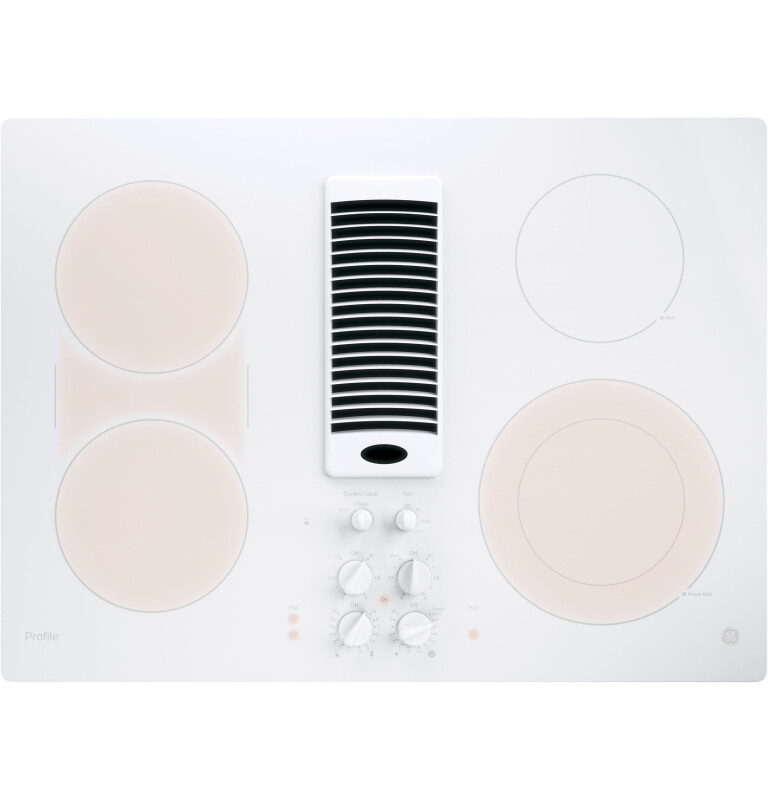

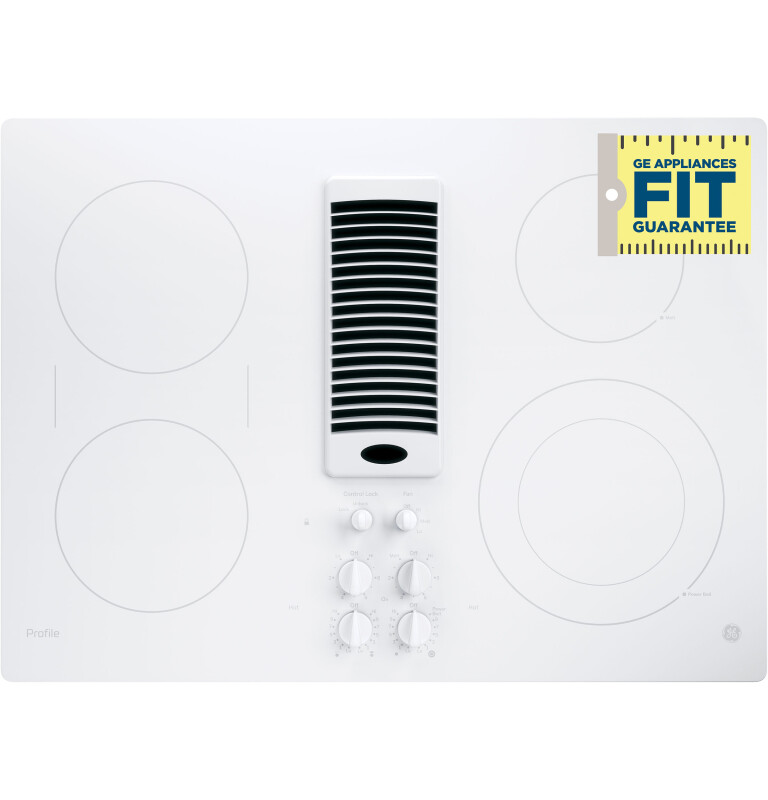

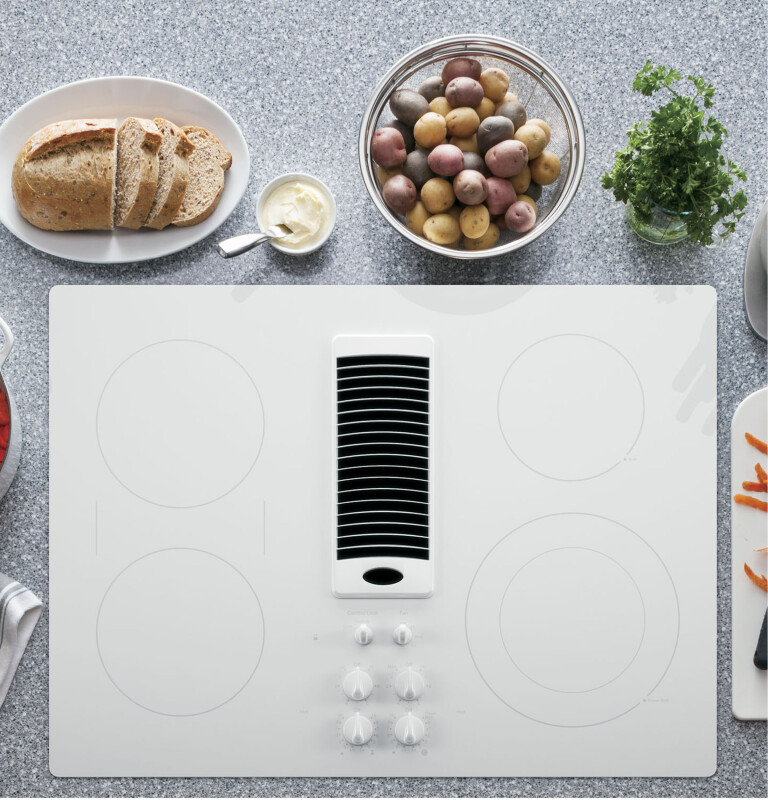

30" Downdraft Electric Cooktop - PP9830TJWW
30" Downdraft Electric Cooktop
Model: PP9830TJWW
30" Downdraft Electric Cooktop
Model: PP9830TJWW
Color : True White
Replaced By
Key Features
Fit Guarantee
Four radiant cooking elements
9"/6" Power Boil element
Bridge Element
Downdraft exhaust
Control lock capability
Knob controls with true-white glass surface
Hot surface indicator lights
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
9"/6" Power Boil element
Use different pan sizes on this single, 3,000-watt flexible element that produces rapid powerful heat
Bridge Element
Combines cooking elements into one cooking area

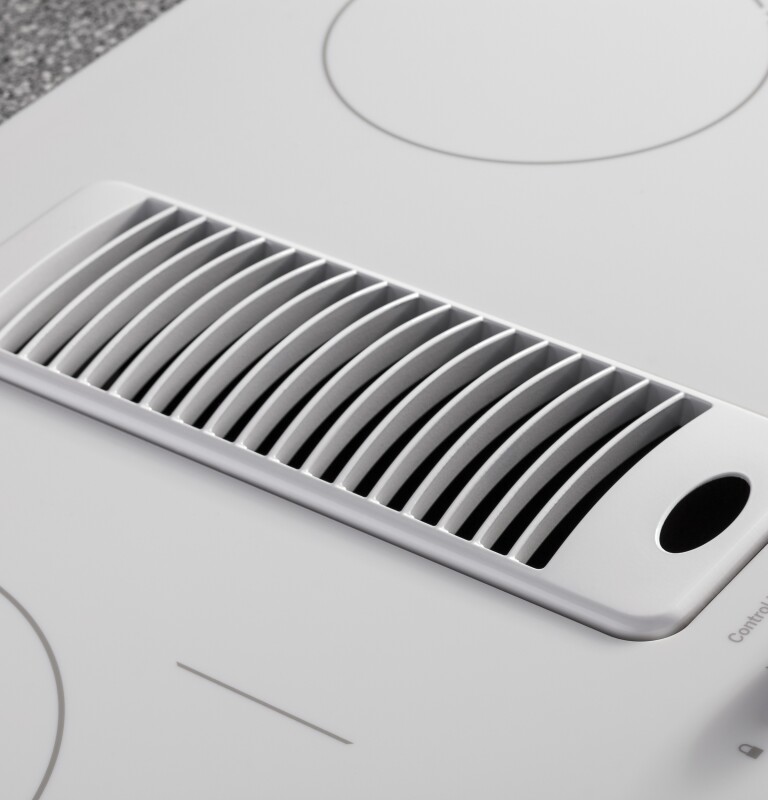

Downdraft exhaust
Powerful exhaust system effectively pulls smoke and steam out of the kitchen
Control lock capability
Protects against unintended activation

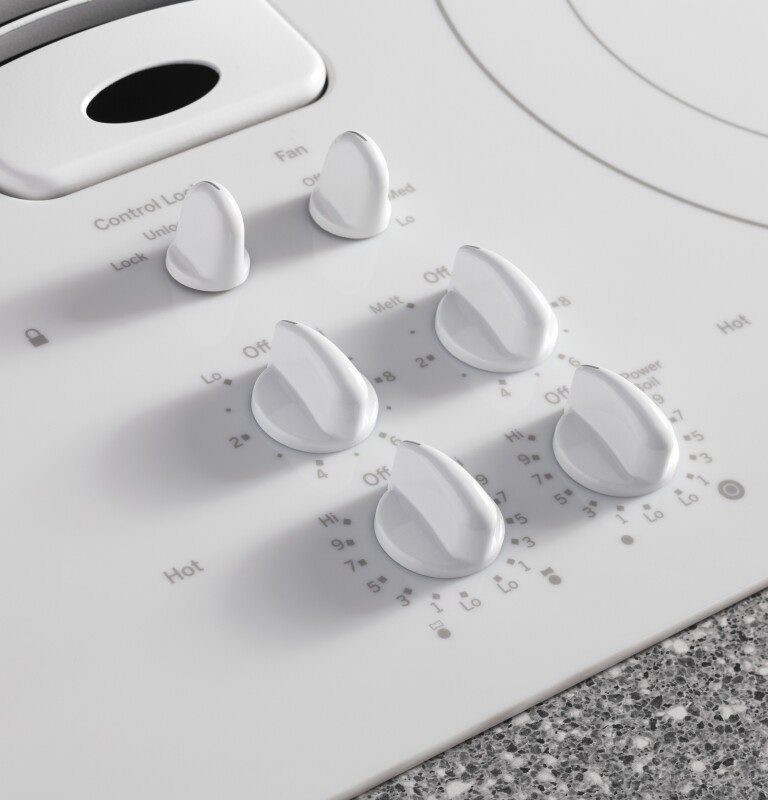

Knob controls with true-white glass surface
Achieve a modern look with the convenience of knob controls
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active
Certifications
California Prop 65
Specifications
FEATURES
| Bridge Element | 800W (4400W Total) |
| Indicator Lights | 4 Hot Surface |
| Indicator Lights | Surface Element "ON" |
| Downdraft Vent Fan Speeds | 3 |
| Element - Right Rear | 6" 1500W |
| Element - Right Front | 9"/6" 3000W Power Boil |
| CFM/ Sones Rating | 330/ 7.5 (High Speed) |
| Cooktop Surface | True White Ceramic Glass |
| Cooktop Control Features | Control Lock Capability |
| Cooktop Type | Radiant Smoothtop |
| Element - Left Rear | 7" 1800W |
| Element - Left Front | 7" 1800W |
| Control Location | Front Center |
| Cooktop Burner Type | Ribbon |
| Control Type | Infinite Heat Rotary |
| Fuel Type | Electric |
POWER / RATINGS
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
| KW Rating at 208V | 6.9 |
| KW Rating at 240V | 9.1 |
APPEARANCE
| Frameless | Yes |
| Color Appearance | True White |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 2.19 in. |
| Length | 21.88 in. |
| Weight | 45 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 7.19 in. |
| Shipping Length | 26.88 in. |
| Shipping Weight | 85 lbs. |
| Total of Shipping Weight | 85 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.82 ft³ |
| Dimensional Weight | 8.58 lbs. |
| Total of Cubes | 0.82 ft³ |
| Total of Dimensional Weight | 8.58 lbs. |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 60 lb |
| Cabinet Width | 30 in |
| Cooktop Size | 30 in |
| Net Weight | 45 lb |
| Overall Depth | 21 7/8 in |
| Overall Height | 2 3/16 in |
| Overall Width | 29 3/4 in |
| Cutout Depth (in) | 20.625 |
| Cutout Width (in) | 28.875 |
Warranty
| Parts (Entire Appliance) | 1 Year |
| Labor (Entire Appliance) | 1 Year |
