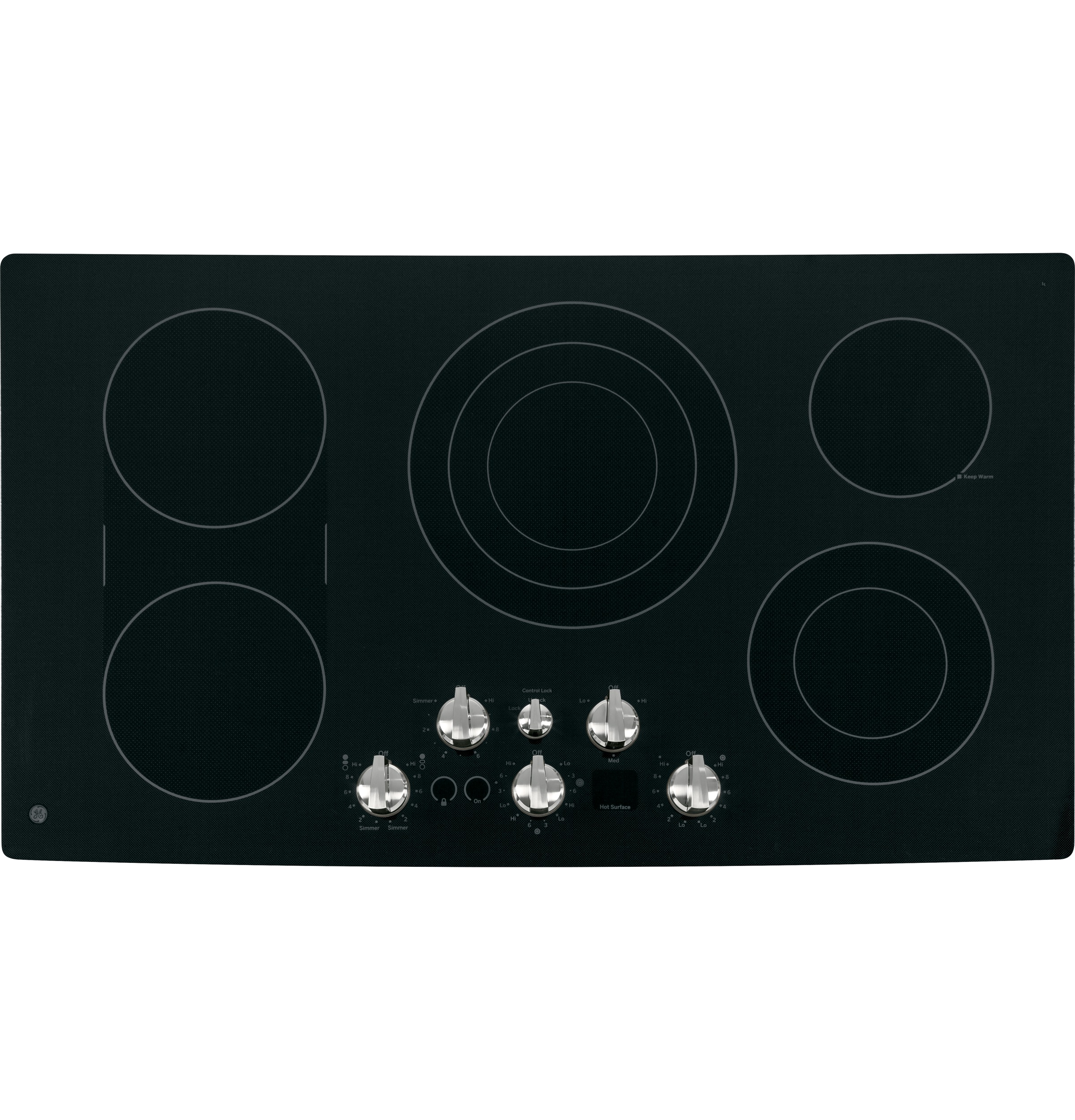

Series 36" Built-In Cooktop - PP962EHES
Series 36" Built-In Cooktop
Model: PP962EHES
Series 36" Built-In Cooktop
Model: PP962EHES
Color : Fingerprint Resistant Slate
Replaced By
Key Features
Ribbon heating elements
Ceramic-glass cooktop
12"/9"/6" tri-ring element
8"/5" dual element
Bridge element
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Ribbon heating elements
Consistent heat and glass surface provide fast, even heating
Ceramic-glass cooktop
Cleanup is quick and easy
12"/9"/6" tri-ring element
Three heating elements in one offer flexibility
8"/5" dual element
Two heating elements in one offer flexibility
Bridge element
Combines cooking elements into one cooking area
Certifications
California Prop 65
UL
Specifications
WEIGHTS & DIMENSIONS
| Cabinet Width | 36 in |
| Overall Depth | 21 in |
| Cooktop Size | 36 in |
| Approximate Shipping Weight | 44 lb |
| Net Weight | 39 lb |
| Overall Height | 3 1/4 in |
| Overall Height at Conduit (rear) | 4 3/16 in |
| Overall Width | 36 1/8 in |

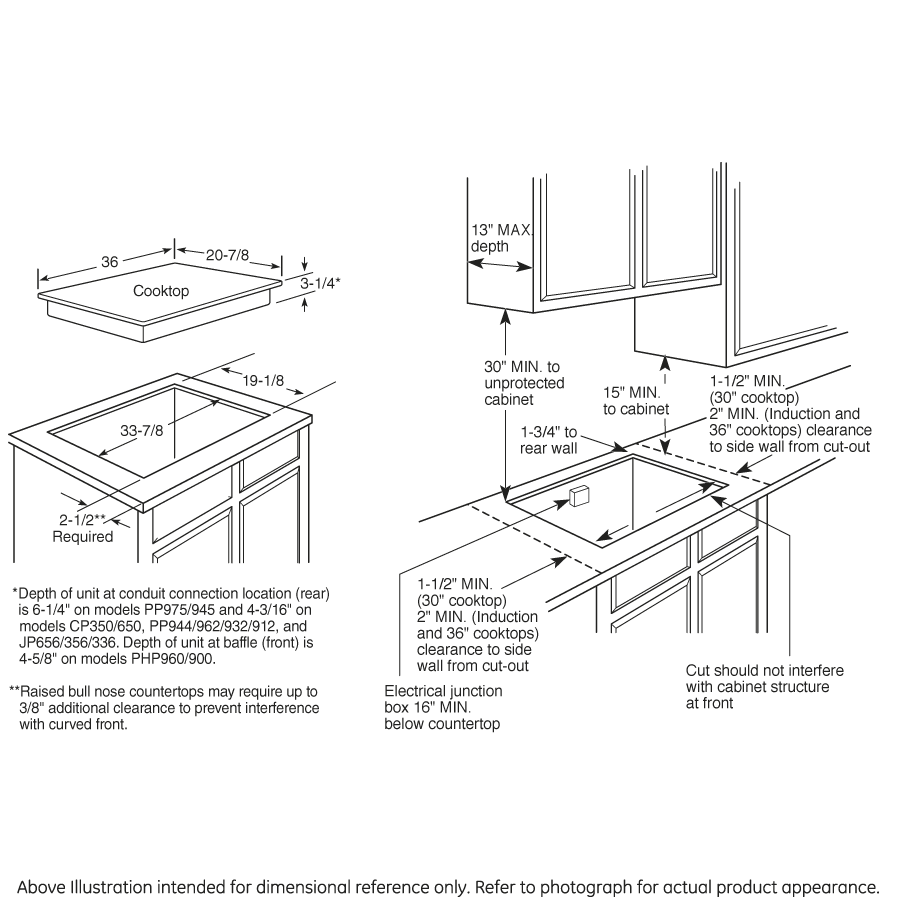

| Cutout Width (in) | 33.875 |
| Cutout Depth (in) | 19.125 |
FEATURES
| Dishwasher Safe Knobs | Yes |
| Bridge Element | 800W (4400W Total) |
| Cooktop Burner Type | Smoothtop |
| Element - Left Front | 7" 1800W |
| Indicator Lights | Surface Element "ON" |
| Element - Right Front | 8"/5" 1900W |
| Control Location | Front Center |
| Cooktop Surface | Black Patterned Ceramic Glass |
| Cooktop Control Features | Child Lock |
| Element - Left Rear | 7" 1800W |
| Control Type | Infinite Heat Rotary |
| Element - Center | 12"/9"/6" 3000W Tri-ring |
| Element - Right Rear | 6" 120W Warming Zone |
| Cooktop Burner Type | 5 Ribbon |
| Indicator Lights | 5 Hot Surface |
APPEARANCE
| Color Appearance | Fingerprint Resistant Slate |
| Frameless | Yes |
| Control Knobs | Stainless Steel Appearance |
POWER / RATINGS
| KW Rating at 208V | 7.1 |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 9.4 |
| Amp Rating at 208V | 40 |
Other
| Cooktop Size | 36 in |
Dimensions & Weight
| Width | 36.13 in. |
| Height | 3.25 in. |
| Length | 21 in. |
| Weight | 39 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41.13 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 79 lbs. |
| Total of Shipping Weight | 79 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.43 ft³ |
| Dimensional Weight | 17.74 lbs. |
| Total of Cubes | 1.43 ft³ |
| Total of Dimensional Weight | 17.74 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
