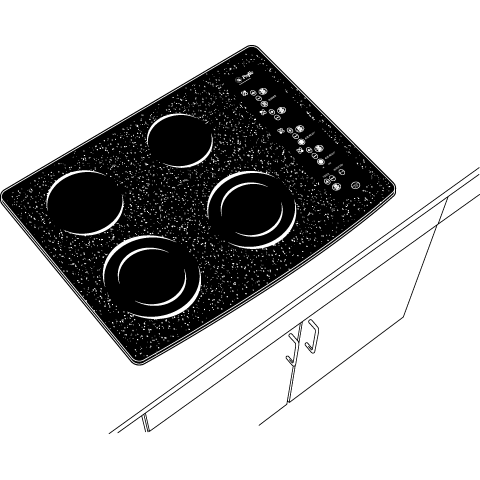

30" Built-In CleanDesign Electric Cooktop - PP950BMBB
30" Built-In CleanDesign Electric Cooktop
Model: PP950BMBB
30" Built-In CleanDesign Electric Cooktop
Model: PP950BMBB
Color : Black on Black
Replaced By
Key Features
Electronic touch controls
Precise Digital Control System
Electronic kitchen timer
Pan size sensor
Pan presence sensor
Dual-size ribbon element
Heating element "On" light
Hot surface indicator lights
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Electronic touch controls
Digital buttons are precise and easy-to-use for great results
Precise Digital Control System
Accurate control ensures even heating and less temperature variation
Electronic kitchen timer
Know exactly how much time you have left before enjoying delicious foods
Pan size sensor
Dual-size element automatically adjusts settings to fit the size of the pan
Pan presence sensor
Shuts the element off when not in use
Dual-size ribbon element
Two heating elements in one allows you to choose a heating area for your cookware
Heating element "On" light
Illuminates when the cooking surface is activated
Hot surface indicator lights
Cooktop lights let you know when the surface is hot
Control lock capability
Control panel locks easily to help avoid accidental operation from curious children or when cleaning
Ribbon heating elements
Powerful heat beneath the smooth surface provides high-speed warm-up and even heating
Warming zone
To help keep meals coordinated, the warming option helps keep foods ready to serve
Precise Digital Control System™
Accurate control ensures even heating and less temperature variation
Certifications
ADA Compliant
California Prop 65

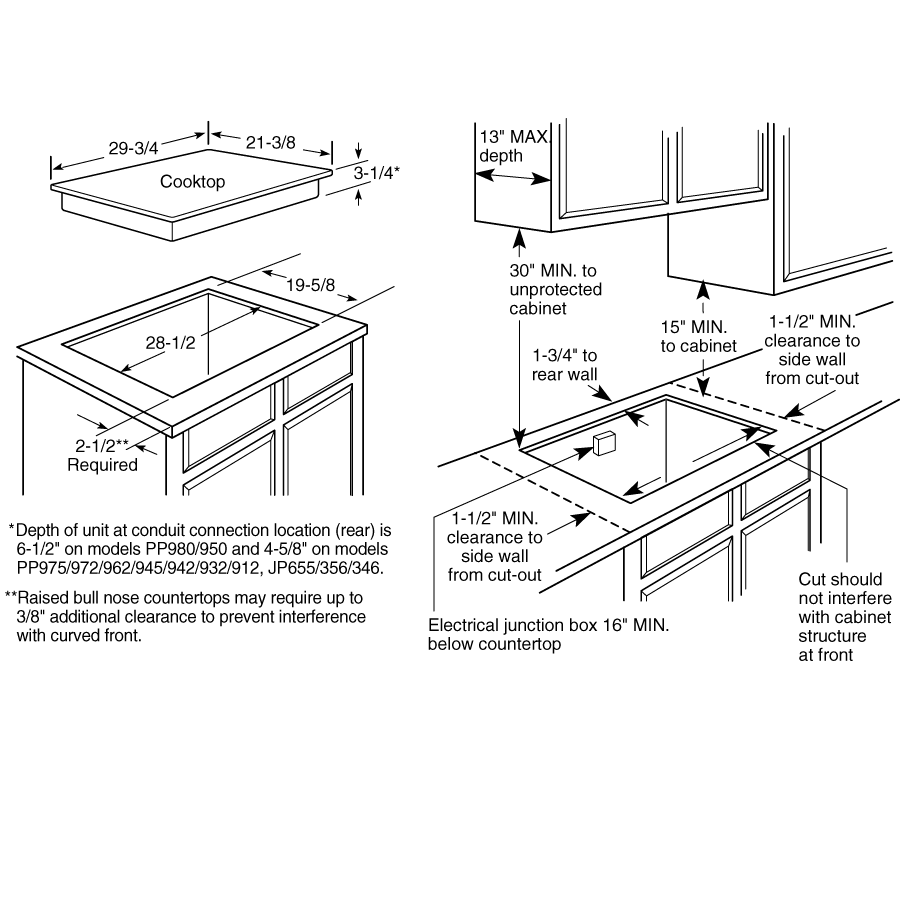

Specifications
WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Cooktop Size | 30 in |
| Approximate Shipping Weight | 41 lb |
| Net Weight | 36 lb |
| Overall Depth | 21 3/8 in |
| Overall Height | 3 1/4 in |
| Overall Width | 29 3/4 in |
| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.625 |
FEATURES
| Cooktop Burner Type | Smoothtop |
| 5"/8" Dual Heating Element | 1 Ribbon (1,000/2,200W) |
| Style | Smoothtop |
| Indicator Lights | Surface Element "ON" |
| Control Location | Right Side |
| Cooktop Surface | Black Pattern on Black Glass Ceramic |
| Cooktop Control Features | Pan Size Sensor |
| 6" Heating Element(s) | 1 Ribbon w/ Warmer (1,200W) |
| 7" Heating Element(s) | 1 Ribbon (1,500W) |
| Timer | Yes |
| Control Type | Electronic Touch |
| 6"/9" Dual Heating Element | 1 Ribbon (1,000/2,500W) |
| Cooktop Burner Type | 4 Ribbon |
| Cooktop Control Features | Child Lock |
| Cooktop Control Features | Pan Presence Sensor |
| Indicator Lights | 4 Hot Surface |
APPEARANCE
| Color Appearance | Black on Black |
| Frameless | Yes |
POWER / RATINGS
| KW Rating at 208V | 5.6 |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 7.4 |
| Amp Rating at 208V | 30 |
ACCESSORIES
| Optional Flush Mount Kit | JXFLMBB (Black - use with black glass cooktops with a white, bisque or black pattern) |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 3.25 in. |
| Length | 21.38 in. |
| Weight | 36 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 26.38 in. |
| Shipping Weight | 76 lbs. |
| Total of Shipping Weight | 76 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.2 ft³ |
| Dimensional Weight | 14.87 lbs. |
| Total of Cubes | 1.2 ft³ |
| Total of Dimensional Weight | 14.87 lbs. |
