Series 30" Built-In Electric Cooktop - PP944DTBB
Series 30" Built-In Electric Cooktop
Model: PP944DTBB
Series 30" Built-In Electric Cooktop
Model: PP944DTBB
Color : Black on Black
Replaced By
Key Features
Ceramic-glass cooktop
Ribbon heating elements
8"/5" dual element
9"/6" Power Boil element
Fifth element cook and warming zone
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Ceramic-glass cooktop
Cleanup is quick and easy
Ribbon heating elements
Consistent heat and glass surface provide fast, even heating
8"/5" dual element
Two heating elements in one offer flexibility
9"/6" Power Boil element
Produces rapid, powerful heat
Fifth element cook and warming zone
Keeps food warm and boils water in minutes
Certifications
ADA Compliant
California Prop 65
UL
Specifications
WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Cooktop Size | 30 in |
| Approximate Shipping Weight | 38 lb |
| Net Weight | 33 lb |
| Overall Depth | 21 3/8 in |
| Overall Height | 3 1/4 in |
| Overall Height at Conduit (rear) | 4 3/16 in |
| Overall Width | 29 3/4 in |

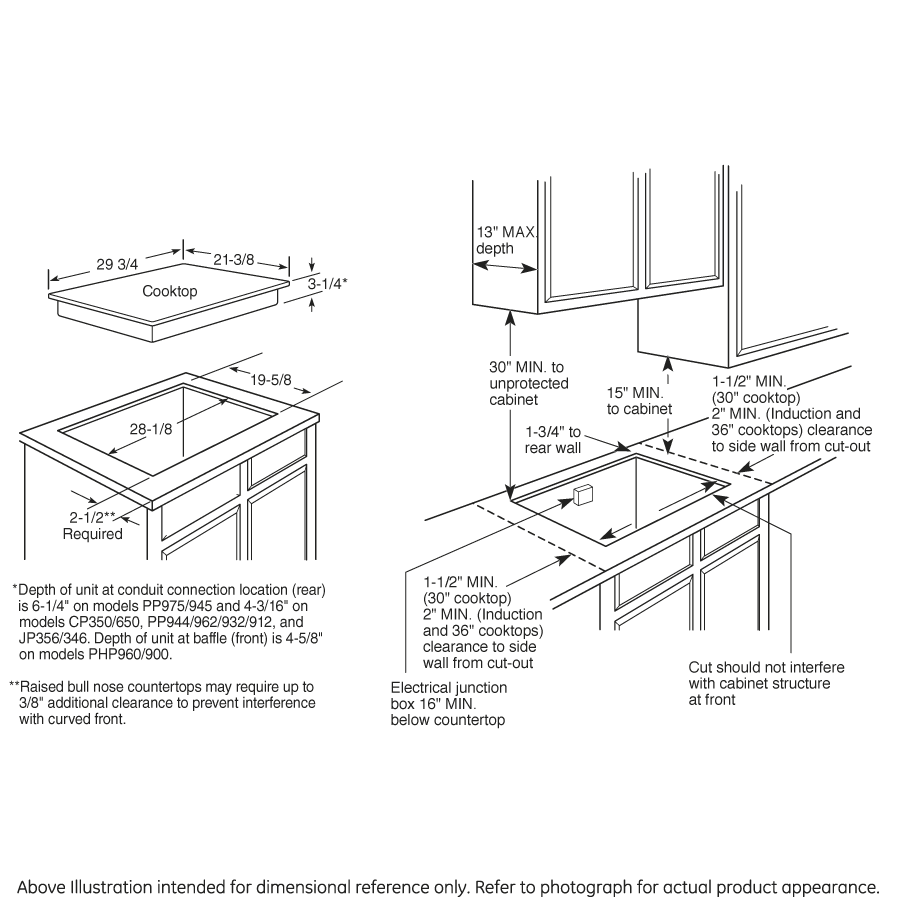

| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.625 |
FEATURES
| Dishwasher Safe Knobs | Yes |
| Cooktop Burner Type | Smoothtop |
| Melt/Simmer Setting | Yes |
| Element - Left Front | 8"/5" 1900W |
| Indicator Lights | Surface Element "ON" |
| Element - Right Front | 9"/6" 3000W Power Boil |
| Control Location | Right Side |
| Cooktop Surface | Black Ceramic Glass |
| Cooktop Control Features | Control Lock Capability |
| Element - Left Rear | 6" 1200W |
| Control Type | Infinite Heat Rotary |
| Element - Center | 6" 1200W |
| Element - Right Rear | 6" 1200W |
| Cooktop Burner Type | 5 Ribbon |
| Indicator Lights | 5 Hot Surface |
APPEARANCE
| Color Appearance | Black on Black |
| Frameless | Yes |
| Control Knobs | Black(Weighted) |
POWER / RATINGS
| KW Rating at 208V | 6.4 |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 8.5 |
| Amp Rating at 208V | 40 |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 3.25 in. |
| Length | 21.38 in. |
| Weight | 33 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 26.38 in. |
| Shipping Weight | 73 lbs. |
| Total of Shipping Weight | 73 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.2 ft³ |
| Dimensional Weight | 14.87 lbs. |
| Total of Cubes | 1.2 ft³ |
| Total of Dimensional Weight | 14.87 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
