30" Downdraft Electric Cooktop - JP989KKCC
30" Downdraft Electric Cooktop
Model: JP989KKCC
30" Downdraft Electric Cooktop
Model: JP989KKCC
Color : True Bisque
Replaced By
Key Features
Downdraft exhaust
Frameless ceramic glass cooktop
Ribbon heating elements
Bridge element
Dual-size ribbon element
Three speed downdraft fan
Upfront controls
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Downdraft exhaust
Powerful exhaust system helps aim smoke, grease, odors and moisture into the downdraft venting system
Frameless ceramic glass cooktop
Attractive cooktop is designed to contain spills and make cleaning quick and easy
Ribbon heating elements
Powerful heat beneath the smooth surface provides high-speed warm-up and even heating
Bridge element
Combines three cooktop elements into one large cooking area, ideal for griddles and gourmet pans
Dual-size ribbon element
Two heating elements in one allows you to choose a heating area for your cookware
Three speed downdraft fan
Three speed fan control helps removes the smoke, grease, odors and moisture created when cooking
Upfront controls
Easy-to-read graphics and one-touch control makes everyday cooking easy as ever
Certifications
ADA Compliant
California Prop 65
Specifications

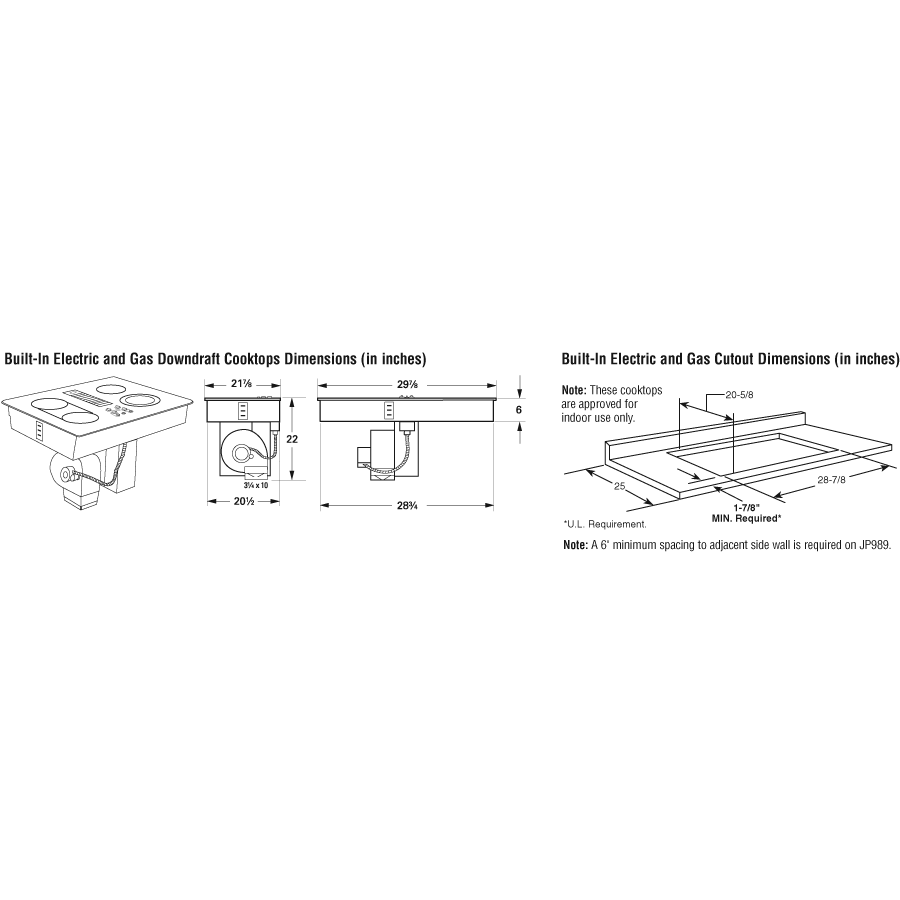

WEIGHTS & DIMENSIONS
| Overall Height | 2 in |
| Cabinet Width | 30 in |
| Cooktop Size | 30 in |
| Approximate Shipping Weight | 72 lb |
| Net Weight | 57 lb |
| Overall Depth | 21 7/8 in |
| Overall Width | 29 7/8 in |
FEATURES
| Bridge Element | 800W (Links 7" Elements) |
| Cooktop Burner Type | 5 Ribbon |
| Downdraft Exhaust (CFM) | 400 |
| Style | Downdraft |
| Indicator Lights | Surface Element "ON" |
| Control Location | Front Center |
| Cooktop Surface | True Bisque Glass Ceramic |
| 6" Heating Element(s) | 1 Ribbon (1,500W) |
| 7" Heating Element(s) | 2 Ribbon (1,800W) |
| Control Type | Infinite Heat Rotary |
| Downdraft Vent Fan Speeds | 3 |
| 6"/9" Dual Heating Element | 1 Ribbon (2,500W) |
| Cooktop Surface | Glass Ceramic |
| Indicator Lights | 4 Hot Surface |
APPEARANCE
| Color Appearance | True Bisque |
| Frameless | Yes |
POWER / RATINGS
| KW Rating at 208V | 6.7 |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 8.8 |
| Amp Rating at 208V | 40 |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 2 in. |
| Length | 21.88 in. |
| Weight | 57 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 7 in. |
| Shipping Length | 26.88 in. |
| Shipping Weight | 97 lbs. |
| Total of Shipping Weight | 97 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.76 ft³ |
| Dimensional Weight | 7.87 lbs. |
| Total of Cubes | 0.76 ft³ |
| Total of Dimensional Weight | 7.87 lbs. |
