36" Built-In CleanDesign Cooktop - JP980CKCC
36" Built-In CleanDesign Cooktop
Model: JP980CKCC
36" Built-In CleanDesign Cooktop
Model: JP980CKCC
Color : Bisque on Bisque
Replaced By
Key Features
Electronic touch controls
Precise Digital Control System
Ceramic glass cooktop
Pan size sensor
Pan presence sensor
Control lock capability
Ribbon heating elements
Dual size ribbon elements
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Electronic touch controls
Offer easy point-and-cook convenience
Precise Digital Control System
Delivers accurate control on the cooktop, ensuring even heating and less temperature variation
Ceramic glass cooktop
A smooth cooktop surface makes cleaning quick and easy
Pan size sensor
Adjusts the heating element automatically to fit the pan
Pan presence sensor
Detects when a burner element is left "on" and automatically shuts it off when not in use
Control lock capability
Provides the ability to lock the cooktop's controls, helping protect from unintended activation
Ribbon heating elements
Provide powerful heat beneath a smooth glass surface to ensure even heat and fast warm-up times
Dual size ribbon elements
Offers a convenient choice of using a 9" or 6" on one and a 8" or 5" on the other heating element, depending on the size of the pan
Precise Digital Control System™
Delivers accurate control on the cooktop, ensuring even heating and less temperature variation
Certifications
ADA Compliant
California Prop 65
Specifications

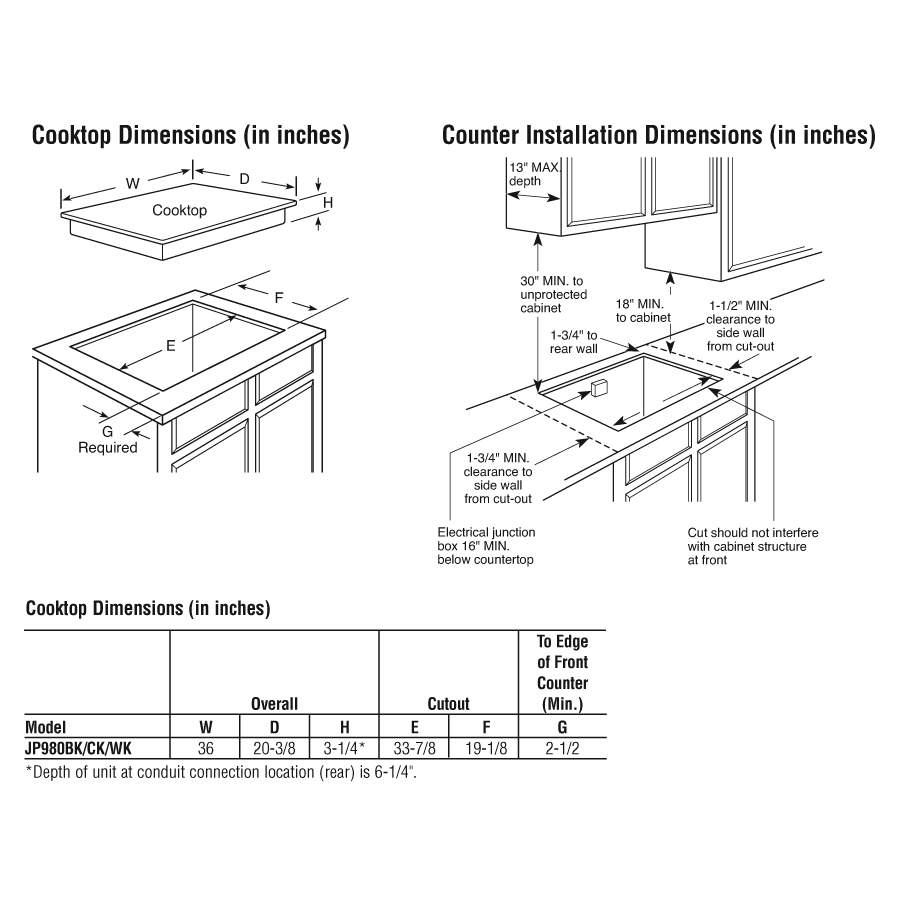

WEIGHTS & DIMENSIONS
| Cabinet Width | 36 in |
| Overall Width | 36 in |
| Cooktop Size | 36 in |
| Overall Depth | 20 3/8 in |
| Overall Height | 3 1/4 in |
| Cutout Width (in) | 33.875 |
| Cutout Depth (in) | 19.125 |
APPEARANCE
| Flushmount Capable | Yes |
| Color Appearance | Bisque on Bisque |
| Frameless | Yes |
FEATURES
| Cooktop Burner Type | Smoothtop |
| 5"/8" Dual Heating Element | 1 Ribbon (1,000/2,200W) |
| Style | Smoothtop |
| Indicator Lights | Surface Element "ON" |
| Control Location | Front Center |
| Cooktop Surface | Patterned Bisque on Black Glass Ceramic |
| Cooktop Control Features | Pan Size Sensor |
| 6" Heating Element(s) | 2 Ribbon (1,200W) |
| 7" Heating Element(s) | 1 Ribbon with warmer (1,500W) |
| Timer | Yes |
| Control Type | Electronic Touch |
| 6"/9" Dual Heating Element | 1 Ribbon (1,000/2,500W) |
| Cooktop Burner Type | 5 Ribbon |
| Cooktop Control Features | Child Lock |
| Cooktop Control Features | Pan Presence Sensor |
| Indicator Lights | 5 Hot Surface |
POWER / RATINGS
| KW Rating at 208V | 6.5 |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 8.6 |
| Amp Rating at 208V | 40 |
ACCESSORIES
| Optional Flush Mount Kit | JXFLMBB (Black - use with black glass cooktops with a white, bisque or black pattern) |
Other
| Cooktop Size | 36 in |
Dimensions & Weight
| Width | 36 in. |
| Height | 3.25 in. |
| Length | 20.38 in. |
| Weight | 49 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 25.38 in. |
| Shipping Weight | 89 lbs. |
| Total of Shipping Weight | 89 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.38 ft³ |
| Dimensional Weight | 17.15 lbs. |
| Total of Cubes | 1.38 ft³ |
| Total of Dimensional Weight | 17.15 lbs. |
