36" Built-In CleanDesign Cooktop - JP980BKBB
36" Built-In CleanDesign Cooktop
Model: JP980BKBB
36" Built-In CleanDesign Cooktop
Model: JP980BKBB
Color : Black on Black
Replaced By
Key Features

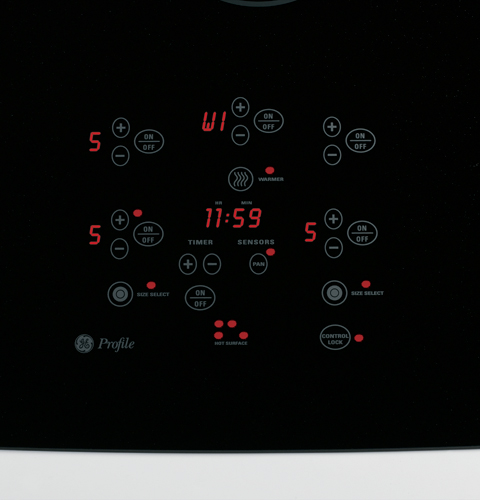

Electronic touch controls
Ceramic glass cooktop
Pan presence sensor
Pan size sensor
Control lock capability
Ribbon heating elements
Dual size ribbon elements
Precise Digital Control System™
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Electronic touch controls
Offer easy point-and-cook convenience
Ceramic glass cooktop
A smooth cooktop surface makes cleaning quick and easy
Pan presence sensor
Detects when a burner element is left "on" and automatically shuts it off when not in use
Pan size sensor
Adjusts the heating element automatically to fit the pan
Control lock capability
Provides the ability to lock the cooktop's controls, helping protect from unintended activation
Ribbon heating elements
Provide powerful heat beneath a smooth glass surface to ensure even heat and fast warm-up times
Dual size ribbon elements
Offers a convenient choice of using a 9" or 6" on one and a 8" or 5" on the other heating element, depending on the size of the pan
Precise Digital Control System™
Delivers accurate control on the cooktop, ensuring even heating and less temperature variation
Certifications
ADA Compliant
California Prop 65
Specifications

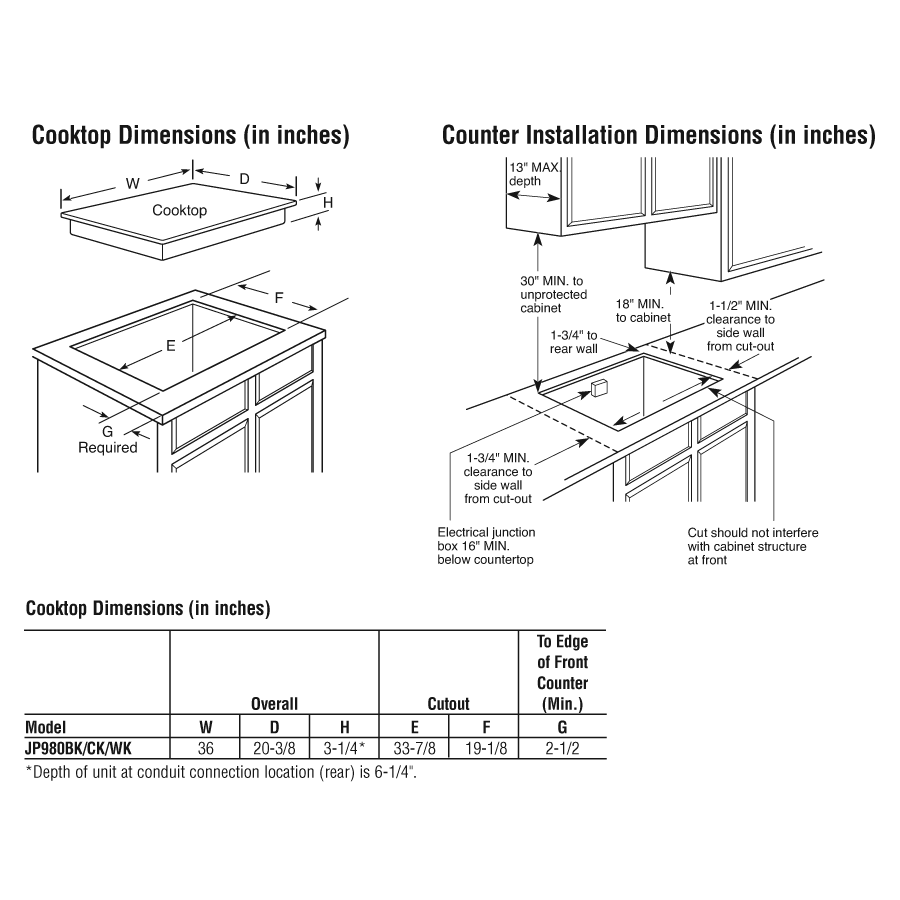

WEIGHTS & DIMENSIONS
| Overall Width | 36 in |
| Cabinet Width | 36 in |
| Cooktop Size | 36 in |
| Overall Depth | 20 3/8 in |
| Overall Height | 3 1/4 in |
| Cutout Width (in) | 33.875 |
| Cutout Depth (in) | 19.125 |
FEATURES
| Style | Smoothtop |
| Cooktop Burner Type | Smoothtop |
| 7" Heating Element(s) | 1 Ribbon with warmer (1,500W) |
| Cooktop Control Features | Pan Size Sensor |
| 6"/9" Dual Heating Element | 1 Ribbon (1,000/2,500W) |
| Cooktop Surface | Black Pattern on Black Glass Ceramic |
| Indicator Lights | Surface Element "ON" |
| Control Type | Electronic Touch |
| 6" Heating Element(s) | 2 Ribbon (1,200W) |
| 5"/8" Dual Heating Element | 1 Ribbon (1,000/2,200W) |
| Control Location | Front Center |
| Timer | Yes |
| Cooktop Burner Type | 5 Ribbon |
| Cooktop Control Features | Child Lock |
| Cooktop Control Features | Pan Presence Sensor |
| Indicator Lights | 5 Hot Surface |
ACCESSORIES
| Optional Flush Mount Kit | JXFLMBB (Black - use with black glass cooktops with a white, bisque or black pattern) |
POWER / RATINGS
| KW Rating at 208V | 6.5 |
| KW Rating at 240V | 8.6 |
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Frameless | Yes |
| Flushmount Capable | Yes |
| Color Appearance | Black on Black |
Other
| Cooktop Size | 36 in |
Dimensions & Weight
| Width | 36 in. |
| Height | 3.25 in. |
| Length | 20.38 in. |
| Weight | 49 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 25.38 in. |
| Shipping Weight | 89 lbs. |
| Total of Shipping Weight | 89 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.38 ft³ |
| Dimensional Weight | 17.15 lbs. |
| Total of Cubes | 1.38 ft³ |
| Total of Dimensional Weight | 17.15 lbs. |
