36" Built-In CleanDesign Cooktop - JP970TKWW
36" Built-In CleanDesign Cooktop
Model: JP970TKWW

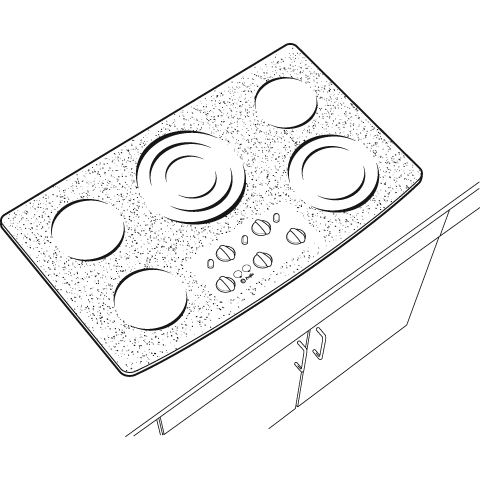

36" Built-In CleanDesign Cooktop
Model: JP970TKWW
Color : True White
Replaced By
Key Features
Ribbon heating elements
Ceramic glass cooktop
12"/9"/6" tri-ring element
Dual-size ribbon element
Frameless design
Upfront controls
Control lock capability
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Ribbon heating elements
Provide powerful heat beneath a smooth glass surface to ensure even heat and fast warm-up times
Ceramic glass cooktop
A smooth cooktop surface makes cleaning quick and easy

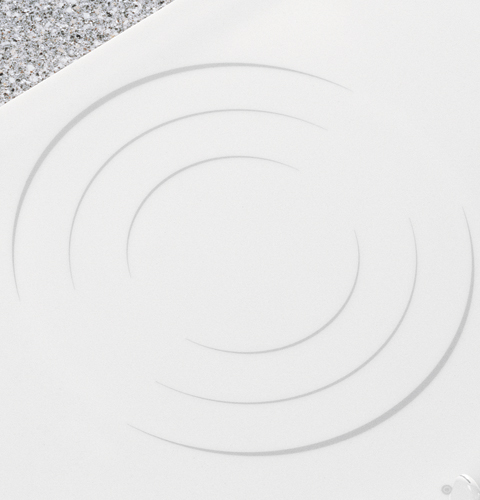

12"/9"/6" tri-ring element
Accommodates various-sized pots or pans for the ultimate in cooking versatility
Dual-size ribbon element
Offers a convenient choice of using a 8" or 5" heating element, depending on the size of the pan
Frameless design
A smooth and seamless cooktop surface makes cleaning quick and easy
Upfront controls
Controls are placed within easy reach at the front center of the cooktop

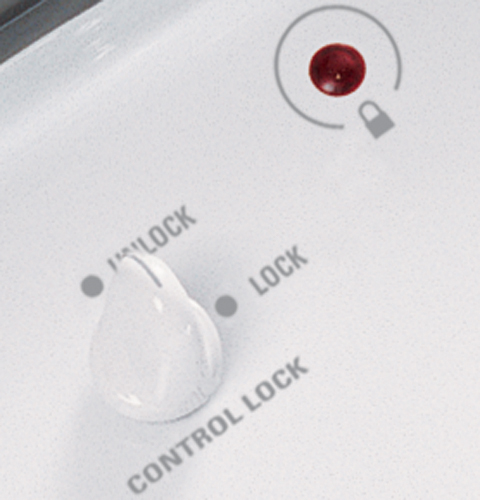

Control lock capability
Provides the ability to lock controls, helping protect from unintentional activation
Certifications
ADA Compliant
California Prop 65
Specifications

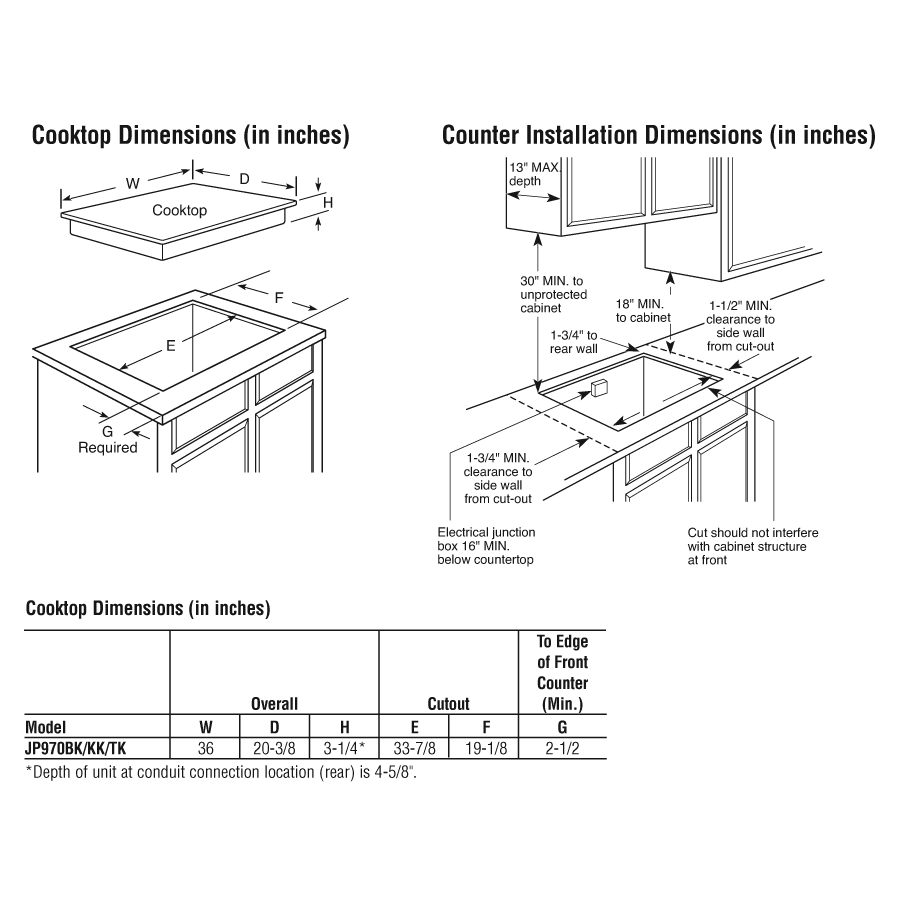

WEIGHTS & DIMENSIONS
| Overall Width | 36 in |
| Cabinet Width | 36 in |
| Cooktop Size | 36 in |
| Overall Depth | 20 3/8 in |
| Overall Height | 3 1/4 in |
| Cutout Width (in) | 33.875 |
| Cutout Depth (in) | 19.125 |
FEATURES
| Style | Smoothtop |
| Cooktop Burner Type | Smoothtop |
| 7" Heating Element(s) | 2 Ribbon (1,500W) |
| Cooktop Control Features | Child Lock |
| Cooktop Surface | True White Ceramic Glass |
| Indicator Lights | Surface Element "ON" |
| Control Type | Infinite Heat Rotary |
| 6" Heating Element(s) | 1 Ribbon (1,200W) |
| 6"/9"/12" Tri-Ring Element | 1 Ribbon (1,050/1,950/3,000W) |
| 5"/8" Dual Heating Element | 1 Ribbon (1,000/2,200W) |
| Control Location | Front Center |
| Dishwasher Safe Knobs | Yes |
| Cooktop Burner Type | 5 Ribbon |
| Indicator Lights | 5 Hot Surface |
ACCESSORIES
| Optional Flush Mount Kit | JXFLMTW (True White) |
POWER / RATINGS
| KW Rating at 208V | 7.1 |
| KW Rating at 240V | 9.4 |
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Frameless | Yes |
| Flushmount Capable | Yes |
| Color Appearance | True White |
Other
| Cooktop Size | 36 in |
Dimensions & Weight
| Width | 36 in. |
| Height | 3.25 in. |
| Length | 20.38 in. |
| Weight | 39 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 25.38 in. |
| Shipping Weight | 79 lbs. |
| Total of Shipping Weight | 79 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.38 ft³ |
| Dimensional Weight | 17.15 lbs. |
| Total of Cubes | 1.38 ft³ |
| Total of Dimensional Weight | 17.15 lbs. |
