36" Built-In CleanDesign Cooktop - JP961BHBB
36" Built-In CleanDesign Cooktop
Model: JP961BHBB
36" Built-In CleanDesign Cooktop
Model: JP961BHBB
Color : Black on Black
Replaced By
Key Features
Ceramic glass cooktop
Ribbon heating elements
Dual size ribbon elements
Frameless design
Upfront controls
Hot surface indicator lights
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Ceramic glass cooktop
A smooth cooktop surface makes cleaning quick and easy
Ribbon heating elements
Provides powerful heat beneath the smooth glass surface to ensure even heat and fast warm-up times
Dual size ribbon elements
Offers a convenient choice of using a 9" or 6" on one and a 8" or 5" on the other heating element, depending on the size of the pan
Frameless design
A smooth and seamless cooktop surface makes cleaning quick and easy
Upfront controls
Controls are placed within easy reach at the front center of the cooktop
Hot surface indicator lights
Illuminate when the cooking surface is active and hot, adding convenience and safe caution
Certifications
ADA Compliant
California Prop 65
Specifications

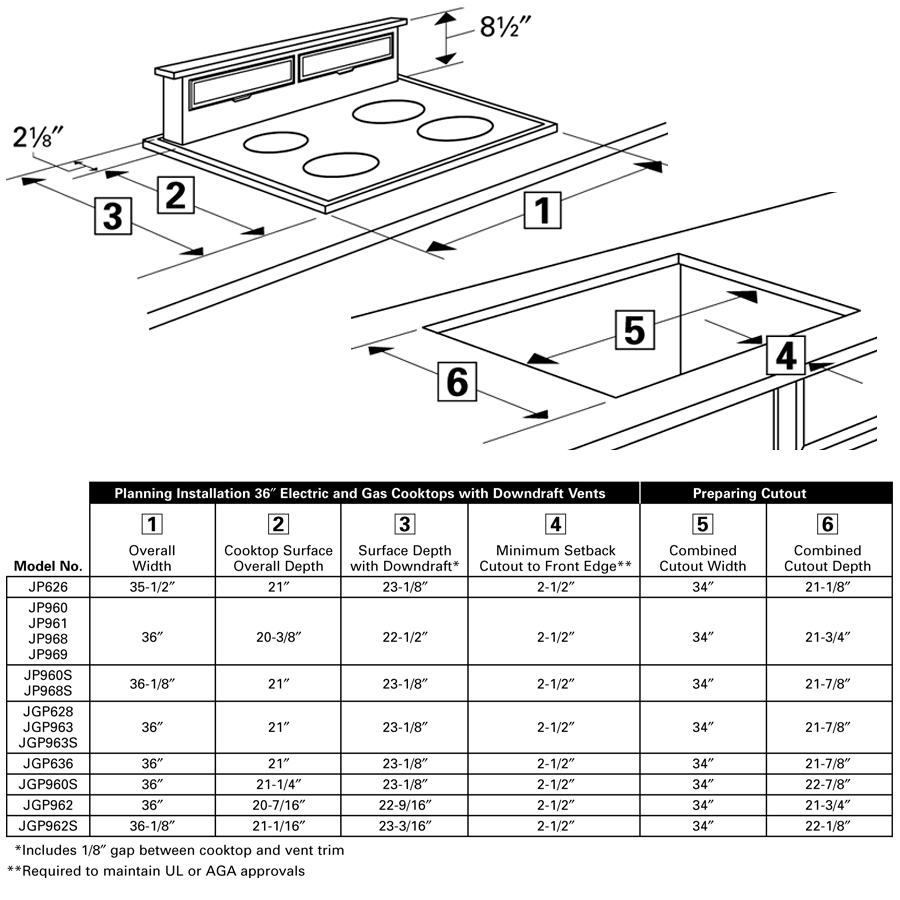

WEIGHTS & DIMENSIONS
| Overall Width | 36 in |
| Cabinet Width | 36 in |
| Cooktop Size | 36 in |
| Overall Depth | 20 3/8 in |
| Overall Height | 3 1/4 in |
| Cutout Width (in) | 33.875 |
| Cutout Depth (in) | 19.125 |
FEATURES
| Style | Smoothtop |
| Cooktop Burner Type | Smoothtop |
| 7" Heating Element(s) | 1 Ribbon (1,500W) |
| 6"/9" Dual Heating Element | 1 Ribbon (2,500W) |
| Cooktop Surface | Black Pattern on Black Glass Ceramic |
| Indicator Lights | 5 Hot Surface |
| 6" Heating Element(s) | 2 Ribbon (1,200W) |
| Control Type | Rotary Knobs |
| 5"/8" Dual Heating Element | 1 Ribbon (2,200W) |
| Cooktop Burner Type | 5 Ribbon |
ACCESSORIES
| Optional Flush Mount Kit | JXFLMBB (Black - use with black glass cooktops with a white, bisque or black pattern) |
APPEARANCE
| Installation | Flush Appearance |
| Frameless | Yes |
| Flushmount Capable | Yes |
| Color Appearance | Black on Black |
POWER / RATINGS
| KW Rating at 208V | 6.5 |
| KW Rating at 240V | 8.6 |
| Amp Rating at 208V | 31 |
| Amp Rating at 240V | 36 |
Other
| Cooktop Size | 36 in |
Dimensions & Weight
| Width | 36 in. |
| Height | 3.25 in. |
| Length | 20.38 in. |
| Weight | 39 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 25.38 in. |
| Shipping Weight | 79 lbs. |
| Total of Shipping Weight | 79 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.38 ft³ |
| Dimensional Weight | 17.15 lbs. |
| Total of Cubes | 1.38 ft³ |
| Total of Dimensional Weight | 17.15 lbs. |
