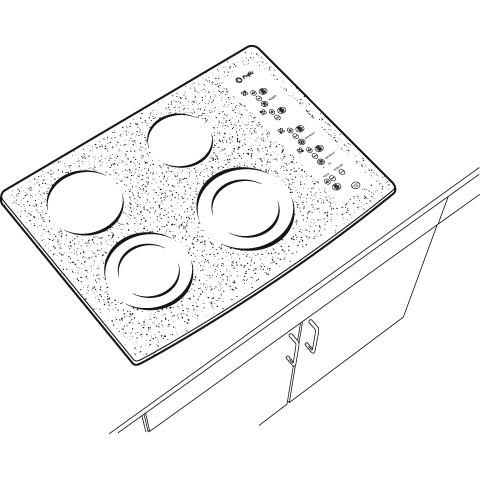

30" Built-In CleanDesign Electric Cooktop - JP950WKWW
30" Built-In CleanDesign Electric Cooktop
Model: JP950WKWW
30" Built-In CleanDesign Electric Cooktop
Model: JP950WKWW
Color : White on White
Replaced By
Key Features
Electronic touch controls
Precise Digital Control System
Ceramic glass cooktop
Pan presence sensor
Pan size sensor
Control lock capability
Dual size ribbon elements
Precise Digital Control System™
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Electronic touch controls
Offer easy point-and-cook convenience
Precise Digital Control System
Delivers accurate control on the cooktop, ensuring even heating and less temperature variation
Ceramic glass cooktop
A smooth cooktop surface makes cleaning quick and easy
Pan presence sensor
Detects when a burner element is left "on" and automatically shuts it off when not in use
Pan size sensor
Adjusts the heating element automatically to fit the pan
Control lock capability
Provides the ability to lock controls, helping protect from unintentional activation
Dual size ribbon elements
Offers a convenient choice of using a 9" or 6" on one and a 8" or 5" on the other heating element, depending on the size of the pan
Precise Digital Control System™
Delivers accurate control on the cooktop, ensuring even heating and less temperature variation
Certifications
California Prop 65
Specifications
FEATURES
| Style | Smoothtop |
| Cooktop Burner Type | Smoothtop |
| 7" Heating Element(s) | 1 Ribbon (1,500W) |
| Cooktop Control Features | Pan Size Sensor |
| 6"/9" Dual Heating Element | 1 Ribbon (1,000/2,500W) |
| Cooktop Surface | Patterned White on Black Glass Ceramic |
| Indicator Lights | Surface Element "ON" |
| Control Type | Electronic Touch |
| 6" Heating Element(s) | 1 Ribbon w/ Warmer (1,200W) |
| 5"/8" Dual Heating Element | 1 Ribbon (1,000/2,200W) |
| Control Location | Right Side |
| Timer | Yes |
| Cooktop Burner Type | 4 Ribbon |
| Cooktop Control Features | Child Lock |
| Cooktop Control Features | Pan Presence Sensor |
| Indicator Lights | 4 Hot Surface |

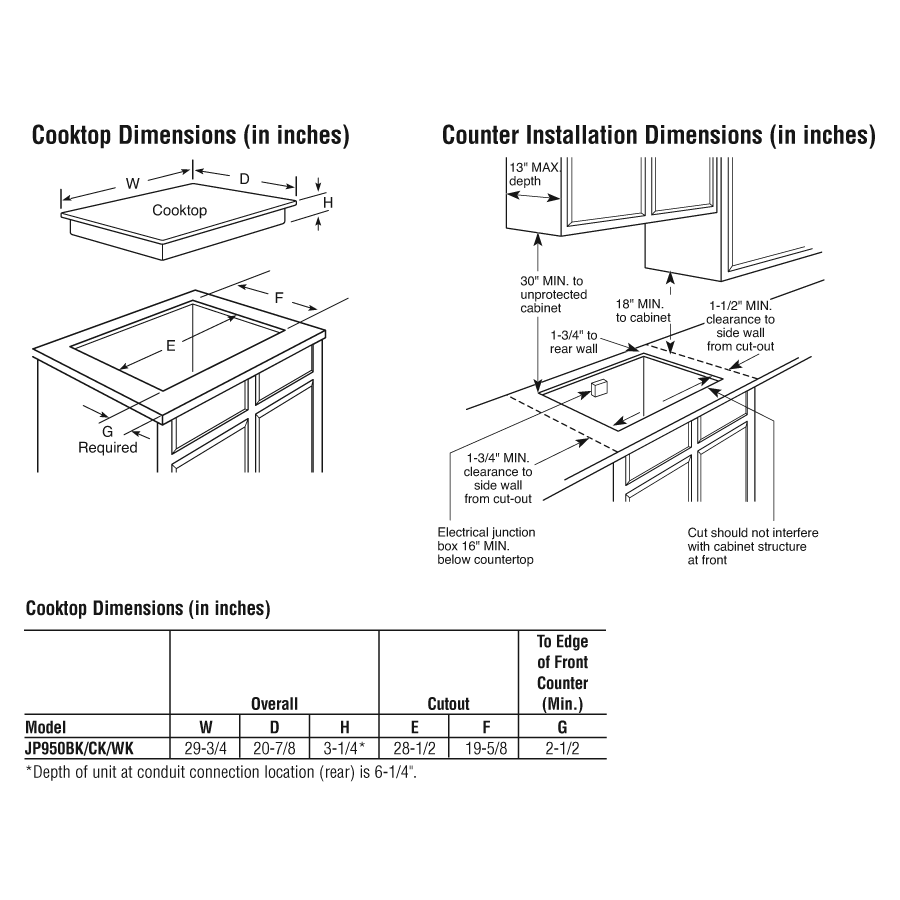

WEIGHTS & DIMENSIONS
| Cooktop Size | 30 in |
| Cabinet Width | 30 in |
| Overall Depth | 21 7/16 in |
| Overall Height | 3 1/4 in |
| Overall Width | 29 3/4 in |
| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.625 |
ACCESSORIES
| Optional Flush Mount Kit | JXFLMBB (Black - use with black glass cooktops with a white, bisque or black pattern) |
POWER / RATINGS
| KW Rating at 208V | 5.6 |
| KW Rating at 240V | 7.9 |
| Amp Rating at 208V | 30 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Frameless | Yes |
| Flushmount Capable | Yes |
| Color Appearance | White on White |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 3.25 in. |
| Length | 21.44 in. |
| Weight | 36 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 26.44 in. |
| Shipping Weight | 76 lbs. |
| Total of Shipping Weight | 76 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.2 ft³ |
| Dimensional Weight | 14.91 lbs. |
| Total of Cubes | 1.2 ft³ |
| Total of Dimensional Weight | 14.91 lbs. |
