30" Built-In CleanDesign Electric Cooktop - JP940TKWW
30" Built-In CleanDesign Electric Cooktop
Model: JP940TKWW
30" Built-In CleanDesign Electric Cooktop
Model: JP940TKWW
Color : True White
Replaced By
Key Features
Ceramic glass cooktop
Ribbon heating elements
Dual size ribbon elements
Frameless design
Dishwasher-safe knobs
Hot surface indicator lights
Control lock capability
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Ceramic glass cooktop
A smooth cooktop surface makes cleaning quick and easy
Ribbon heating elements
Provide powerful heat beneath a smooth glass surface to ensure even heat and fast warm-up times
Dual size ribbon elements
Offers a convenient choice of using a 9" or 6" on one and a 8" or 5" on the other heating element, depending on the size of the pan
Frameless design
A smooth and seamless cooktop surface makes cleaning quick and easy
Dishwasher-safe knobs
Feature a robust construction for safe and easy cleaning
Hot surface indicator lights
Illuminate when the cooking surface is active and hot, adding convenience and safe caution

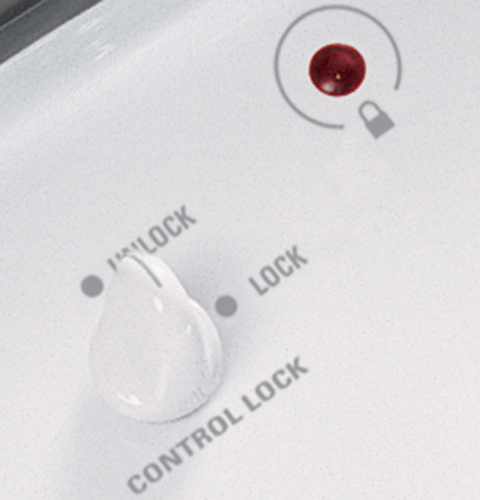

Control lock capability
Provides the ability to lock controls, helping protect from unintentional activation
Certifications
California Prop 65
Specifications

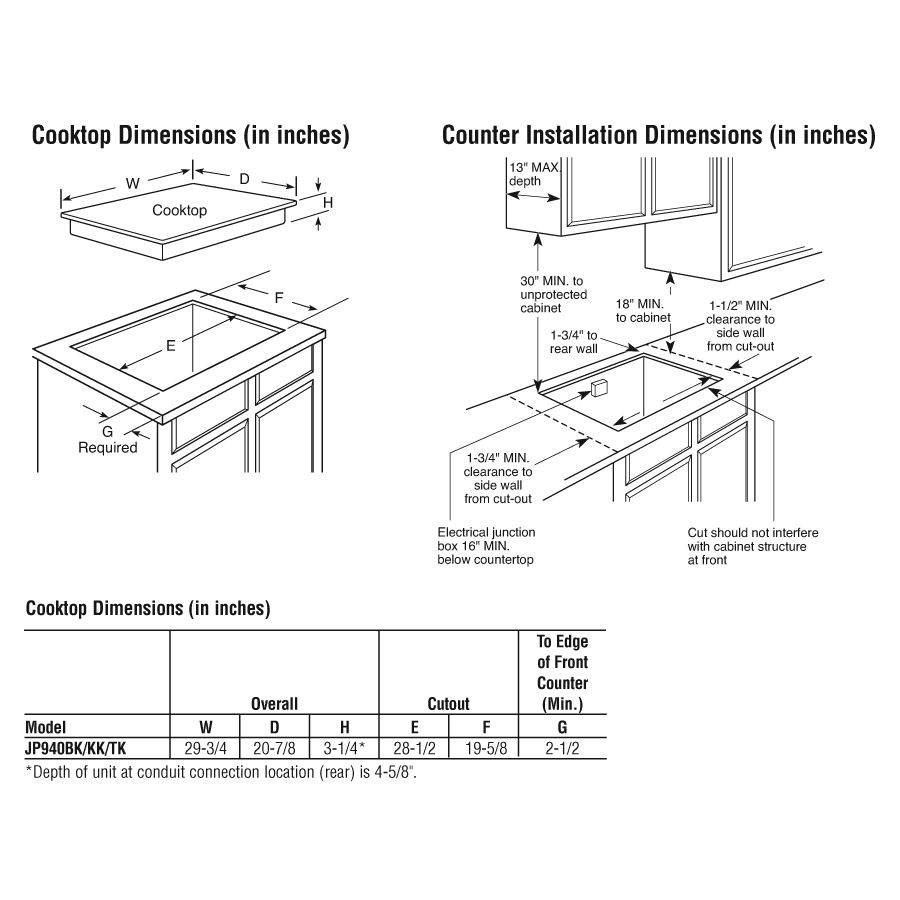

WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Cooktop Size | 30 in |
| Overall Depth | 21 7/16 in |
| Overall Height | 3 1/4 in |
| Overall Width | 29 3/4 in |
| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.625 |
FEATURES
| Cooktop Burner Type | Smoothtop |
| Style | Smoothtop |
| Cooktop Control Features | Child Lock |
| 6"/9" Dual Heating Element | 1 Ribbon (1,000/2,500W) |
| Cooktop Surface | True White Ceramic Glass |
| Indicator Lights | Surface Element "ON" |
| Control Type | Infinite Heat Rotary |
| 6" Heating Element(s) | 1 Ribbon (1,200W) |
| 5"/8" Dual Heating Element | 1 Ribbon ( 800/1,900W) |
| Control Location | Right Side |
| 8" Heating Element (s) | 1 Ribbon (2,000 watt) |
| Dishwasher Safe Knobs | Yes |
| Cooktop Burner Type | 5 Ribbon |
| Indicator Lights | 4 Hot Surface |
ACCESSORIES
| Optional Flush Mount Kit | JXFLMTW (True White) |
POWER / RATINGS
| KW Rating at 208V | 5.7 |
| KW Rating at 240V | 7.6 |
| Amp Rating at 208V | 30 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Frameless | Yes |
| Flushmount Capable | Yes |
| Color Appearance | True White |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 3.25 in. |
| Length | 21.44 in. |
| Weight | 33 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 26.44 in. |
| Shipping Weight | 73 lbs. |
| Total of Shipping Weight | 73 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.2 ft³ |
| Dimensional Weight | 14.91 lbs. |
| Total of Cubes | 1.2 ft³ |
| Total of Dimensional Weight | 14.91 lbs. |
