30" Built-In CleanDesign Electric Cooktop - JP940BKBB
30" Built-In CleanDesign Electric Cooktop
Model: JP940BKBB
30" Built-In CleanDesign Electric Cooktop
Model: JP940BKBB
Color : Black on Black
Replaced By
Key Features
Ceramic glass cooktop
Ribbon heating elements
Frameless design
Dual size ribbon elements
Dishwasher-safe knobs
Control lock capability
Hot surface indicator lights
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Ceramic glass cooktop
A smooth cooktop surface makes cleaning quick and easy
Ribbon heating elements
Provide powerful heat beneath a smooth glass surface to ensure even heat and fast warm-up times
Frameless design
A smooth and seamless cooktop surface makes cleaning quick and easy
Dual size ribbon elements
Offers a convenient choice of using a 9" or 6" on one and a 8" or 5" on the other heating element, depending on the size of the pan
Dishwasher-safe knobs
Feature a robust construction for safe and easy cleaning
Control lock capability
Provides the ability to lock controls, helping protect from unintentional activation
Hot surface indicator lights
Illuminate when the cooking surface is active and hot, adding convenience and safe caution
Certifications
California Prop 65
Specifications

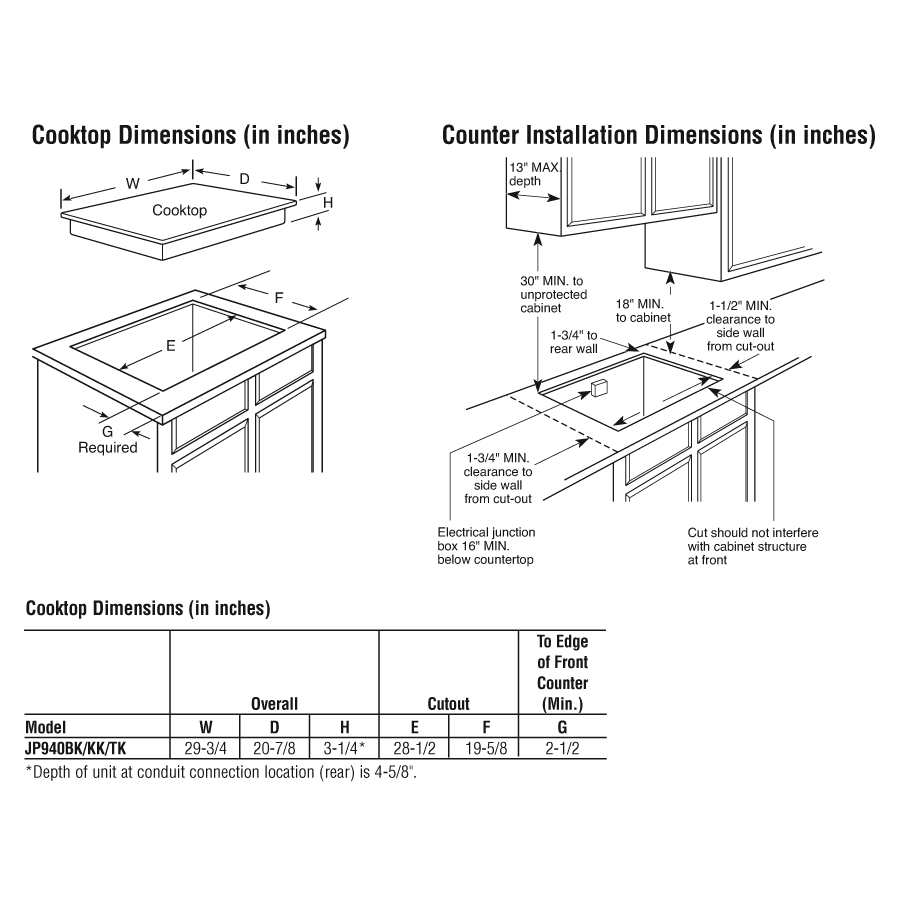

WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Cooktop Size | 30 in |
| Overall Depth | 21 7/16 in |
| Overall Height | 3 1/4 in |
| Overall Width | 29 3/4 in |
| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.625 |
FEATURES
| Style | Smoothtop |
| Cooktop Burner Type | Smoothtop |
| Cooktop Control Features | Child Lock |
| 6"/9" Dual Heating Element | 1 Ribbon (1,000/2,500W) |
| Cooktop Surface | Patterned Black on Black Glass Ceramic |
| Indicator Lights | Surface Element "ON" |
| Control Type | Infinite Heat Rotary |
| 6" Heating Element(s) | 1 Ribbon (1,200W) |
| 5"/8" Dual Heating Element | 1 Ribbon ( 800/1,900W) |
| Control Location | Right Side |
| 8" Heating Element (s) | 1 Ribbon (2,000 watt) |
| Dishwasher Safe Knobs | Yes |
| Cooktop Burner Type | 5 Ribbon |
| Indicator Lights | 4 Hot Surface |
ACCESSORIES
| Optional Flush Mount Kit | JXFLMBB (Black - use with black glass cooktops with a white, bisque or black pattern) |
POWER / RATINGS
| KW Rating at 208V | 5.7 |
| KW Rating at 240V | 7.6 |
| Amp Rating at 208V | 30 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Frameless | Yes |
| Flushmount Capable | Yes |
| Color Appearance | Black on Black |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 3.25 in. |
| Length | 21.44 in. |
| Weight | 33 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 8.25 in. |
| Shipping Length | 26.44 in. |
| Shipping Weight | 73 lbs. |
| Total of Shipping Weight | 73 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.2 ft³ |
| Dimensional Weight | 14.91 lbs. |
| Total of Cubes | 1.2 ft³ |
| Total of Dimensional Weight | 14.91 lbs. |
