GE 30" Built-In Knob Control Electric Cooktop
Model: JP3530TJWW
Product Video
Color : True White
Replaced By
Key Features
Fit Guarantee
Four radiant cooking elements
9"/6" Power Boil element
8" Power Boil element
Keep Warm setting
Melt Setting
Control lock capability
Hot surface indicator lights
Description
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Fit Guarantee

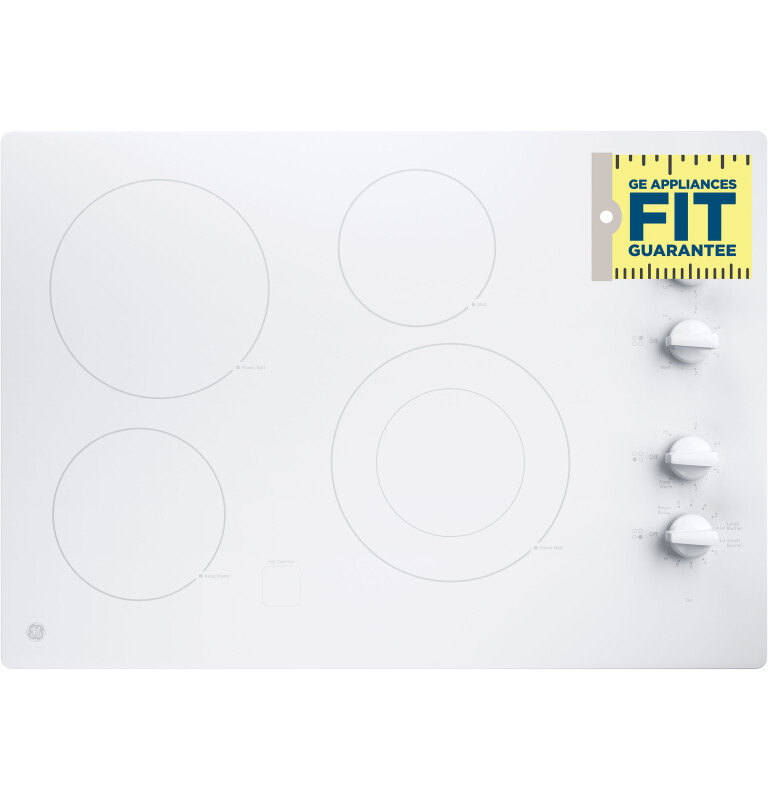

Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
9"/6" Power Boil element
Use different pan sizes on this single, 3,100-watt flexible element that produces rapid powerful heat
8" Power Boil element
Get rapid heat from this powerful 2,500-watt element
Keep Warm setting
Keep food warm with GE’s lowest heat setting or boil water in minutes with this fully functional 6” element
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Control lock capability
Protects against unintended activation
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active
Certifications
ADA Compliant
California Prop 65
UL
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Parts (Entire Appliance) | 1 Year |
| Labor (Entire Appliance) | 1 Year |
WEIGHTS & DIMENSIONS
| Overall Height | 4 in |
| Cooktop Size | 30 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 43 lb |
| Net Weight | 37 lb |
| Overall Depth | 20 7/8 in |
| Overall Width | 29 3/4 in |

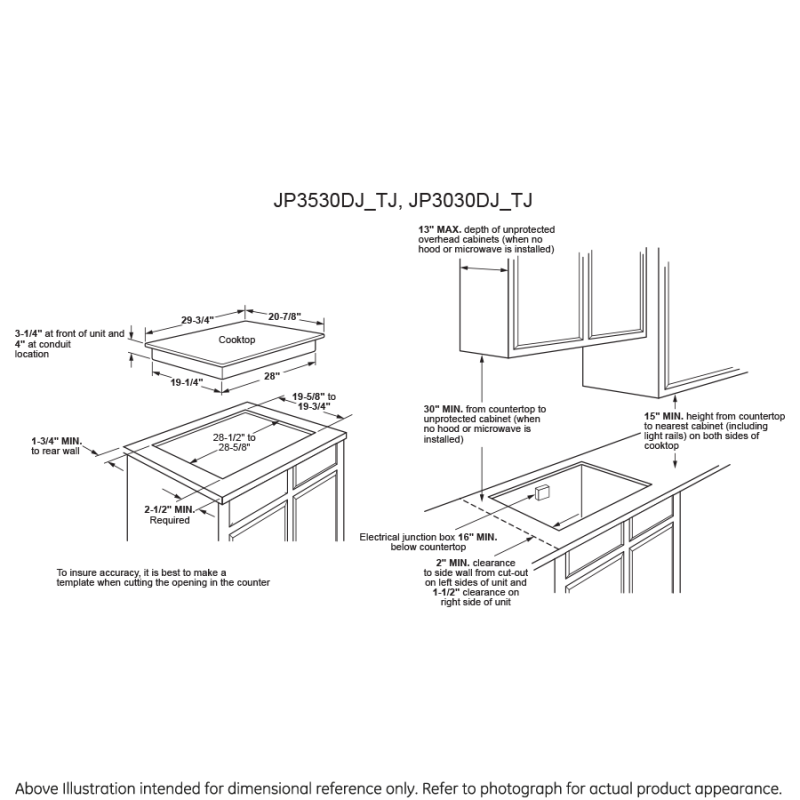

| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.625 |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 4 in. |
| Length | 20.88 in. |
| Weight | 37 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 9 in. |
| Shipping Length | 25.88 in. |
| Shipping Weight | 77 lbs. |
| Total of Shipping Weight | 77 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.44 ft³ |
| Dimensional Weight | 17.87 lbs. |
| Total of Cubes | 1.44 ft³ |
| Total of Dimensional Weight | 17.87 lbs. |
FEATURES
| Dishwasher Safe Knobs | Yes |
| Filler trim kit | JXTR32W |
| Cooktop Burner Type | Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Element - Left Front | 7" 1500W |
| Element - Right Front | 9"/6" 3100W Power Boil |
| Control Location | Right Side |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Surface | True White Ceramic Glass |
| Element - Left Rear | 8" 2500W Power Boil |
| Control Type | Knob (Infinite switch) |
| Element - Right Rear | 6" 1200W |
| Cooktop Control Features | Keep-Warm Setting |
| Indicator Lights | Red |
| Indicator Lights | Surface Element "ON" |
| Cooktop Control Features | Melt Setting |
| Cooktop Burner Type | 4 Ribbon |
| Cooktop Control Features | Control Lock Capability |
| Indicator Lights | 4 Hot Surface |
POWER / RATINGS
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 8.3 |
| Max. Current Draw (Amps) at 240V | 34.6 |
| Max. Connected Load (kW) at 208V | 6.2 |
| Recommended Circuit Breaker (Amps) at 208V | 30 |
| Max. Current Draw (Amps) at 208V | 30.0 |
APPEARANCE
| Color Appearance | True White |
| Frameless | Yes |
| Control Knobs | Gloss White |
