Café Series 30" Built-in Knob Control Electric Cooktop - CP9530SJSS
Café Series 30" Built-in Knob Control Electric Cooktop
Model: CP9530SJSS










Product Video

Café Series 30" Built-in Knob Control Electric Cooktop
Model: CP9530SJSS
Replaced By
Key Features
Five radiant cooking elements
2nd Power Boil Dual-Ring Element
Melt Setting
Control lock capability
White LED backlit knobs with beveled edge black glass surface
Hot surface indicator lights
9"/7"/5" Power Boil element
Fit Guarantee
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Five radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
2nd Power Boil Dual-Ring Element
Use different pan sizes on this 2,200-watt flexible element
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Control lock capability
Protects against unintended activation
White LED backlit knobs with beveled edge black glass surface
Enjoy a premium look with the convenience of knob controls
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
9"/7"/5" Power Boil element
Use different pan sizes on this single, 3,000-watt flexible element that produces rapid powerful heat

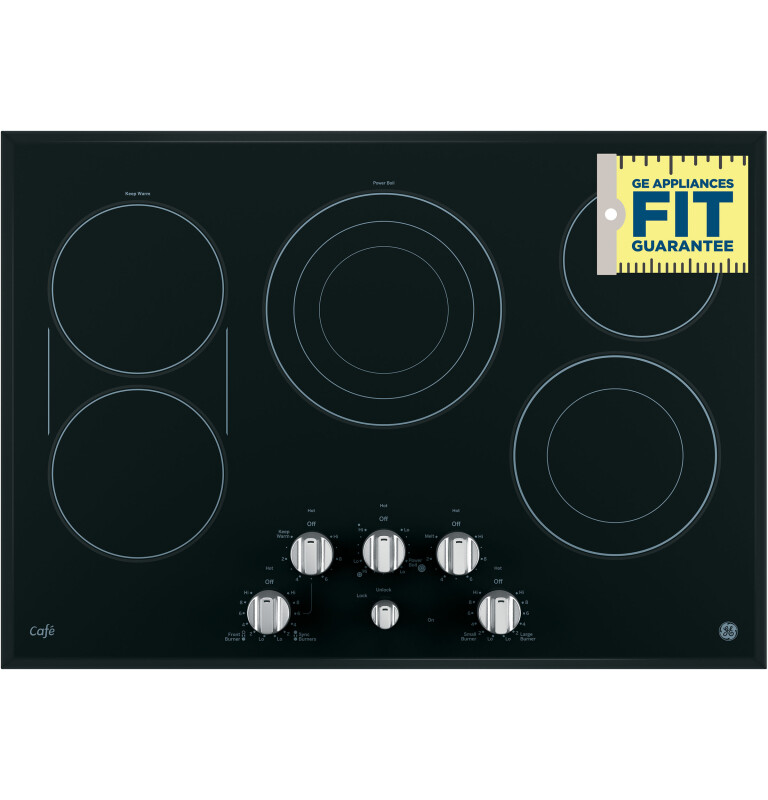

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
SyncBurners
Control two 7” elements simultaneously to evenly heat large cookware or griddles

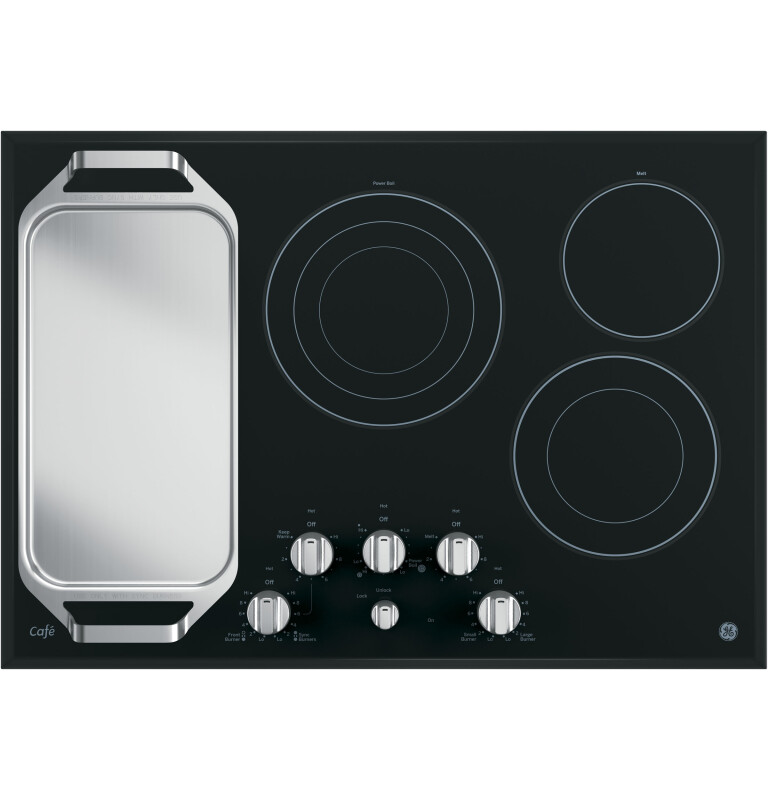

Stainless steel clad aluminum griddle
Achieve even results with this lightweight griddle, tailored to fit GE SyncBurners
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Certifications
ADA Compliant
California Prop 65
UL
Specifications
FEATURES
| Dishwasher Safe Knobs | Yes |
| Filler trim kit | JXTR32B |
| Cooktop Burner Type | Smoothtop |
| Melt Setting | Yes |
| Element - Left Front | 7" 1500W |
| Indicator Lights | Surface Element "ON" |
| Element - Right Front | 8"/5" 2200W Dual |
| Control Location | Front Center |
| Cooktop Surface | Black Ceramic Glass with Beveled Edge |
| Cooktop Control Features | Sync-Burners Capability |
| Control Type | Knob (Infinite switch) |
| Element - Left Rear | 7" 1500W |
| Element - Center | 9"/7"/5" 3000W Power Boil |
| Element - Right Rear | 6" 1200W |
| Griddle | Included |
| Product Type | Cooktop |
| Indicator Lights | Blue/Red |
| Cooktop Control Features | Keep-Warm Setting |
| Cooktop Burner Type | 5 Ribbon |
| Cooktop Control Features | Control Lock Capability |
| Cooktop Control Features | Melt Setting |
| Indicator Lights | 5 Hot Surface |
POWER / RATINGS
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 9.4 |
| Max. Current Draw (Amps) at 240V | 39.2 |
| Max. Connected Load (kW) at 208V | 7.1 |
| Recommended Circuit Breaker (Amps) at 208V | 40 |
| Max. Current Draw (Amps) at 208V | 33.9 |
WEIGHTS & DIMENSIONS
| Cooktop Size | 30 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 48 lb |
| Net Weight | 42 lb |
| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.625 |
| Overall Depth | 20 7/8 in |
| Overall Height | 5 9/16 in |
| Overall Width | 29 3/4 in |
APPEARANCE
| Color Appearance | Stainless Steel on Black |
| Frameless | Yes |
| Control Knobs | Stainless Steel Appearance |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 5.56 in. |
| Length | 20.88 in. |
| Weight | 42 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 10.56 in. |
| Shipping Length | 25.88 in. |
| Shipping Weight | 48 lbs. |
| Total of Shipping Weight | 48 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 2 ft³ |
| Dimensional Weight | 24.85 lbs. |
| Total of Cubes | 2 ft³ |
| Total of Dimensional Weight | 24.85 lbs. |
Warranty
| Parts (Entire Appliance) | 1 Year |
| Labor (Entire Appliance) | 1 Year |
