ULTRA GREEN ZB Series 110 CFM Multi-Speed Ceiling Bathroom Exhaust Fan with Motion Sensing - ZB110M
ULTRA GREEN ZB Series 110 CFM Multi-Speed Ceiling Bathroom Exhaust Fan with Motion Sensing
Model: ZB110M
ULTRA GREEN ZB Series 110 CFM Multi-Speed Ceiling Bathroom Exhaust Fan with Motion Sensing
Model: ZB110M
Color : White
Key Features
110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Motion sensor automatically turns fan on when you enter the room and off when you leave
Snap-in housing, snap-in blower, and a inside-out mounting duct connector for the fastest, easiest, most universal installation
Mounting Frame fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy
Title 24 compliant
UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) and for use in insulated ceilings (type IC)
Powerful enough for rooms up to 100 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Motion sensor automatically turns fan on when you enter the room and off when you leave
Snap-in housing, snap-in blower, and a inside-out mounting duct connector for the fastest, easiest, most universal installation
Mounting Frame fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy
Title 24 compliant
UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only) and for use in insulated ceilings (type IC)
Powerful enough for rooms up to 100 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
<0.3 Sones for Ultra quiet performance, you might not notice it's on
ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
ENERGY STAR® Certified to meet or exceed federal guidelines for energy efficiency for year-round energy and money savings
Specifications
Product Details
| CFM | 110 |
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13.125 |
| Grille Width | 14 |

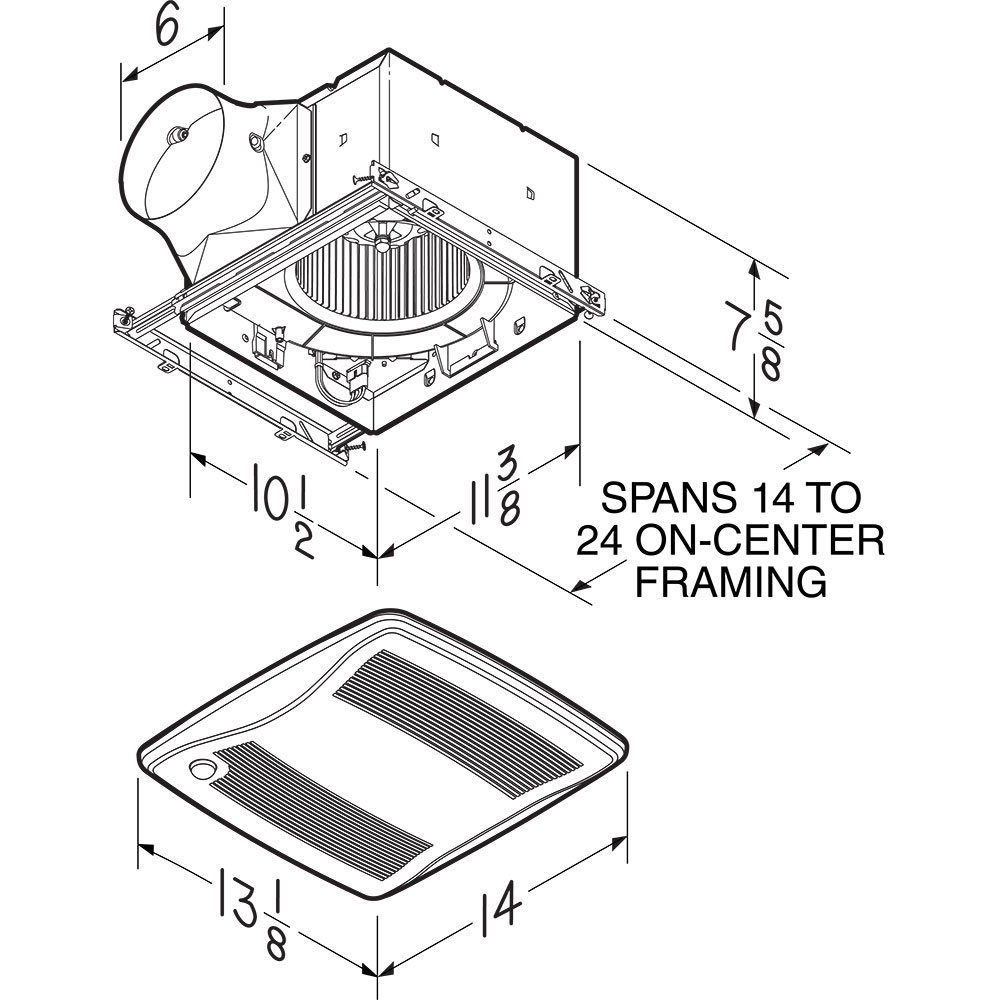

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.3 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | Yes |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 14 in. |
| Height | 10.5 in. |
| Length | 7.63 in. |
| Weight | - |
| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 19 in. |
| Shipping Height | 15.5 in. |
| Shipping Length | 12.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.65 ft³ |
| Dimensional Weight | 6.75 lbs. |
| Total of Cubes | 0.65 ft³ |
| Total of Dimensional Weight | 6.75 lbs. |
