Exhaust Ventilation Fan Finish Pack, 50 CFM - XB50F
This product has been discontinued by the manufacture and is no longer available.
Exhaust Ventilation Fan Finish Pack, 50 CFM
Model: XB50F
Specifications
Specifications
Product Details
| CFM | 50 |
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 14 |

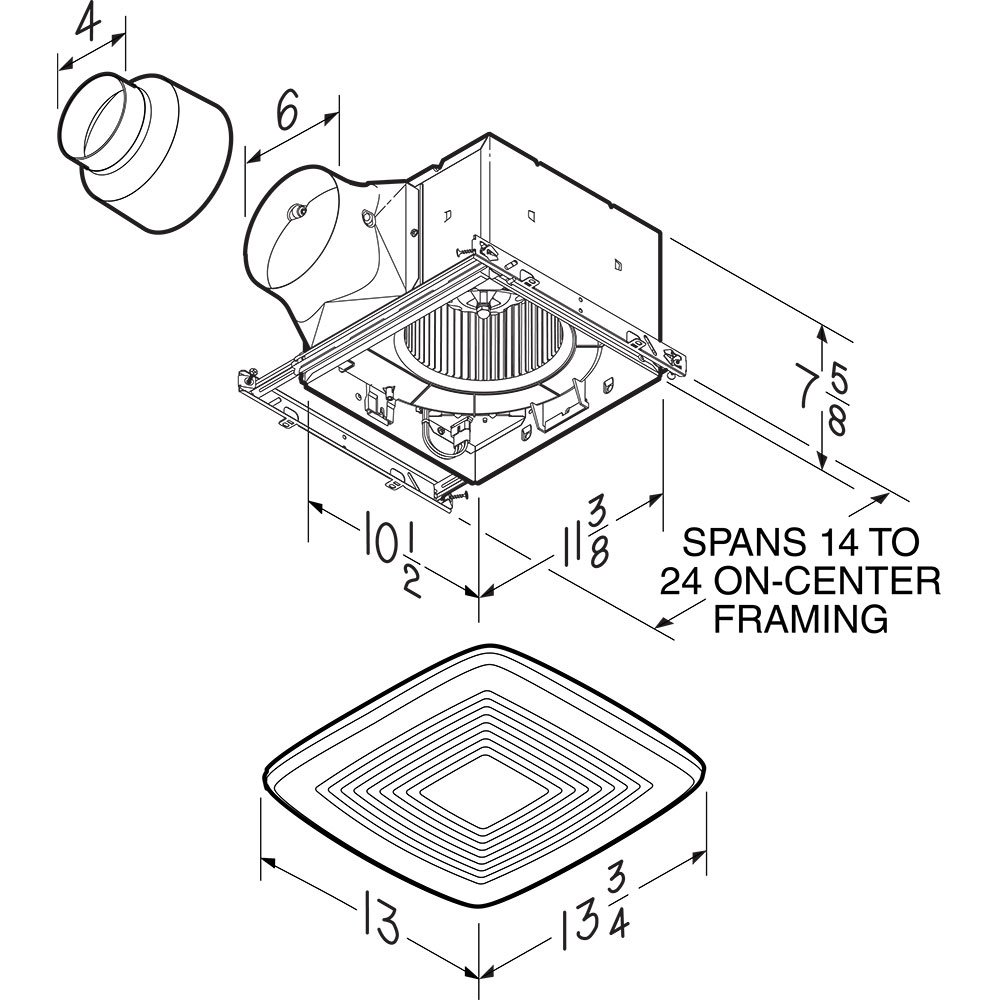

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.3 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 45 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 14 in. |
| Height | 10.5 in. |
| Length | 7.63 in. |
| Weight | - |
| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 19 in. |
| Shipping Height | 15.5 in. |
| Shipping Length | 12.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.65 ft³ |
| Dimensional Weight | 6.75 lbs. |
| Total of Cubes | 0.65 ft³ |
| Total of Dimensional Weight | 6.75 lbs. |
