NuTone 80 CFM Ventilation Fan - RN80
NuTone 80 CFM Ventilation Fan
Model: RN80
NuTone 80 CFM Ventilation Fan
Model: RN80
Color : White
Key Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fastest, easiest, most universal installation
Mounting Frame fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy
UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
Powerful enough for rooms up to 75 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Snap-in housing, snap-in blower, and an inside-out mounting duct connector for the fastest, easiest, most universal installation
Mounting Frame fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy
UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
Powerful enough for rooms up to 75 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
<0.3 Sones for Ultra quiet performance, you might not notice it's on
ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws
ENERGY STAR® Certified to help lower utility bills
Specifications
Product Details
| CFM | 80 |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 14 |

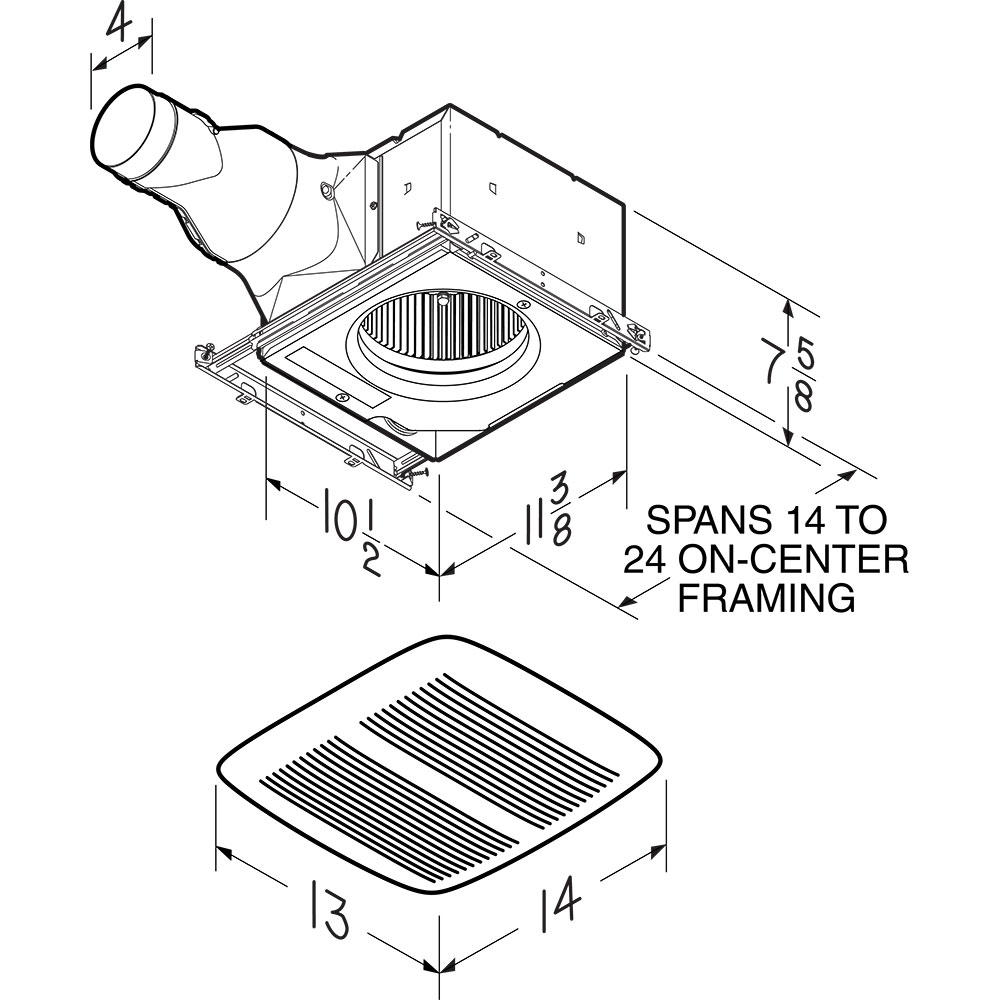

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.3 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 14 in. |
| Height | 10.5 in. |
| Length | 7.63 in. |
| Weight | - |
| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 19 in. |
| Shipping Height | 15.5 in. |
| Shipping Length | 12.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.65 ft³ |
| Dimensional Weight | 6.75 lbs. |
| Total of Cubes | 0.65 ft³ |
| Total of Dimensional Weight | 6.75 lbs. |
