QT DC 110-130-150 Selectable CFM, Humidity Sensing Housing Pack, <0.3-0.4-0.7 Sones - QTXEDCSH
QT DC 110-130-150 Selectable CFM, Humidity Sensing Housing Pack, <0.3-0.4-0.7 Sones
Model: QTXEDCSH
QT DC 110-130-150 Selectable CFM, Humidity Sensing Housing Pack, <0.3-0.4-0.7 Sones
Model: QTXEDCSH
Color : null
Key Features
Selectable CFM with speeds of 110-130-150
Hanger bars to position housing anywhere on center joists
Unique patented spacers for mounting to engineered "I" joists
UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
Powerful enough for rooms up to 140 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Selectable CFM with speeds of 110-130-150
Hanger bars to position housing anywhere on center joists
Unique patented spacers for mounting to engineered "I" joists
UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
Powerful enough for rooms up to 140 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
<0.3-0.4-0.7 sones for ultra quiet performance, you might not notice it's on
Sensaire™ humidity sensing technology, senses humidity up to 4X faster than the competition
ENERGY STAR® Certified
Specifications
Product Details
| CFM | 110-130-150 |
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |

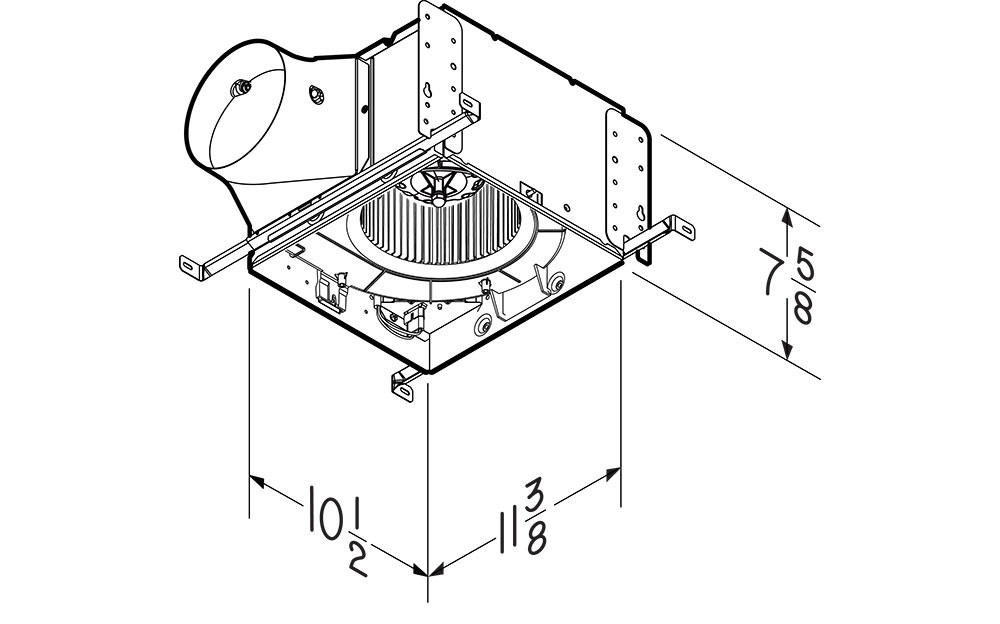

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.3 |
| UL Listed | Yes |
| Humidity Sensing | Yes |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Recommended Room Size (Sq Ft) | 105 + |
| Rated Amps | 0.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Sound Level (Sones) | <0.3-0.4-0.7 |
Dimensions & Weight
| Width | 11.38 in. |
| Height | 10.5 in. |
| Length | 7.63 in. |
| Weight | - |
| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 16.38 in. |
| Shipping Height | 15.5 in. |
| Shipping Length | 12.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.53 ft³ |
| Dimensional Weight | 5.49 lbs. |
| Total of Cubes | 0.53 ft³ |
| Total of Dimensional Weight | 5.49 lbs. |
