Exhaust Ventilation Finish Pack, 110-130-150 Selectable CFM - QTXE110150DCF
Exhaust Ventilation Finish Pack, 110-130-150 Selectable CFM
Model: QTXE110150DCF
Exhaust Ventilation Finish Pack, 110-130-150 Selectable CFM
Model: QTXE110150DCF
Color : White
Key Features
Selectable CFM with speeds of 110-130-150
Hanger bars to position housing anywhere on center joists
Unique patented spacers for mounting to engineered "I" joists
UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
<0.3-0.4-0.7 sones for ultra quiet performance, you might not notice it's on
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Selectable CFM with speeds of 110-130-150
Hanger bars to position housing anywhere on center joists
Unique patented spacers for mounting to engineered "I" joists
UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
<0.3-0.4-0.7 sones for ultra quiet performance, you might not notice it's on
Housing and finish packs sold separately
ENERGY STAR® Certified
Specifications
Product Details
| CFM | 110-130-150 |
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 13.75 |

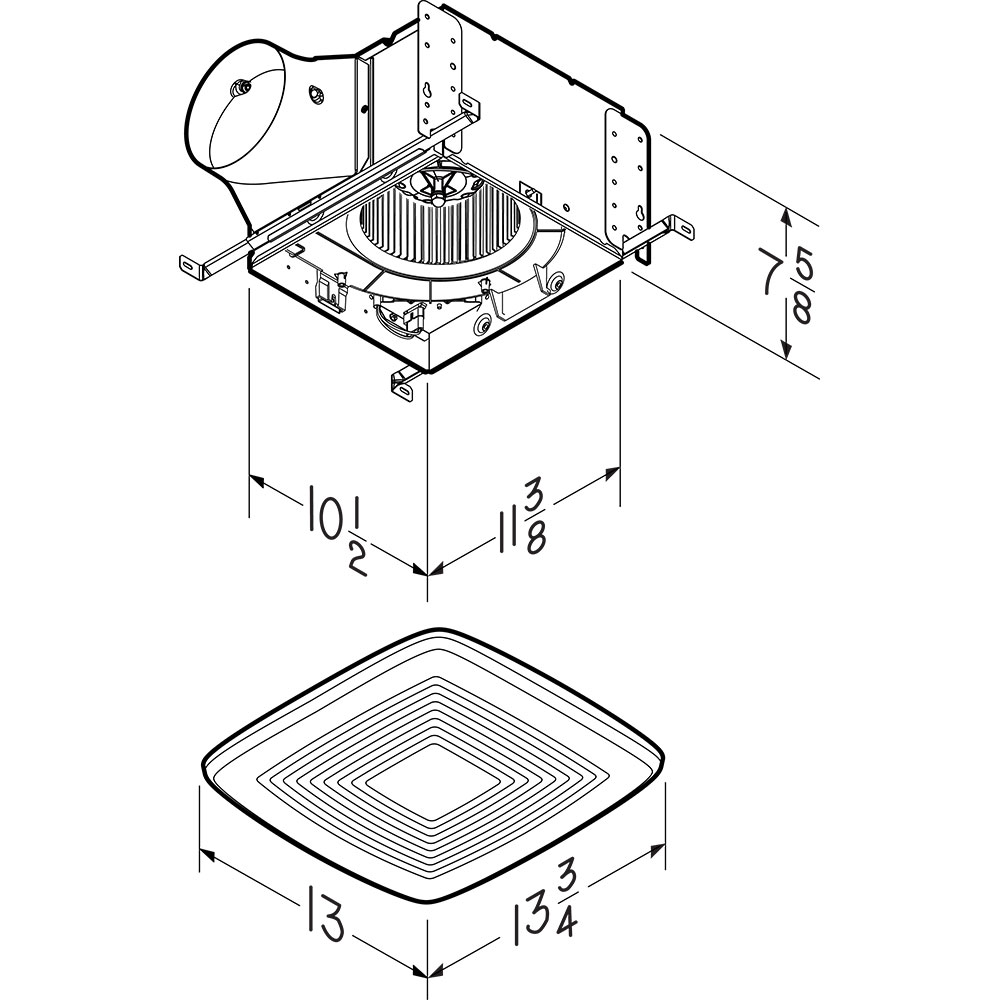

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.7 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Rated Amps | 0.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 13.75 in. |
| Height | 10.5 in. |
| Length | 7.63 in. |
| Weight | - |
| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 18.75 in. |
| Shipping Height | 15.5 in. |
| Shipping Length | 12.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.64 ft³ |
| Dimensional Weight | 6.63 lbs. |
| Total of Cubes | 0.64 ft³ |
| Total of Dimensional Weight | 6.63 lbs. |
