QTXE Series 80 CFM Ventilation Fan Light, 36W Fluorescent Lighting, 4W Nightlight, 0.3 Sones - QTXE080FLT
QTXE Series 80 CFM Ventilation Fan Light, 36W Fluorescent Lighting, 4W Nightlight, 0.3 Sones
Model: QTXE080FLT
QTXE Series 80 CFM Ventilation Fan Light, 36W Fluorescent Lighting, 4W Nightlight, 0.3 Sones
Model: QTXE080FLT
Color : White
Key Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Includes hanger bar system for fast, flexible installation for all types of construction
Fits 2" x 8" ceiling construction
UL Listed for use over bathtubs or showers when connected to a GFCI protected branch circuit
Features 6" ducting for superior performance
HVI certified
Can be used to comply with CA Title 24
Powerful enough for rooms up to 75 sq. ft.
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Includes hanger bar system for fast, flexible installation for all types of construction
Fits 2" x 8" ceiling construction
UL Listed for use over bathtubs or showers when connected to a GFCI protected branch circuit
Features 6" ducting for superior performance
HVI certified
Can be used to comply with CA Title 24
Powerful enough for rooms up to 75 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
0.3 Sones for Ultra quiet performance, you might not notice it's on
ENERGY STAR® Certified for energy efficient operation
Specifications
Product Details
| CFM | 80 |
| Duct Size | 6 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 13.75 |

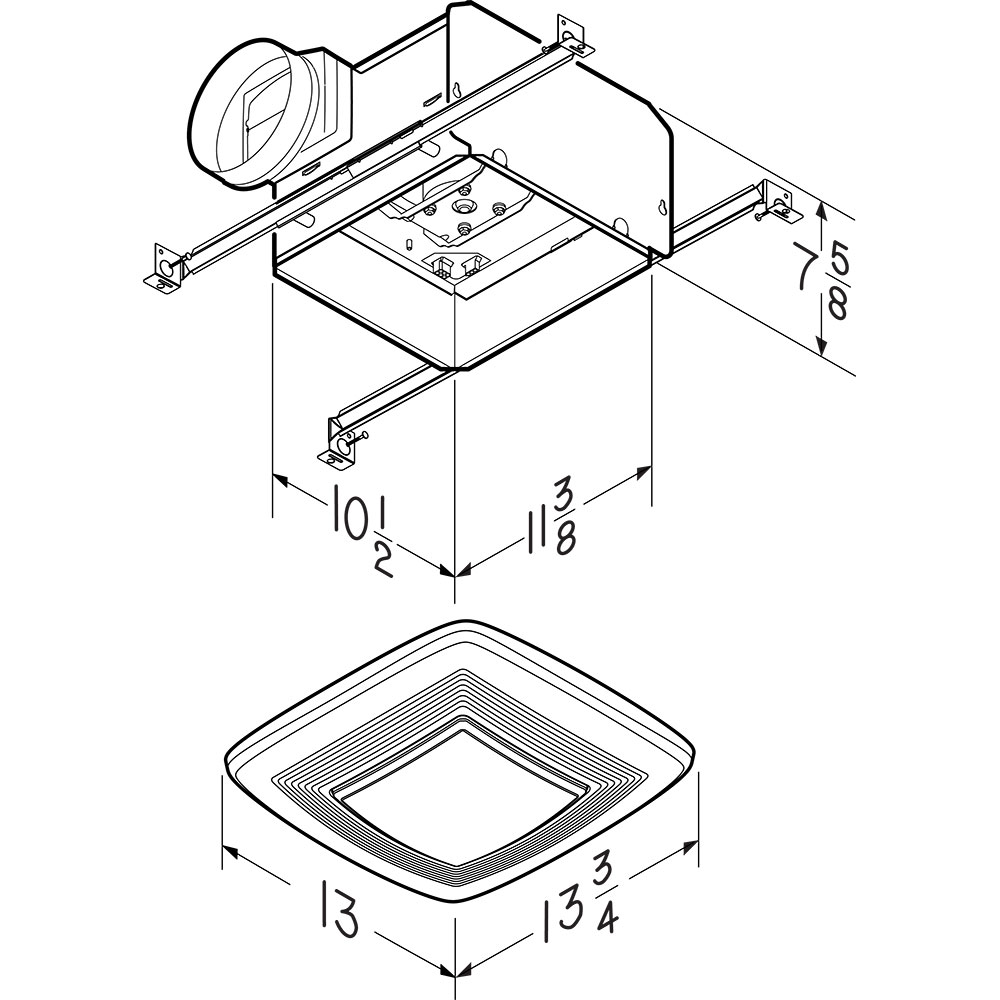

| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Sound Level (Sones) | 0.3 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 2 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | Yes |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.8 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | GU24, C7 |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | Yes |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 13.75 in. |
| Height | 10.5 in. |
| Length | 7.63 in. |
| Weight | - |
| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
| Housing Dimensions | 10-1/2" x 11-3/8" x 7-5/8" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 18.75 in. |
| Shipping Height | 15.5 in. |
| Shipping Length | 12.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.64 ft³ |
| Dimensional Weight | 6.63 lbs. |
| Total of Cubes | 0.64 ft³ |
| Total of Dimensional Weight | 6.63 lbs. |
