NuTone LoProfile Series 80 CFM Ventilation Fan Project Finish Pack with Grille, 1.0 Sones - LPN80F
NuTone LoProfile Series 80 CFM Ventilation Fan Project Finish Pack with Grille, 1.0 Sones
Model: LPN80F
NuTone LoProfile Series 80 CFM Ventilation Fan Project Finish Pack with Grille, 1.0 Sones
Model: LPN80F
Color : White
Key Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Compatible with Radiation Damper RDF1 which helps prevent flame and heat from spreading to other areas in multi-level buildings
Fits in 2x4 ceiling or wall construction
Plug-in, permanently lubricated motor - engineered for continuous operation
Dynamically balanced centrifugal blower wheel for quiet, efficient performance
Finish pack includes blower assembly and grille
Ideal for multi-family applications
Powerful enough for rooms up to 75 sq. ft.
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Compatible with Radiation Damper RDF1 which helps prevent flame and heat from spreading to other areas in multi-level buildings
Fits in 2x4 ceiling or wall construction
Plug-in, permanently lubricated motor - engineered for continuous operation
Dynamically balanced centrifugal blower wheel for quiet, efficient performance
Finish pack includes blower assembly and grille
Ideal for multi-family applications
Powerful enough for rooms up to 75 sq. ft.

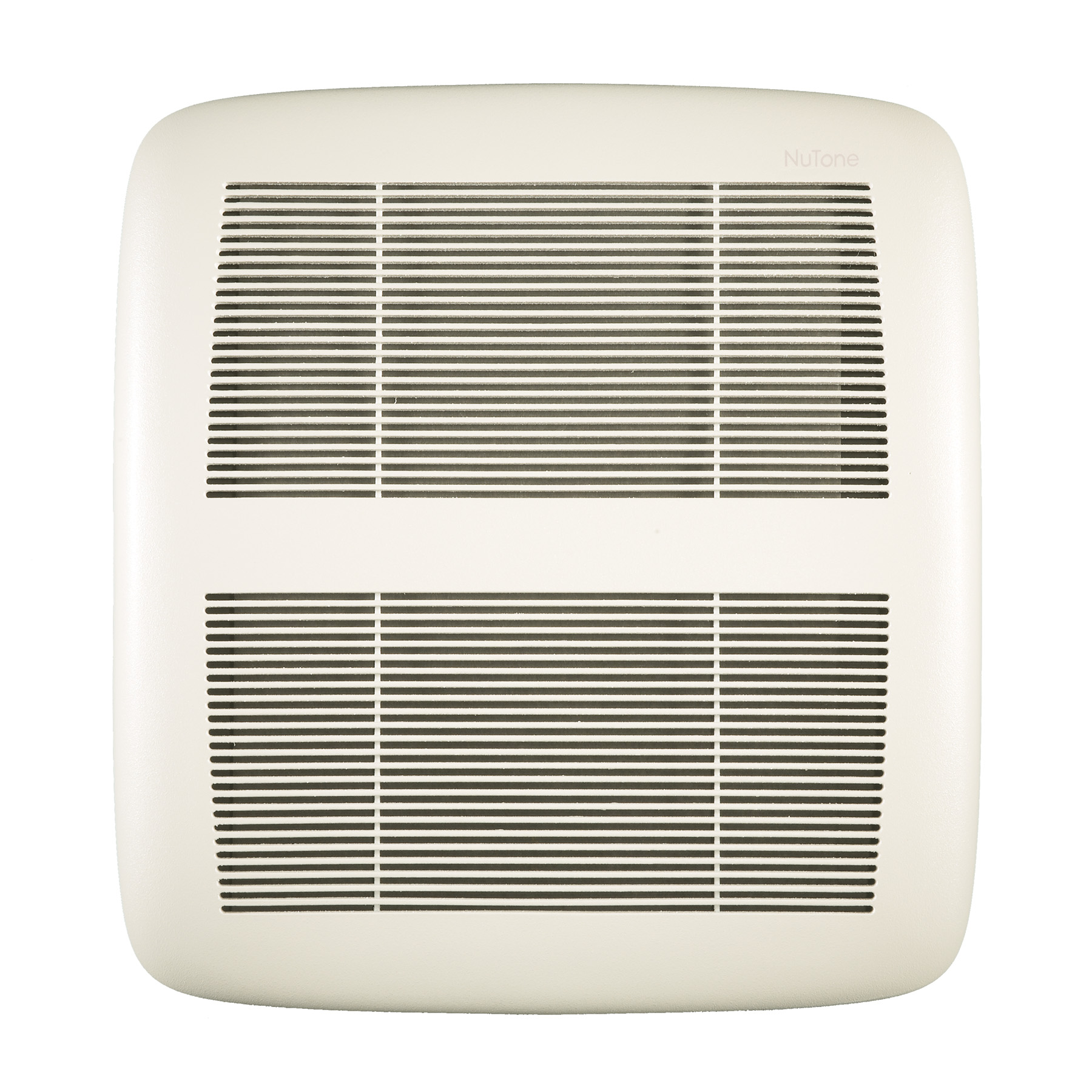

Brighter white grilles blend in to match most common ceiling paint
1.0 Sones for Ultra quiet performance, you might not notice it's on
ENERGY STAR® Certified for efficient operation and lower utility bills
Specifications
Product Details
| CFM | 80 |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 14 |

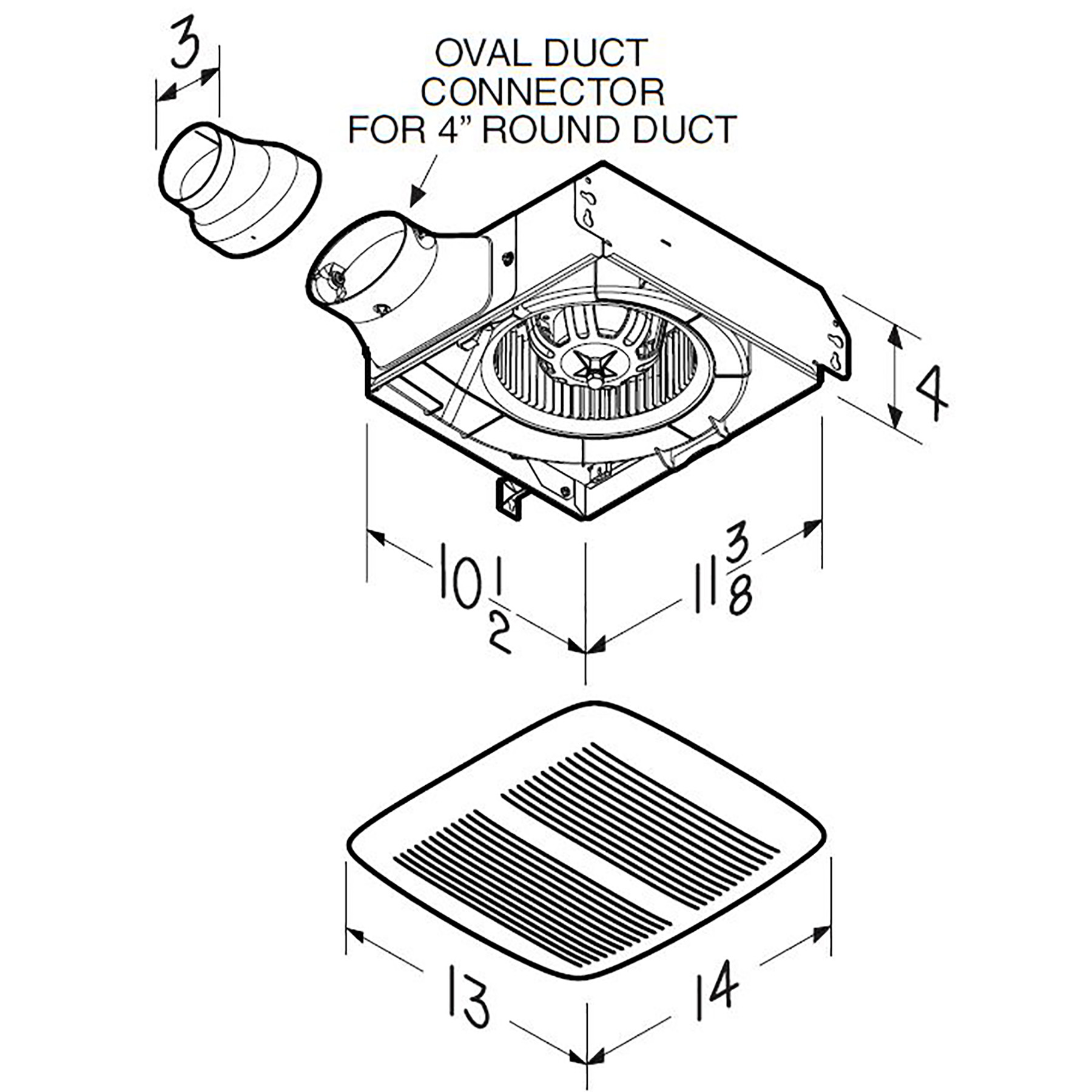

| Housing Dimensions | 10-1/2" x 11-3/8" x 4" |
| Sound Level (Sones) | 1 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Minimum Construction Space Required | 2" x 4" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 14 in. |
| Height | 10.5 in. |
| Length | 4 in. |
| Weight | - |
| Housing Dimensions | 10-1/2" x 11-3/8" x 4" |
| Housing Dimensions | 10-1/2" x 11-3/8" x 4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 19 in. |
| Shipping Height | 15.5 in. |
| Shipping Length | 9 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.34 ft³ |
| Dimensional Weight | 3.54 lbs. |
| Total of Cubes | 0.34 ft³ |
| Total of Dimensional Weight | 3.54 lbs. |
