LOSONE SELECT™ Ventilation Fan; 3452 CFM Straight Through, 14.5 Sones; 3696 CFM Right Angle, 14.2 Sones - L3500EXL
LOSONE SELECT™ Ventilation Fan; 3452 CFM Straight Through, 14.5 Sones; 3696 CFM Right Angle, 14.2 Sones
Model: L3500EXL
LOSONE SELECT™ Ventilation Fan; 3452 CFM Straight Through, 14.5 Sones; 3696 CFM Right Angle, 14.2 Sones
Model: L3500EXL
Color : White Painted Enamel
Key Features
14.5 Audible Sones for privacy while using your bathroom
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Ducted horizontally or vertically, or in-line with separate adapter
Not for use over tub or shower
Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)
UL Listed and cUL listed for your safety and protection
AMCA licensed for air and sound performance
Powerful enough for rooms up to () sq. ft.
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
14.5 Audible Sones for privacy while using your bathroom
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Ducted horizontally or vertically, or in-line with separate adapter
Not for use over tub or shower
Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)
UL Listed and cUL listed for your safety and protection
AMCA licensed for air and sound performance
Powerful enough for rooms up to () sq. ft.
Painted white enamel metal grille
Heavy-gauge galvanized steel housing resists corrosion
Single, impact-resistant centrifugal blower wheel
3452 CFM, Whole home or Commercial Ventilation
Specifications
Product Details
| CFM | 3452 |
| ENERGY STAR® certified | No |
| Grille Length | 18.375 |
| Grille Width | 47.25 |

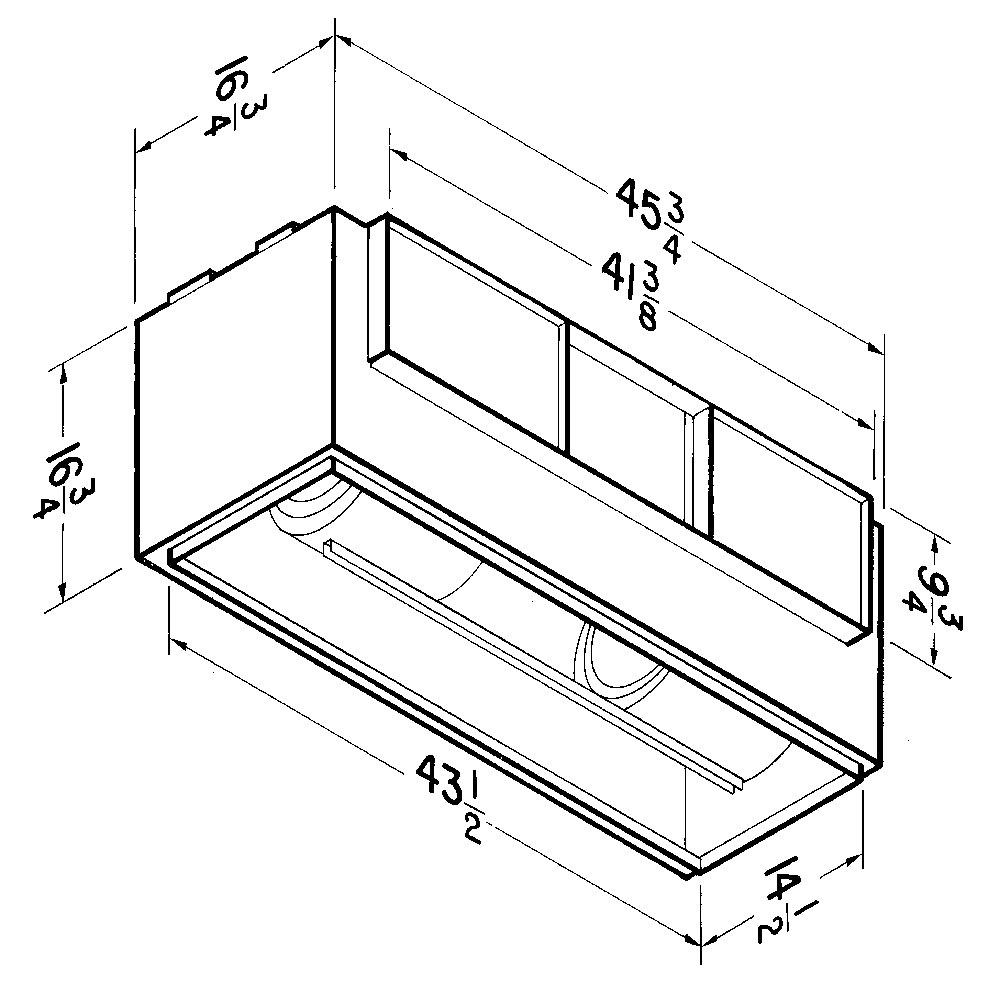

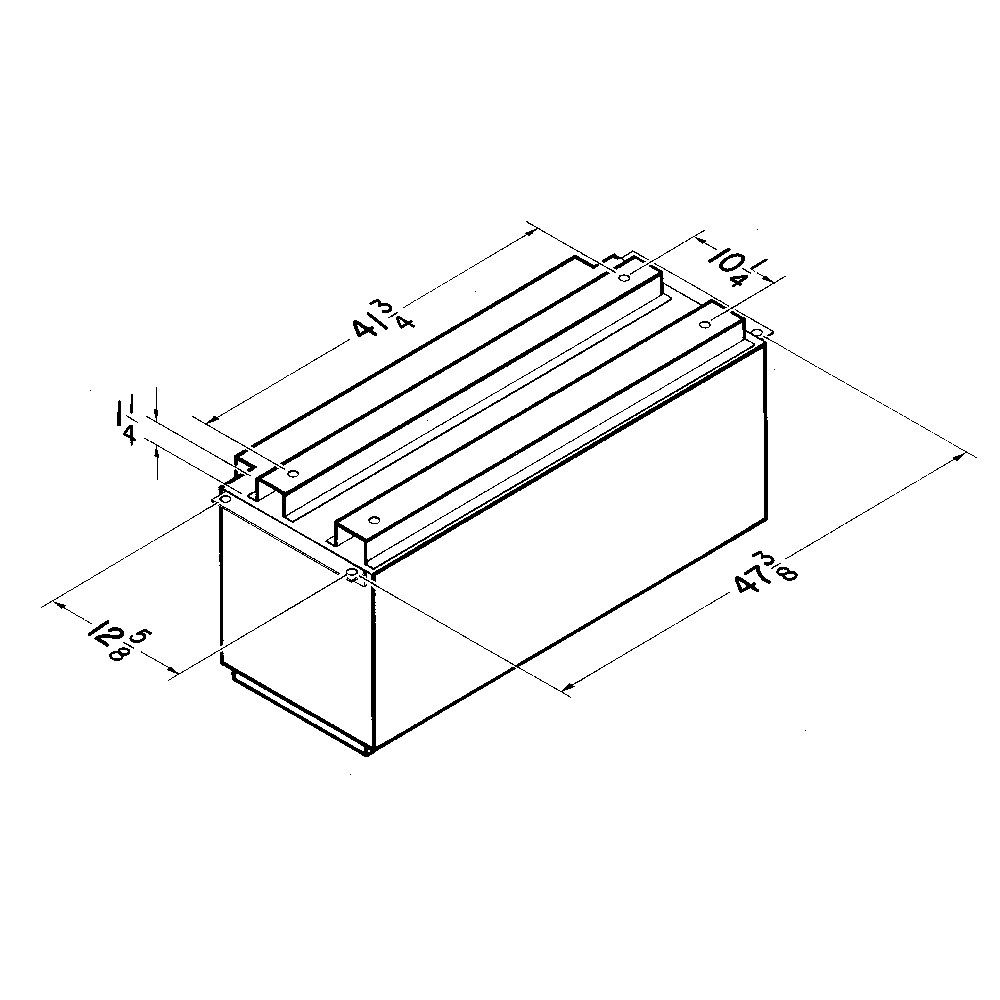

| Housing Dimensions | 16-3/4" x 45-3/4" x 16-3/4" |
| Sound Level (Sones) | 14.5 |
| UL Listed | Yes |
| Grille Finish | White Painted Enamel |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 0 |
| Rated Amps | 5.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 47.25 in. |
| Height | 16.75 in. |
| Length | 16.75 in. |
| Weight | - |
| Housing Dimensions | 16-3/4" x 45-3/4" x 16-3/4" |
| Housing Dimensions | 16-3/4" x 45-3/4" x 16-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52.25 in. |
| Shipping Height | 21.75 in. |
| Shipping Length | 21.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.67 ft³ |
| Dimensional Weight | 95.37 lbs. |
| Total of Cubes | 7.67 ft³ |
| Total of Dimensional Weight | 95.37 lbs. |
