LOSONE SELECT™ Ventilation Fan; 316 CFM Horizontal, 3.0 Sones; 314 CFM Vertical, 2.8 Sones - L300MG
LOSONE SELECT™ Ventilation Fan; 316 CFM Horizontal, 3.0 Sones; 314 CFM Vertical, 2.8 Sones
Model: L300MG
LOSONE SELECT™ Ventilation Fan; 316 CFM Horizontal, 3.0 Sones; 314 CFM Vertical, 2.8 Sones
Model: L300MG
Color : White Painted Enamel
Key Features
3.0 Sones for Quiet performance, enough sound to know your fan is on
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Duct horizontally, vertically or in-line with separate adapter
Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)
UL listed and cUL listed for your safety and protection
AMCA licensed for air and sound performance
Powerful enough for rooms up to () sq. ft.
Heavy-gauge galvanized steel housing resists corrosion
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
3.0 Sones for Quiet performance, enough sound to know your fan is on
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Duct horizontally, vertically or in-line with separate adapter
Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)
UL listed and cUL listed for your safety and protection
AMCA licensed for air and sound performance
Powerful enough for rooms up to () sq. ft.
Heavy-gauge galvanized steel housing resists corrosion
316 CFM, Whole home or Commercial Ventilation
Single, impact-resistant centrifugal blower wheel
Specifications
Product Details
| CFM | 316 |
| Duct Size | 8 |
| ENERGY STAR® certified | No |
| Grille Length | 14 |
| Grille Width | 14 |

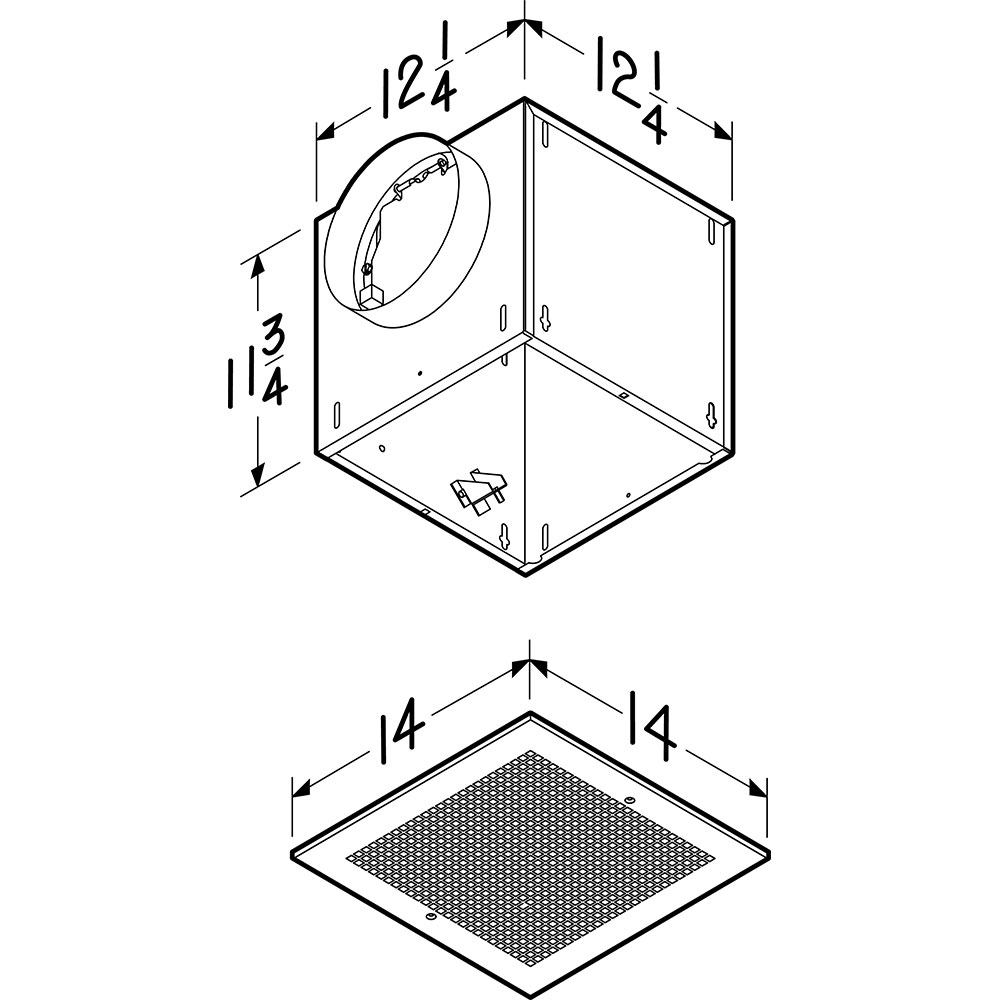

| Housing Dimensions | 12-1/4" X 12-1/4" X 11-3/4" |
| Sound Level (Sones) | 3 |
| UL Listed | Yes |
| Grille Finish | White Painted Enamel |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Rated Amps | 2.6 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 14 in. |
| Height | 12.25 in. |
| Length | 11.75 in. |
| Weight | - |
| Housing Dimensions | 12-1/4" X 12-1/4" X 11-3/4" |
| Housing Dimensions | 12-1/4" X 12-1/4" X 11-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 19 in. |
| Shipping Height | 17.25 in. |
| Shipping Length | 16.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.17 ft³ |
| Dimensional Weight | 14.5 lbs. |
| Total of Cubes | 1.17 ft³ |
| Total of Dimensional Weight | 14.5 lbs. |
