Broan LOSONE SELECT™ Ventilation Fan; 277 CFM Horizontal, 3.1 Sones; 277 CFM Vertical, 3.7 Sones
Model: L300KMG
Color : White Painted Enamel
Key Features
3.1 Audible Sones for privacy while using your bathroom
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Duct horizontally, vertically or in-line with separate adapter
Quiet automatic backdraft dampers
Rugged galvanized steel housing design
AMCA licensed for air and sound performance
cUL and UL Listed
8-inch round duct connector
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
3.1 Audible Sones for privacy while using your bathroom
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Duct horizontally, vertically or in-line with separate adapter
Quiet automatic backdraft dampers
Rugged galvanized steel housing design
AMCA licensed for air and sound performance
cUL and UL Listed
8-inch round duct connector
Removable access panel; Suitable for kitchen use
277 CFM, Whole home or Commercial Ventilation
Specifications
Product Details
| CFM | 277 |
| Duct Size | 8 |
| ENERGY STAR® certified | No |
| Grille Length | 14 |
| Grille Width | 14 |

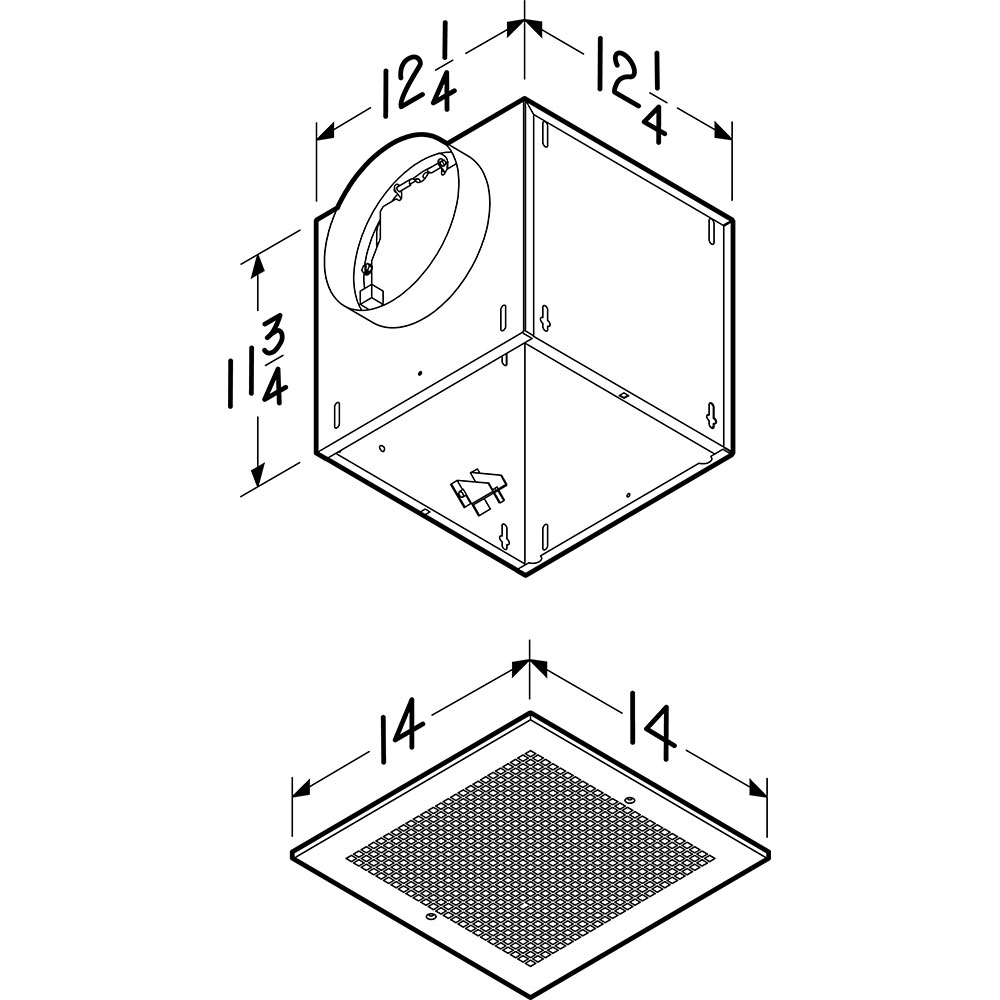

| Housing Dimensions | 12-1/4" X 12-1/4" X 11-3/4" |
| Sound Level (Sones) | 3.1 |
| UL Listed | Yes |
| Grille Finish | White Painted Enamel |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 0 |
| Rated Amps | 2.6 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 14 in. |
| Height | 12.25 in. |
| Length | 11.75 in. |
| Weight | - |
| Housing Dimensions | 12-1/4" X 12-1/4" X 11-3/4" |
| Housing Dimensions | 12-1/4" X 12-1/4" X 11-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 19 in. |
| Shipping Height | 17.25 in. |
| Shipping Length | 16.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.17 ft³ |
| Dimensional Weight | 14.5 lbs. |
| Total of Cubes | 1.17 ft³ |
| Total of Dimensional Weight | 14.5 lbs. |
