Economy Series 70 CFM Ceiling/Wall Ventilation Fan Finish Pack, 4.0 sones - E0F70
Economy Series 70 CFM Ceiling/Wall Ventilation Fan Finish Pack, 4.0 sones
Model: E0F70
Economy Series 70 CFM Ceiling/Wall Ventilation Fan Finish Pack, 4.0 sones
Model: E0F70
Color : White
Key Features
70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
4.0 Audible Sones for privacy while using your bathroom
Double strength mounting flanges with keyhole slots
Quiet polymeric damper prevents cold backdrafts
cUL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit
Powerful enough for rooms up to 65 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
4.0 Audible Sones for privacy while using your bathroom
Double strength mounting flanges with keyhole slots
Quiet polymeric damper prevents cold backdrafts
cUL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit
Powerful enough for rooms up to 65 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
Torsion spring grille mounting
Housing and Finish packs sold separately
Specifications
Product Details
| CFM | 70 |
| Duct Size | 3 |
| ENERGY STAR® certified | No |
| Grille Length | 9.25 |
| Grille Width | 9.75 |

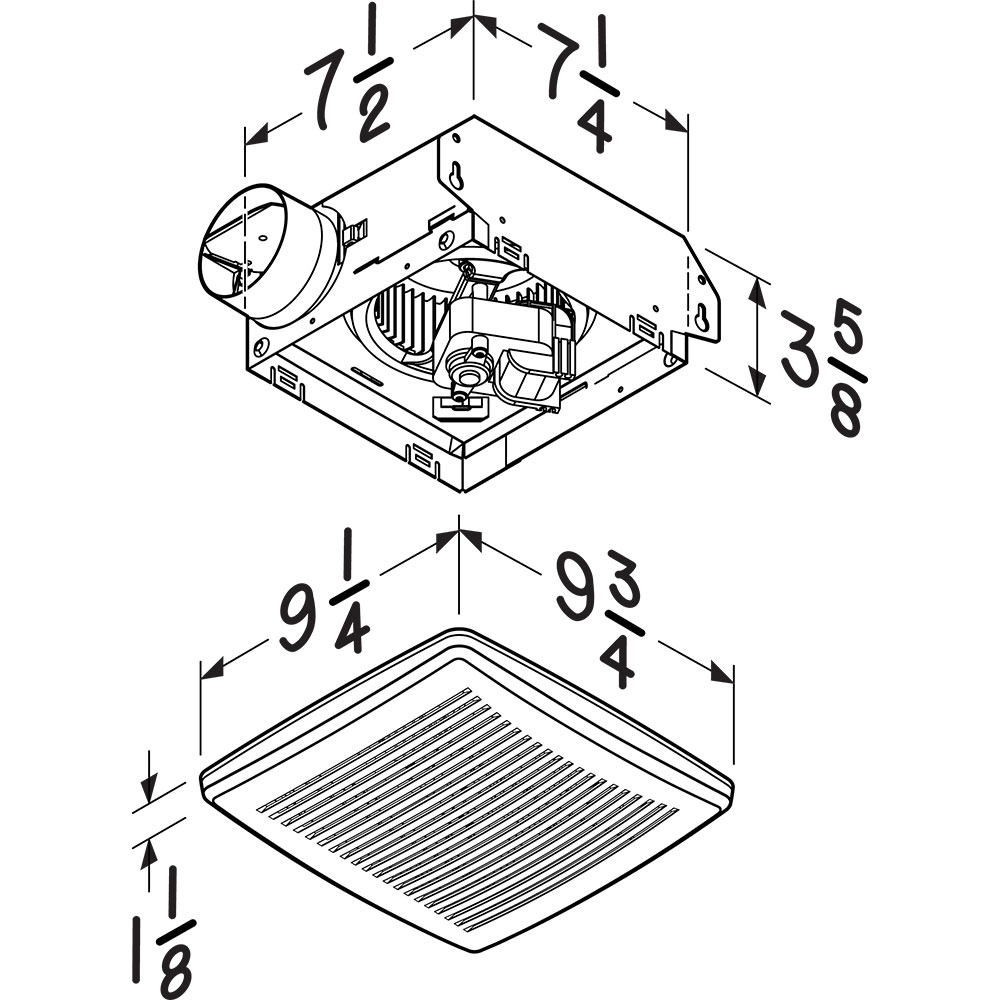

| Housing Dimensions | 7-1/2" x 7-1/4" x 3-5/8" |
| Sound Level (Sones) | 4 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 65 |
| Rated Amps | 1.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 4" |
| Manufacturer Warranty | 1 year |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 9.75 in. |
| Height | 7.5 in. |
| Length | 3.63 in. |
| Weight | - |
| Housing Dimensions | 7-1/2" x 7-1/4" x 3-5/8" |
| Housing Dimensions | 7-1/2" x 7-1/4" x 3-5/8" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 14.75 in. |
| Shipping Height | 12.5 in. |
| Shipping Length | 8.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.15 ft³ |
| Dimensional Weight | 1.6 lbs. |
| Total of Cubes | 0.15 ft³ |
| Total of Dimensional Weight | 1.6 lbs. |
