NuTone Roomside Series 80 CFM 2.0 Sones Heavy Duty Ventilation Fan - ARN80HD
NuTone Roomside Series 80 CFM 2.0 Sones Heavy Duty Ventilation Fan
Model: ARN80HD
NuTone Roomside Series 80 CFM 2.0 Sones Heavy Duty Ventilation Fan
Model: ARN80HD
Color : White
Key Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
2.0 Sones for Quiet performance , enough sound to know your fan is on
Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
UL listed for use over a bathtub or shower when connected to a GFCI-protected branch circuit
Powerful enough for rooms up to 75 sq. ft.
White metal grille coordinates with any interior decor and provides a pleasant transition from fixture to ceiling
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
2.0 Sones for Quiet performance , enough sound to know your fan is on
Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
UL listed for use over a bathtub or shower when connected to a GFCI-protected branch circuit
Powerful enough for rooms up to 75 sq. ft.
White metal grille coordinates with any interior decor and provides a pleasant transition from fixture to ceiling
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
EzDuct™ connector can be installed from the room side, with no attic access required
TrueSeal™ Damper technology reduces air leakage up to 50%
Specifications
Product Details
| CFM | 80 |
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 11 |
| Grille Width | 12 |

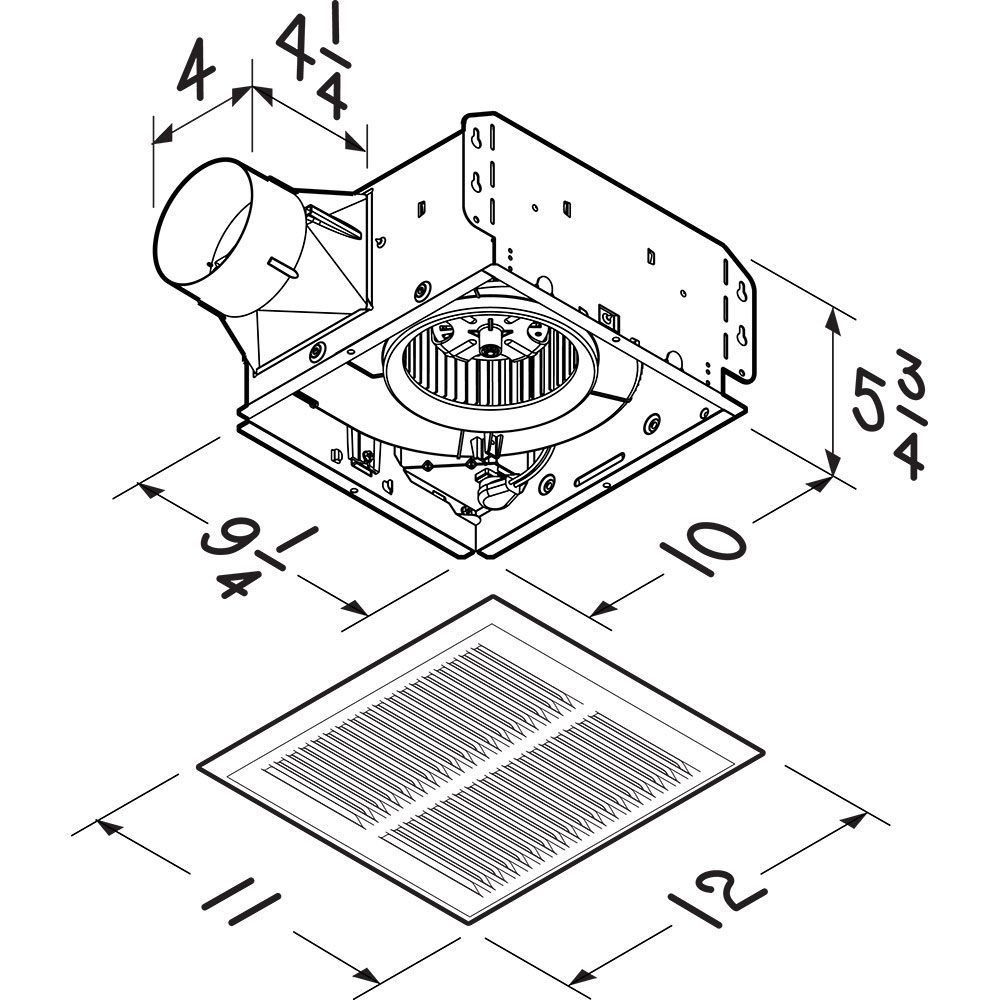

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 12 in. |
| Height | 9.25 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17 in. |
| Shipping Height | 14.25 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.37 ft³ |
| Dimensional Weight | 3.84 lbs. |
| Total of Cubes | 0.37 ft³ |
| Total of Dimensional Weight | 3.84 lbs. |
