NuTone Flex Series 80 CFM Ceiling Room Side Installation Bathroom Exhaust Fan with Light - AN80L
NuTone Flex Series 80 CFM Ceiling Room Side Installation Bathroom Exhaust Fan with Light
Model: AN80L
NuTone Flex Series 80 CFM Ceiling Room Side Installation Bathroom Exhaust Fan with Light
Model: AN80L
Color : White
Key Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
100 watt max incandescent A19 light bulb or energy efficient equivalent bulb (not included)
UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)
Powerful enough for rooms up to 75 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
Comparable to Broan Model A80L
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
100 watt max incandescent A19 light bulb or energy efficient equivalent bulb (not included)
UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)
Powerful enough for rooms up to 75 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
Comparable to Broan Model A80L
1.0 Sones for Ultra quiet performance, you might not notice it's on
TrueSeal™ Damper technology reduces air leakage up to 50%
EzDuct™ connector can be installed from the room side, with no attic access required
Specifications
Product Details
| CFM | 80 |
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 11.5 |
| Grille Width | 12.125 |

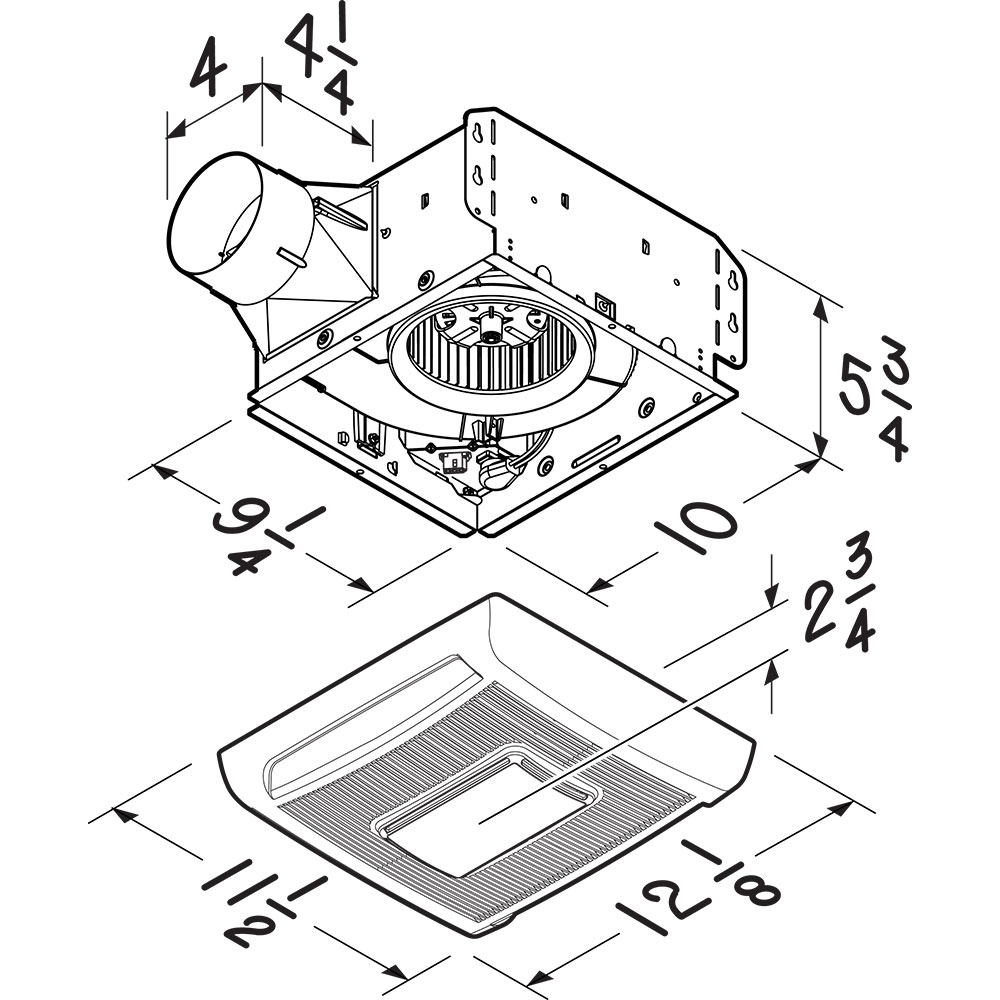

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 1 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 1.2 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | A19 |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 12.13 in. |
| Height | 9.25 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17.13 in. |
| Shipping Height | 14.25 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.37 ft³ |
| Dimensional Weight | 3.88 lbs. |
| Total of Cubes | 0.37 ft³ |
| Total of Dimensional Weight | 3.88 lbs. |
