NuTone Roomside Series 110 CFM 1.0 Sones Ventilation Fan Light - AERN110L
NuTone Roomside Series 110 CFM 1.0 Sones Ventilation Fan Light
Model: AERN110L
NuTone Roomside Series 110 CFM 1.0 Sones Ventilation Fan Light
Model: AERN110L
Color : White
Key Features
110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Bright 3000K energy efficient LED lighting to help illuminate your room
Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only)
Title 24 Compliant
Brighter white grilles blend in to match the most common ceiling paint
Permanently lubricated AC motor engineered for continuous operation
1.0 Sones for Ultra quiet performance, you might not notice it's on
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Bright 3000K energy efficient LED lighting to help illuminate your room
Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only)
Title 24 Compliant
Brighter white grilles blend in to match the most common ceiling paint
Permanently lubricated AC motor engineered for continuous operation
1.0 Sones for Ultra quiet performance, you might not notice it's on
Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
EzDuct™ connector can be installed from the room side, with no attic access required
TrueSeal™ Damper technology reduces air leakage up to 50%
ENERGY STAR® certified ventilation fan
Powerful enough for rooms up to 100 sq. ft.
Specifications
Product Details
| CFM | 110 |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.75 |
| Grille Width | 12.5 |

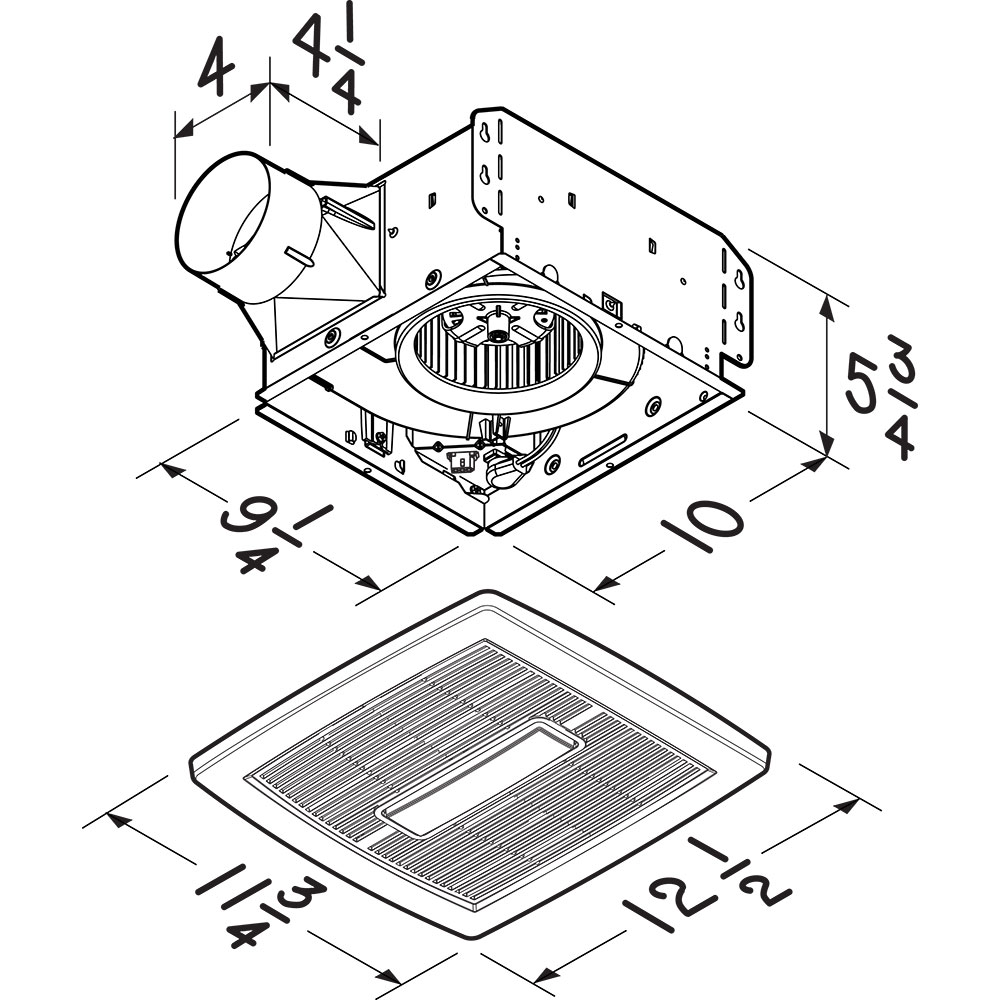

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 1 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 12.5 in. |
| Height | 9.25 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17.5 in. |
| Shipping Height | 14.25 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.38 ft³ |
| Dimensional Weight | 4.01 lbs. |
| Total of Cubes | 0.38 ft³ |
| Total of Dimensional Weight | 4.01 lbs. |
