NuTone Roomside Series 110 CFM 1.0 Sones Ventilation Fan - AERN110
NuTone Roomside Series 110 CFM 1.0 Sones Ventilation Fan
Model: AERN110
NuTone Roomside Series 110 CFM 1.0 Sones Ventilation Fan
Model: AERN110
Color : White
Key Features
110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only)
UL listed and HVI-2100 Certified for safety
UL listed for use in insulated ceilings (type I.C.)
Powerful enough for rooms up to 100 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only)
UL listed and HVI-2100 Certified for safety
UL listed for use in insulated ceilings (type I.C.)
Powerful enough for rooms up to 100 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
3-year limited manufacturer warranty
1.0 Sones for Ultra quiet performance, you might not notice it's on
EzDuct™ connector can be installed from the room side, with no attic access required
TrueSeal™ Damper technology reduces air leakage up to 50%
ENERGY STAR® certified ventilation fan
Specifications
Product Details
| CFM | 110 |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.5 |
| Grille Width | 12.25 |

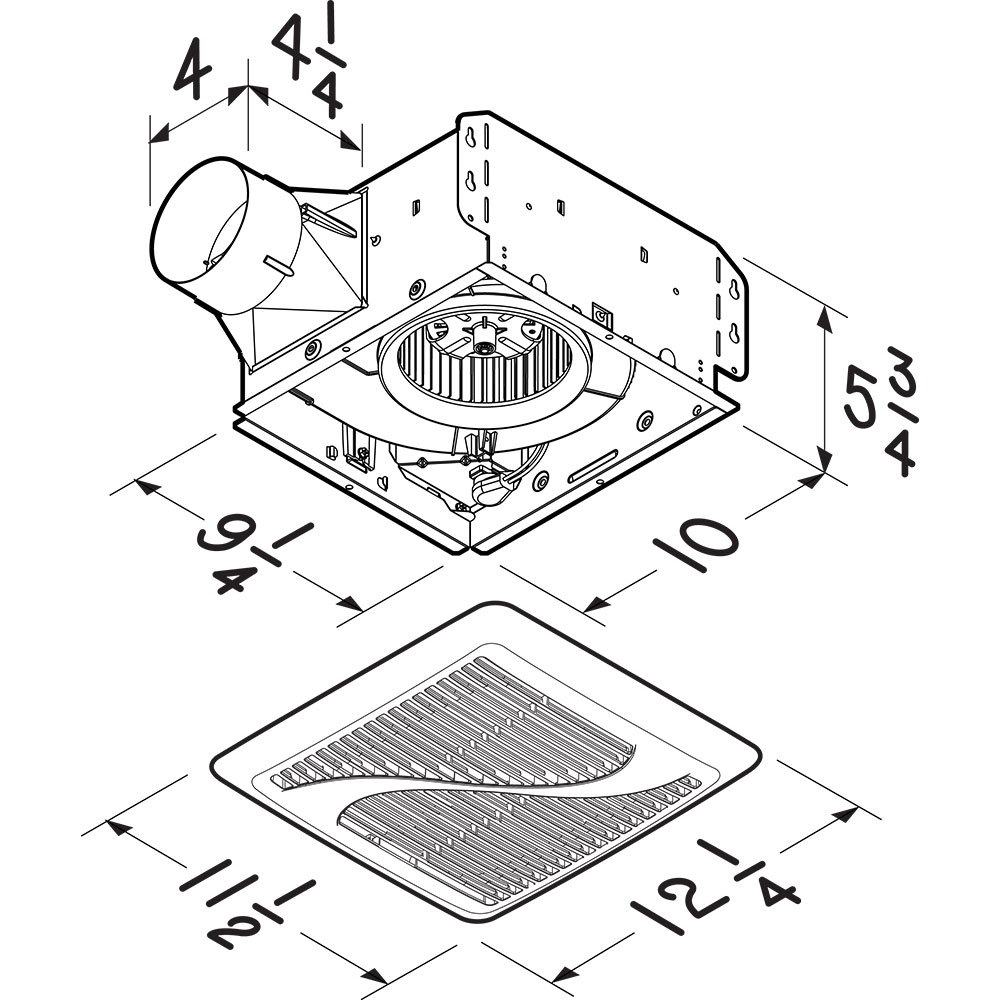

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 1 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 12.25 in. |
| Height | 9.25 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17.25 in. |
| Shipping Height | 14.25 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.38 ft³ |
| Dimensional Weight | 3.92 lbs. |
| Total of Cubes | 0.38 ft³ |
| Total of Dimensional Weight | 3.92 lbs. |
