NuTone Flex Series 80 CFM 1.2 Sones Ventilation Fan Finish Pack - AEN80BF1
NuTone Flex Series 80 CFM 1.2 Sones Ventilation Fan Finish Pack
Model: AEN80BF1
NuTone Flex Series 80 CFM 1.2 Sones Ventilation Fan Finish Pack
Model: AEN80BF1
Color : White
Key Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
1.2 Sones for Quiet performance, enough sound to know your fan is on.
UL Listed for use over tubs and showers with a GFCI circuit
Powerful enough for rooms up to 75 sq. ft.
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
*Testing reflects total fan housing airtightness.
TrueSeal™ Damper technology reduces air leakage up to 50%
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
1.2 Sones for Quiet performance, enough sound to know your fan is on.
UL Listed for use over tubs and showers with a GFCI circuit
Powerful enough for rooms up to 75 sq. ft.
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
*Testing reflects total fan housing airtightness.
TrueSeal™ Damper technology reduces air leakage up to 50%
EzDuct™ connector can be installed from the room side, with no attic access required
ENERGY STAR® Certified Product
Specifications
Product Details
| CFM | 80 |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.5 |
| Grille Width | 12 |

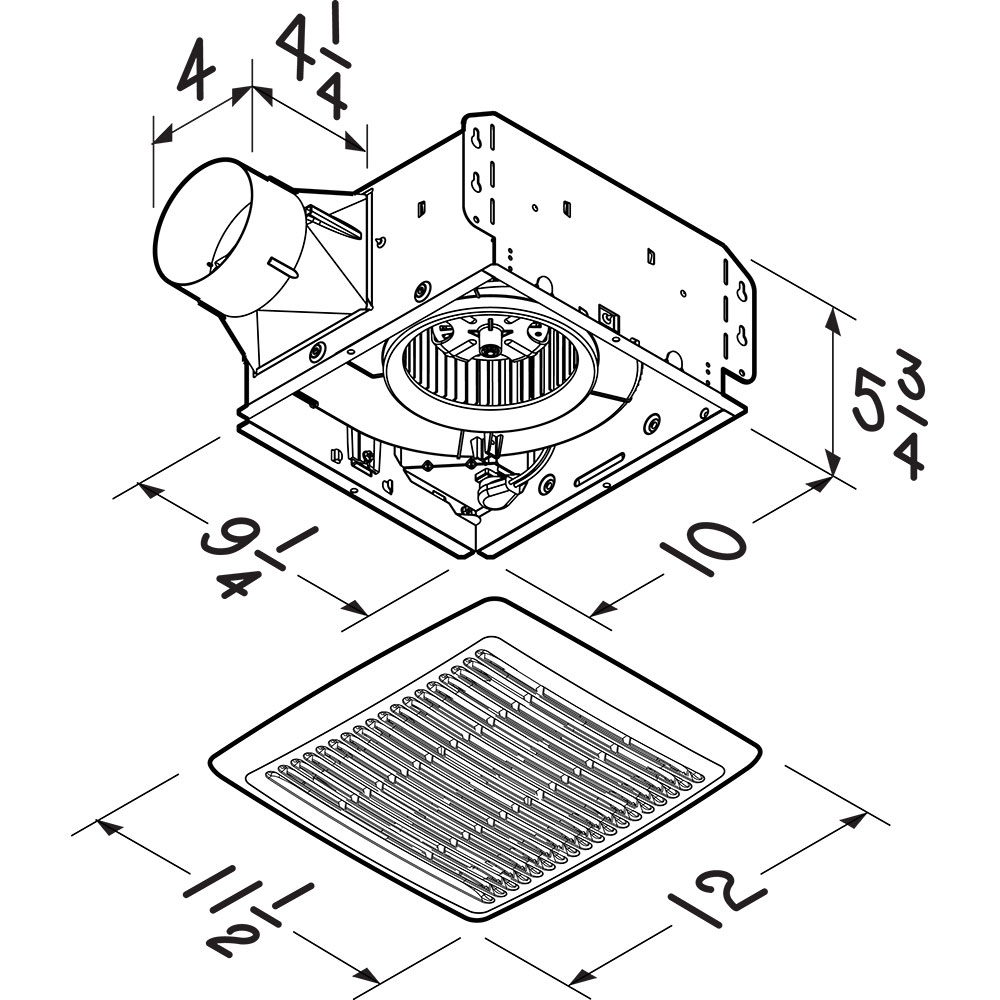

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 1.2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 12 in. |
| Height | 9.25 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17 in. |
| Shipping Height | 14.25 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.37 ft³ |
| Dimensional Weight | 3.84 lbs. |
| Total of Cubes | 0.37 ft³ |
| Total of Dimensional Weight | 3.84 lbs. |
