Flex DC™ Series 50-80-110 Selectable CFM <0.3-0.4-0.9 Sones Ventilation Fan Light Finish Pack - AE50110DCLF
Flex DC™ Series 50-80-110 Selectable CFM <0.3-0.4-0.9 Sones Ventilation Fan Light Finish Pack
Model: AE50110DCLF










Flex DC™ Series 50-80-110 Selectable CFM <0.3-0.4-0.9 Sones Ventilation Fan Light Finish Pack
Model: AE50110DCLF
Key Features
Selectable setting of 50, 80 or 110 CFM for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Bright 3500K energy efficient LED lighting to help illuminate your room
Can be installed in a wall if mounted 8-ft. or more above the floor
UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
Powerful enough for rooms up to 100 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
<0.3-0.4-0.9 sones for ultra quiet performance, you might not notice it's on
Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Selectable setting of 50, 80 or 110 CFM for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
Bright 3500K energy efficient LED lighting to help illuminate your room
Can be installed in a wall if mounted 8-ft. or more above the floor
UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
Powerful enough for rooms up to 100 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
<0.3-0.4-0.9 sones for ultra quiet performance, you might not notice it's on
Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
TrueSeal™ Damper technology reduces air leakage up to 50%
ENERGY STAR® certified product
Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
Specifications
Product Details
| CFM | 50-80-110 |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.75 |
| Grille Width | 12.5 |

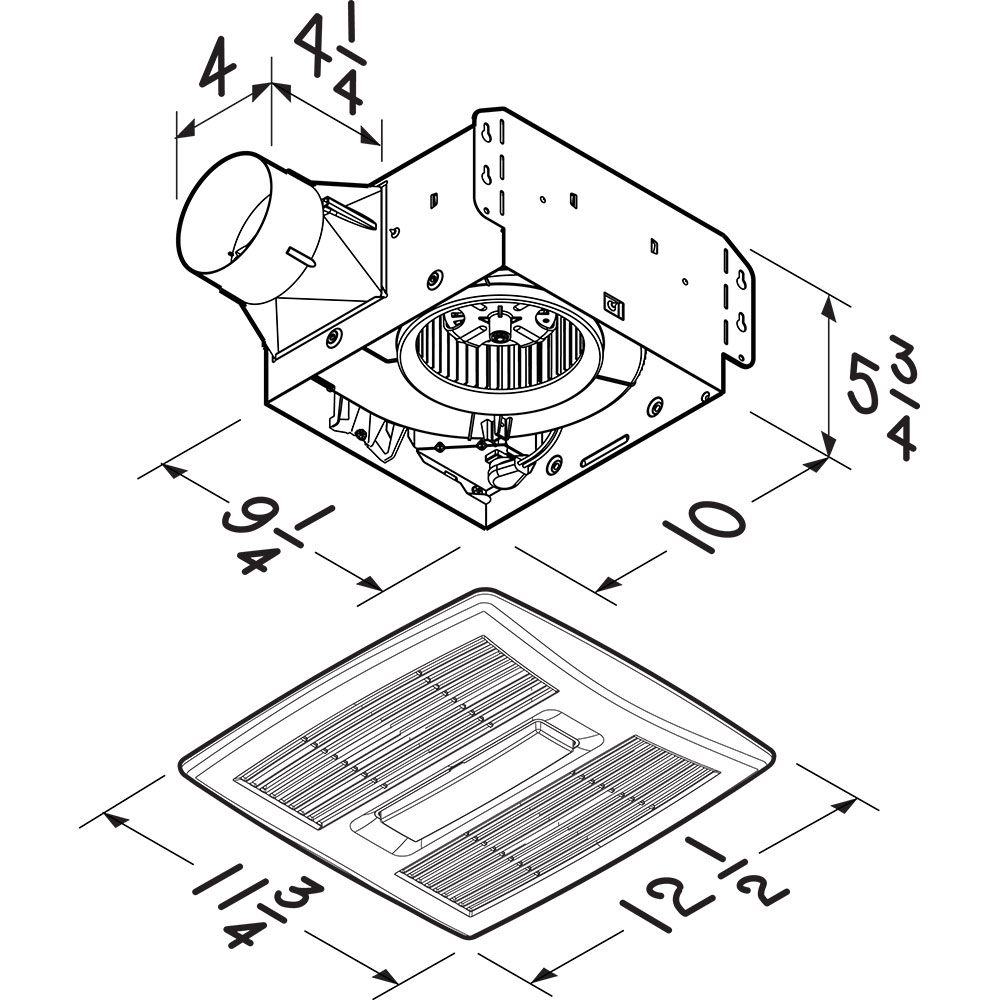

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 0 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 12.5 in. |
| Height | 9.25 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17.5 in. |
| Shipping Height | 14.25 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.38 ft³ |
| Dimensional Weight | 4.01 lbs. |
| Total of Cubes | 0.38 ft³ |
| Total of Dimensional Weight | 4.01 lbs. |
