Flex™ Series 80 CFM 2.0 Sones Heavy Duty Ventilation Fan - A80HD
Flex™ Series 80 CFM 2.0 Sones Heavy Duty Ventilation Fan
Model: A80HD
Flex™ Series 80 CFM 2.0 Sones Heavy Duty Ventilation Fan
Model: A80HD
Color : White
Key Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
2.0 Sones for Quiet performance , enough sound to know your fan is on
UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)
Powerful enough for rooms up to 75 sq. ft.
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
TrueSeal™ Damper technology reduces air leakage up to 50%
EzDuct™ connector can be installed from the room side, with no attic access required
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
2.0 Sones for Quiet performance , enough sound to know your fan is on
UL listed for use over tub or shower when connected to a GFCI-protected branch circuit (ceiling mount only)
Powerful enough for rooms up to 75 sq. ft.
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
TrueSeal™ Damper technology reduces air leakage up to 50%
EzDuct™ connector can be installed from the room side, with no attic access required
Heavy duty metal grille included
Specifications
Product Details
| CFM | 80 |
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 11 |
| Grille Width | 12 |

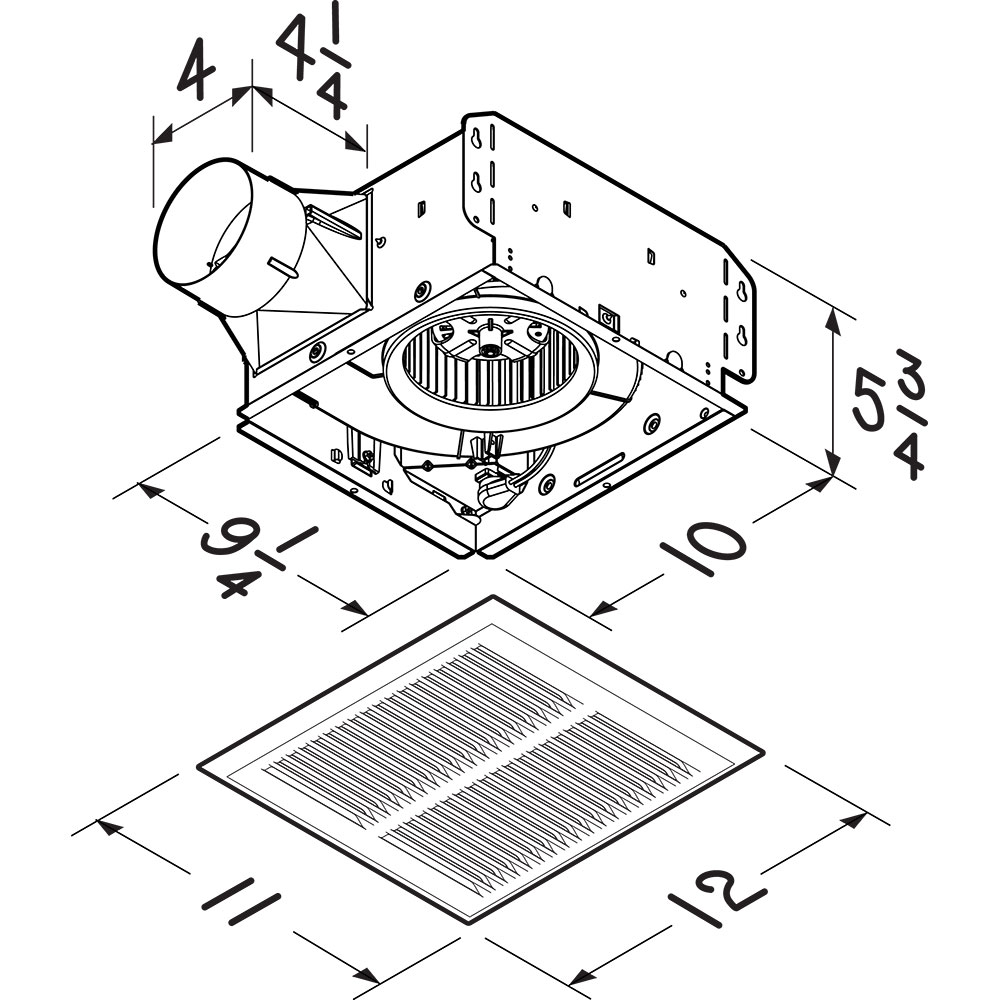

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 12 in. |
| Height | 9.25 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17 in. |
| Shipping Height | 14.25 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.37 ft³ |
| Dimensional Weight | 3.84 lbs. |
| Total of Cubes | 0.37 ft³ |
| Total of Dimensional Weight | 3.84 lbs. |
