Flex™ Series 50 CFM 1.5 Sones Ventilation Fan Light - A50L
Flex™ Series 50 CFM 1.5 Sones Ventilation Fan Light
Model: A50L
Flex™ Series 50 CFM 1.5 Sones Ventilation Fan Light
Model: A50L
Color : White Painted Enamel
Key Features
50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
1.5 Sones for Quiet performance, enough sound to know your fan is on.
Uses one 100-watt maximum incandescent A19 type bulb or energy-efficient equivalent bulb with maximum overall length (M.O.L.) of 4.4 in. or less (bulb not included)
Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
UL listed for use in insulated ceilings (type I.C.) and for use over bathtubs and showers when connected to a GFCI-protected branch circuit
Powerful enough for rooms up to 45 sq. ft.
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
1.5 Sones for Quiet performance, enough sound to know your fan is on.
Uses one 100-watt maximum incandescent A19 type bulb or energy-efficient equivalent bulb with maximum overall length (M.O.L.) of 4.4 in. or less (bulb not included)
Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
UL listed for use in insulated ceilings (type I.C.) and for use over bathtubs and showers when connected to a GFCI-protected branch circuit
Powerful enough for rooms up to 45 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
EzDuct™ connector can be installed from the room side, with no attic access required
TrueSeal™ Damper technology reduces air leakage up to 50%
Specifications
Product Details
| CFM | 50 |
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 11.5 |
| Grille Width | 12.125 |

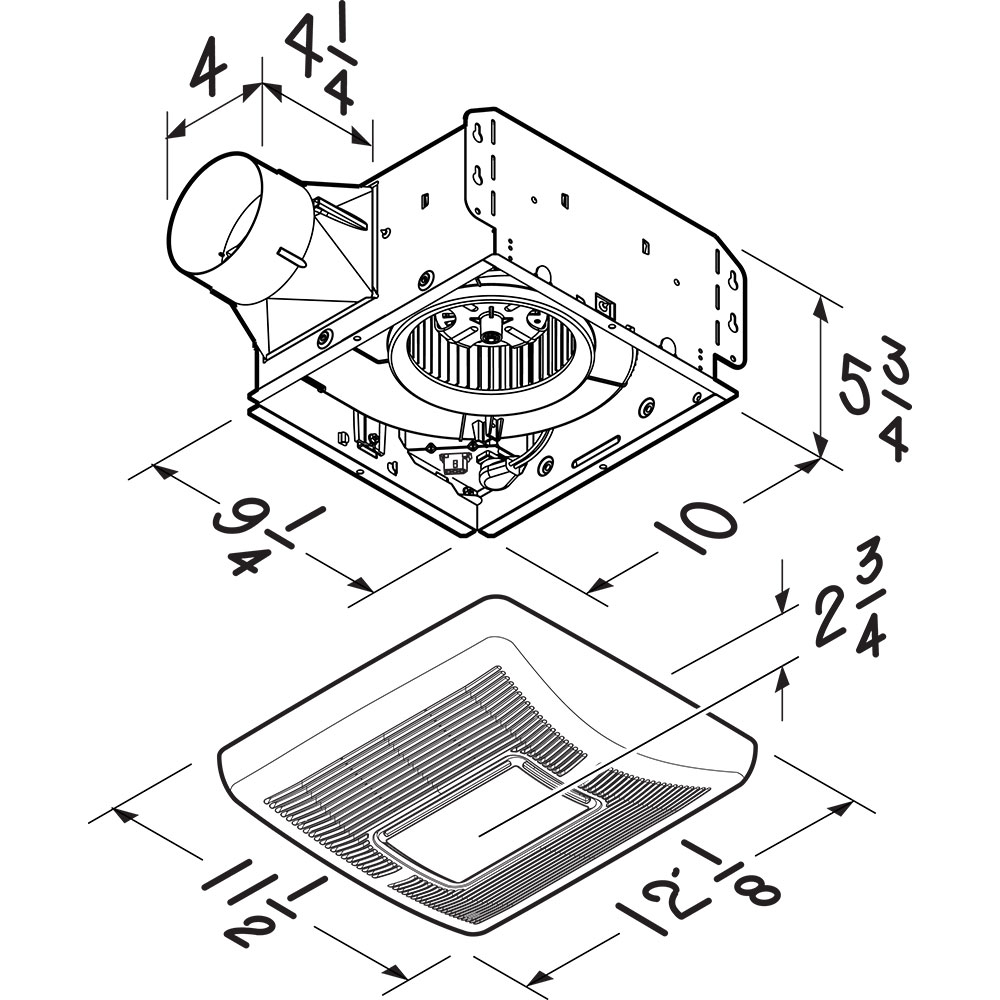

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 1.5 |
| UL Listed | Yes |
| Grille Finish | White Painted Enamel |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 45 |
| Rated Amps | 1 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | A19 |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
| Minimum Recommended Flow | 0 |
Dimensions & Weight
| Width | 12.13 in. |
| Height | 9.25 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17.13 in. |
| Shipping Height | 14.25 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.37 ft³ |
| Dimensional Weight | 3.88 lbs. |
| Total of Cubes | 0.37 ft³ |
| Total of Dimensional Weight | 3.88 lbs. |
