Broan NuTone One-Bulb Heater/Fan 70 CFM Ventilation Fan, 250W Bulb, 4.0 Sones
Model: 9417DN
Color : White
Key Features
70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
4.0 Audible Sones for privacy while using your bathroom
Requires one 250-watt R40/BR40 infrared bulb for comfortable heat
Polymeric dampers help prevent back drafts and eliminate mechanical noise
UL-listed and HVI-2100 certified for added safety and performance
Powerful enough for rooms up to 65 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
4.0 Audible Sones for privacy while using your bathroom
Requires one 250-watt R40/BR40 infrared bulb for comfortable heat
Polymeric dampers help prevent back drafts and eliminate mechanical noise
UL-listed and HVI-2100 certified for added safety and performance
Powerful enough for rooms up to 65 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
PowerHeat™ design ensures powerful heating, light, and ventilation are available at the touch of a switch
Specifications
Product Details
| CFM | 70 |
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 10.25 |
| Grille Width | 10.25 |

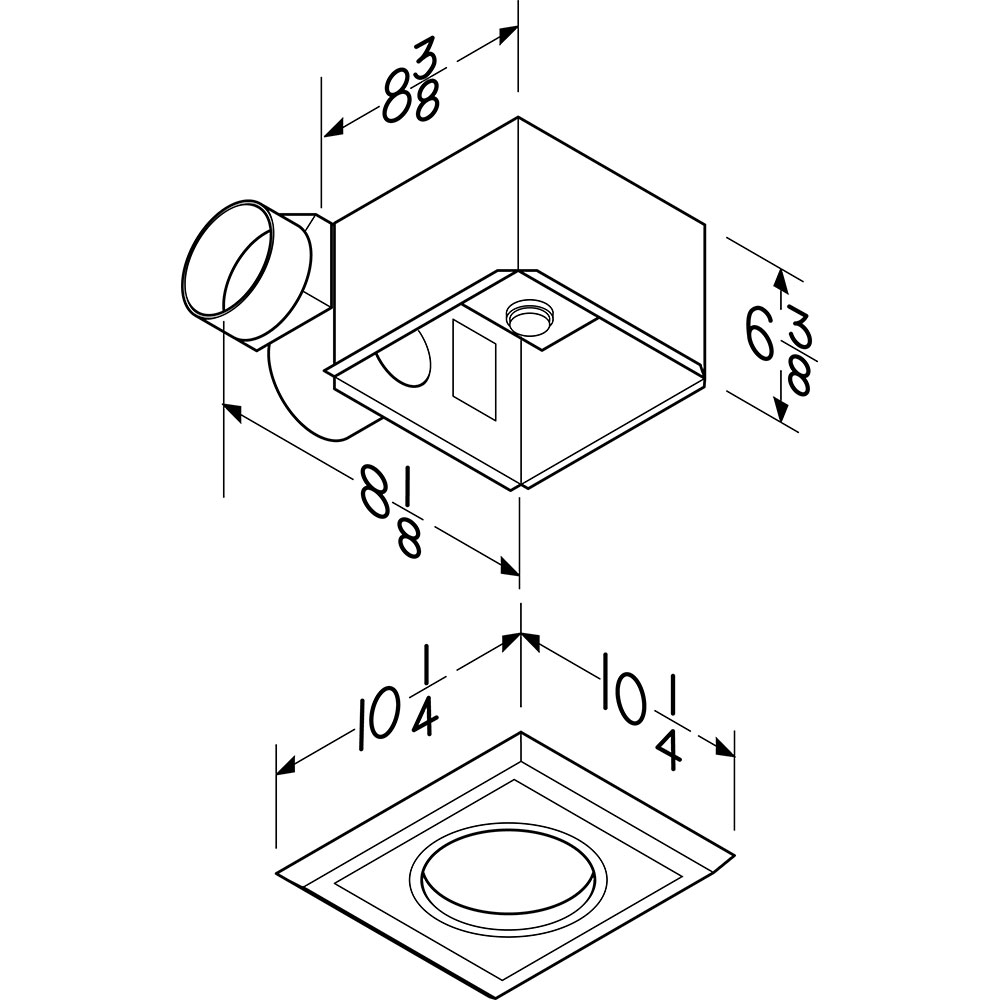

| Housing Dimensions | 8-1/8" x 8-3/8" x 6-3/8" |
| Sound Level (Sones) | 4 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 250 |
| Recommended Room Size (Sq Ft) | 65 |
| Rated Amps | 2.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | BR40 |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 10.25 in. |
| Height | 8.13 in. |
| Length | 6.38 in. |
| Weight | - |
| Housing Dimensions | 8-1/8" x 8-3/8" x 6-3/8" |
| Housing Dimensions | 8-1/8" x 8-3/8" x 6-3/8" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 15.25 in. |
| Shipping Height | 13.13 in. |
| Shipping Length | 11.38 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.31 ft³ |
| Dimensional Weight | 3.2 lbs. |
| Total of Cubes | 0.31 ft³ |
| Total of Dimensional Weight | 3.2 lbs. |
