NuTone 160 CFM Wall/Ceiling Mount Side Discharge Utility Ventilation Fan 160 CFM, 5.0 Sones - 8310
NuTone 160 CFM Wall/Ceiling Mount Side Discharge Utility Ventilation Fan 160 CFM, 5.0 Sones
Model: 8310
NuTone 160 CFM Wall/Ceiling Mount Side Discharge Utility Ventilation Fan 160 CFM, 5.0 Sones
Model: 8310
Color : White
Key Features
160 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors form larger rooms
5.0 Audible Sones for privacy while using your bathroom
Steel mounting brackets with keyhole slots for fast installation
Duct size 8 in. Dia
UL listed
Powerful enough for rooms up to () sq. ft.
Permanently lubricated motor
Galvanized steel housing for superior durability
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
160 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors form larger rooms
5.0 Audible Sones for privacy while using your bathroom
Steel mounting brackets with keyhole slots for fast installation
Duct size 8 in. Dia
UL listed
Powerful enough for rooms up to () sq. ft.
Permanently lubricated motor
Galvanized steel housing for superior durability
Specifications
Product Details
| CFM | 160 |
| ENERGY STAR® certified | No |

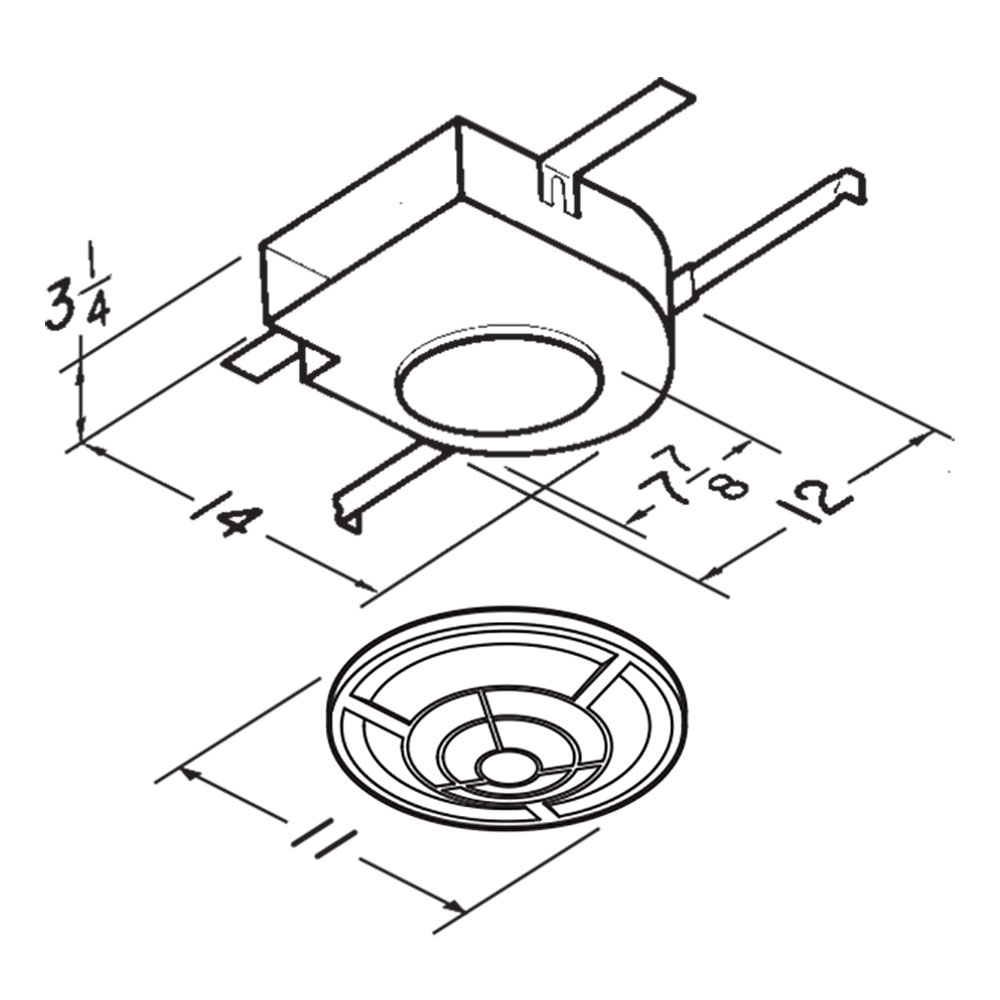

| Housing Dimensions | 12" x 14" x 3-1/4" |
| Sound Level (Sones) | 5 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 150 |
| Rated Amps | 1.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 4" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 14 in. |
| Height | 12 in. |
| Length | 3.25 in. |
| Weight | - |
| Housing Dimensions | 12" x 14" x 3-1/4" |
| Housing Dimensions | 12" x 14" x 3-1/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 19 in. |
| Shipping Height | 17 in. |
| Shipping Length | 8.25 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.32 ft³ |
| Dimensional Weight | 3.29 lbs. |
| Total of Cubes | 0.32 ft³ |
| Total of Dimensional Weight | 3.29 lbs. |
