Ventilation Fan w/ Light, 100 CFM - 751
Ventilation Fan w/ Light, 100 CFM
Model: 751








Ventilation Fan w/ Light, 100 CFM
Model: 751
Key Features
5.0 Audible Sones for privacy while using your bathroom
Can be wired to operate the fan and light either together or separate
Type IC for use in contact with thermal insulation
Not for use in kitchens
Powerful enough for rooms up to 95 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
5.0 Audible Sones for privacy while using your bathroom
Can be wired to operate the fan and light either together or separate
Type IC for use in contact with thermal insulation
Not for use in kitchens
Powerful enough for rooms up to 95 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Corrosion resistant galvanized steel housing stands up to moisture
Permanently lubricated AC motor engineered for continuous operation
Comparable to NuTone Model 8664RP
100 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths.
Glass lens brightly diffuses 100 watt bulb (purchase bulb separately). Lens extends only 1-5/8” from finished ceiling.
UL listed for use in a tub/shower stall enclosure when used with GFCI branch circuit
NOTE: For installation you must make a 13-inch diameter cut (round hole) in the ceiling that requires attic access to correctly install the unit's housing
Specifications
Product Details
| CFM | 100 |
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Housing Dimensions | 9" x 9" x 6" |
| Sound Level (Sones) | 5 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 95 |
| Rated Amps | 1.9 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | A19 |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |

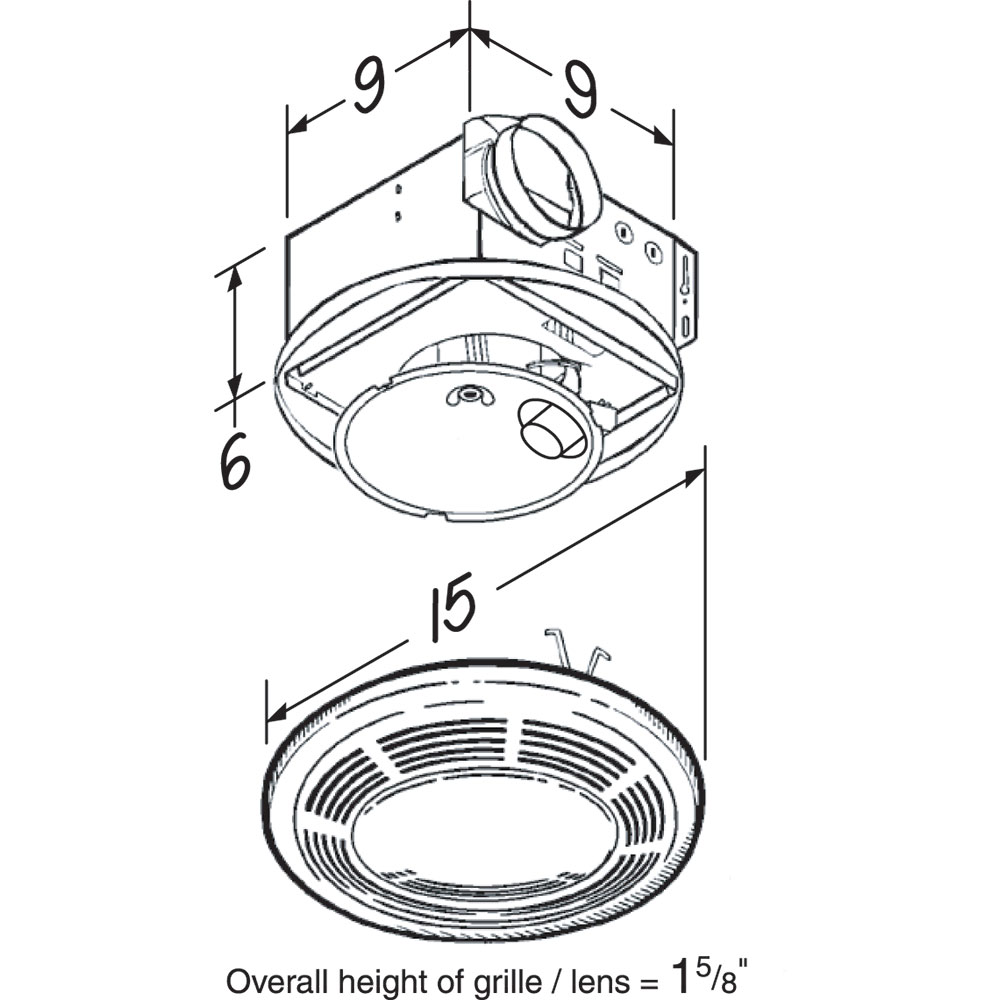

Dimensions & Weight
| Width | 9 in. |
| Height | 9 in. |
| Length | 6 in. |
| Weight | - |
| Housing Dimensions | 9" x 9" x 6" |
| Housing Dimensions | 9" x 9" x 6" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 14 in. |
| Shipping Height | 14 in. |
| Shipping Length | 11 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.28 ft³ |
| Dimensional Weight | 2.93 lbs. |
| Total of Cubes | 0.28 ft³ |
| Total of Dimensional Weight | 2.93 lbs. |
