Recessed 50-80 CFM Ventilation Fan with LED Light, 0.8-2.0 Sones - 744RL
Recessed 50-80 CFM Ventilation Fan with LED Light, 0.8-2.0 Sones
Model: 744RL
Recessed 50-80 CFM Ventilation Fan with LED Light, 0.8-2.0 Sones
Model: 744RL
Color : Brushed Nickel
Key Features
Selectable CFM with speeds of 50 or 80 CFM
Quiet operation of 0.3 sones and 2.0 sones
Trim kit to match designs of any décor
E26 LED bulb included
Low RPM for quiet performance
Adjustable mounting brackets to make installation easier
UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit
ENERGY STAR® certified
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Selectable CFM with speeds of 50 or 80 CFM
Quiet operation of 0.3 sones and 2.0 sones
Trim kit to match designs of any décor
E26 LED bulb included
Low RPM for quiet performance
Adjustable mounting brackets to make installation easier
UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit
ENERGY STAR® certified
Specifications
Product Details
| CFM | 50-80 |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |

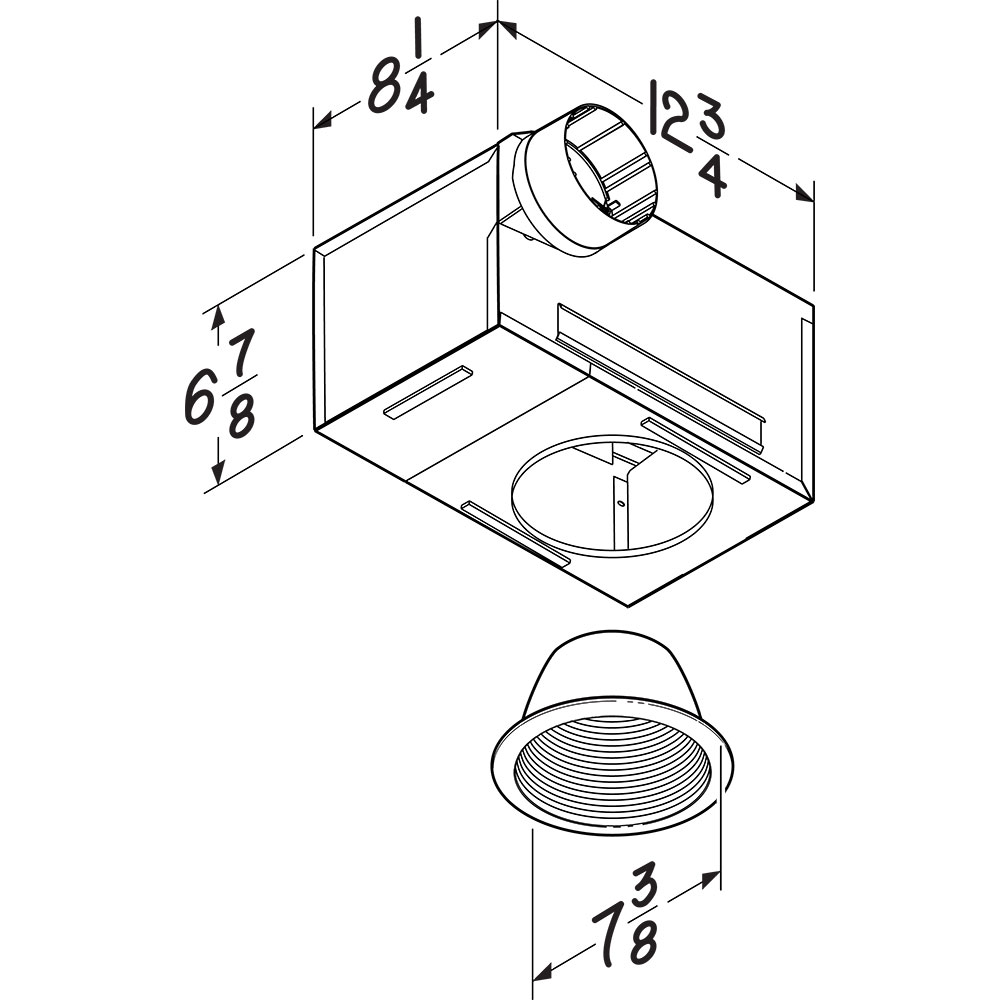

| Housing Dimensions | 8-1/4" x 12-3/4" x 6-7/8" |
| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| Grille Finish | Brushed Nickel, Satin Nickel, White Polymeric |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | BR30-shaped, 9.5W Dimmable LED Lamp |
| Minimum Construction Space Required | 2" x 8" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 12.75 in. |
| Height | 8.25 in. |
| Length | 6.88 in. |
| Weight | - |
| Housing Dimensions | 8-1/4" x 12-3/4" x 6-7/8" |
| Housing Dimensions | 8-1/4" x 12-3/4" x 6-7/8" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 17.75 in. |
| Shipping Height | 13.25 in. |
| Shipping Length | 11.88 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.42 ft³ |
| Dimensional Weight | 4.36 lbs. |
| Total of Cubes | 0.42 ft³ |
| Total of Dimensional Weight | 4.36 lbs. |
