60 CFM Ventilation Fan, 5.5 Sones - 689
60 CFM Ventilation Fan, 5.5 Sones
Model: 689
60 CFM Ventilation Fan, 5.5 Sones
Model: 689
Color : White
Key Features
60 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room and bathroom
5.5 Audible sones for privacy while using your bathroom
Torsion springs grille mounting - no tools necessary
Eliminates odors and moisture improving indoor air quality, decreasing humidity levels, and preventing mold and mildew
Compact housing fits easily between ceiling joists or wall studs
White polymeric grille can be painted to match ceiling
Double strength mounting flanges with keyhole slots
Quiet polymeric damper prevents cold backdrafts
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
60 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room and bathroom
5.5 Audible sones for privacy while using your bathroom
Torsion springs grille mounting - no tools necessary
Eliminates odors and moisture improving indoor air quality, decreasing humidity levels, and preventing mold and mildew
Compact housing fits easily between ceiling joists or wall studs
White polymeric grille can be painted to match ceiling
Double strength mounting flanges with keyhole slots
Quiet polymeric damper prevents cold backdrafts
Plug-in permanently lubricated motor with Broan®-designed polymeric blower wheel
UL listed for use over bathtubs and showers when connected to a GFCI protected branch
Specifications
Product Details
| CFM | 60 |
| Duct Size | 3 |
| ENERGY STAR® certified | No |
| Grille Length | 9 |
| Grille Width | 9.25 |

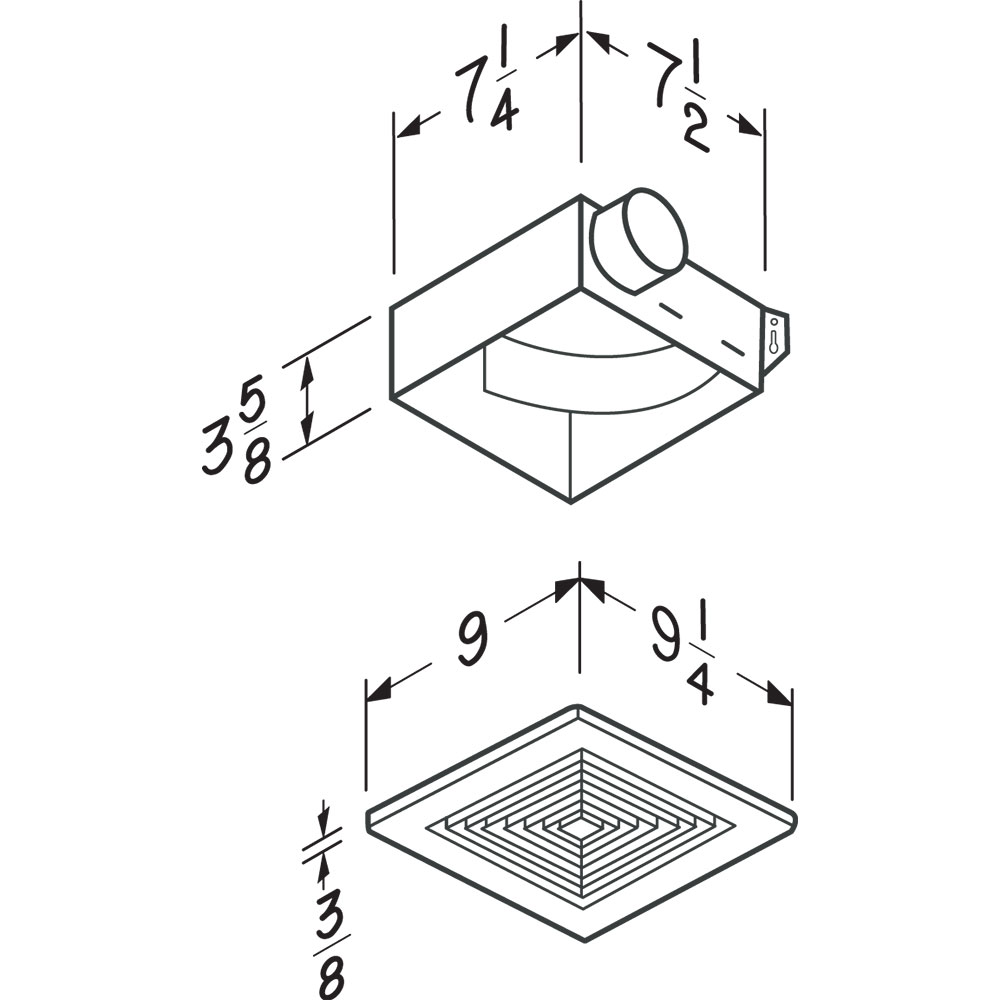

| Housing Dimensions | 7-1/4" x 7-1/2" x 3-5/8" |
| Sound Level (Sones) | 5.5 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 55 |
| Rated Amps | 1.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 4" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 9.25 in. |
| Height | 7.25 in. |
| Length | 3.63 in. |
| Weight | - |
| Housing Dimensions | 7-1/4" x 7-1/2" x 3-5/8" |
| Housing Dimensions | 7-1/4" x 7-1/2" x 3-5/8" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 14.25 in. |
| Shipping Height | 12.25 in. |
| Shipping Length | 8.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.14 ft³ |
| Dimensional Weight | 1.46 lbs. |
| Total of Cubes | 0.14 ft³ |
| Total of Dimensional Weight | 1.46 lbs. |
