70 CFM Ventilation Fan/Light Assembly & Grille Finish Pack, 4.0 Sones, 100W light. Uses 654H housing pack. - 657F
70 CFM Ventilation Fan/Light Assembly & Grille Finish Pack, 4.0 Sones, 100W light. Uses 654H housing pack.
Model: 657F
70 CFM Ventilation Fan/Light Assembly & Grille Finish Pack, 4.0 Sones, 100W light. Uses 654H housing pack.
Model: 657F
Color : White
Key Features
70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
4.0 Audible Sones for privacy while using your bathroom
Features a 100-watt light (bulb not included)
Built-in damper prevents backdrafts and eliminates metallic clatter
Adjustable, slotted mounting brackets for easy installation
15-amp circuit acceptable
UL listed for use over bathtubs and showers when connected to GFCI-protected branch circuit
Powerful enough for rooms up to 65 sq. ft.
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
4.0 Audible Sones for privacy while using your bathroom
Features a 100-watt light (bulb not included)
Built-in damper prevents backdrafts and eliminates metallic clatter
Adjustable, slotted mounting brackets for easy installation
15-amp circuit acceptable
UL listed for use over bathtubs and showers when connected to GFCI-protected branch circuit
Powerful enough for rooms up to 65 sq. ft.
Brighter white grilles blend in to match most common ceiling paint
Permanently lubricated plug-in motor, quietly delivers high-efficiency performances
Housing and finish packs sold separately
Specifications
Product Details
| CFM | 70 |
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 16.75 |
| Grille Width | 10.625 |

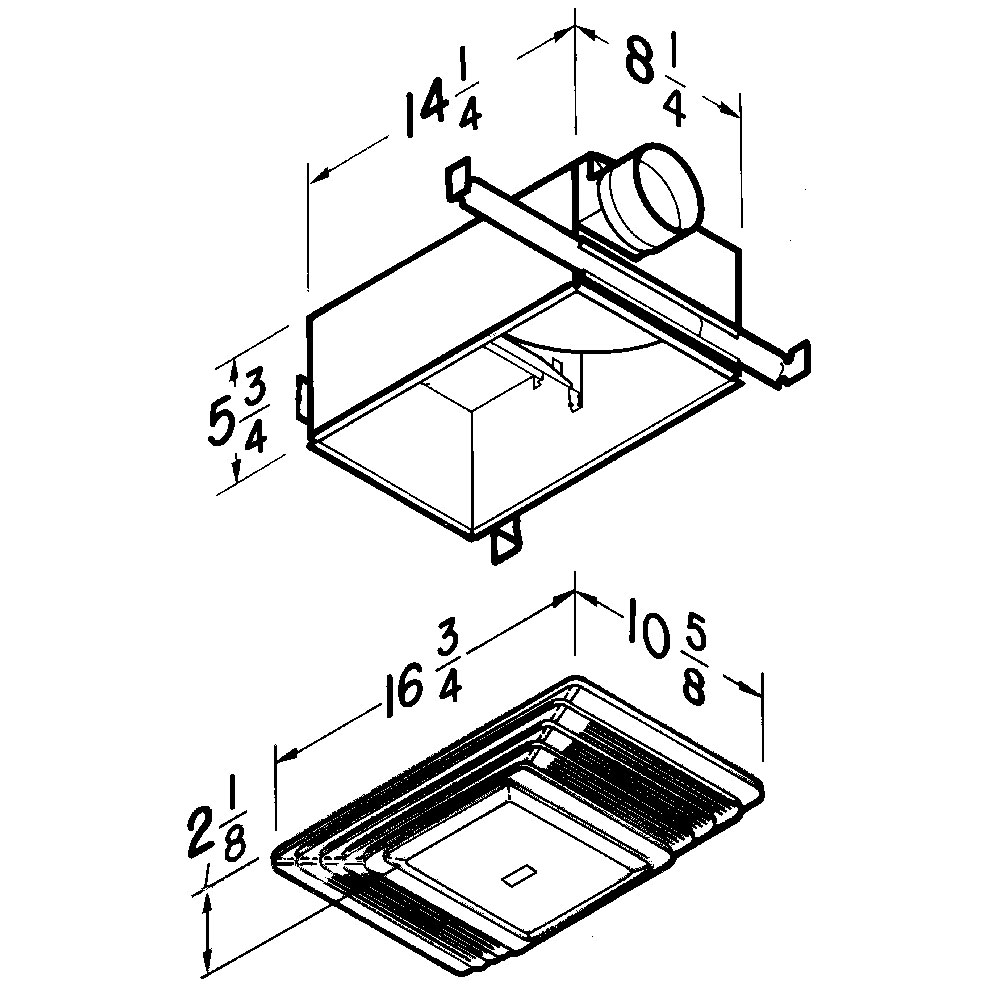

| Housing Dimensions | 14-1/4" x 8-1/4" x 5-3/4" |
| Sound Level (Sones) | 4 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 1300 |
| Recommended Room Size (Sq Ft) | 65 |
| Rated Amps | 2 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | A19 |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 10.63 in. |
| Height | 14.25 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 14-1/4" x 8-1/4" x 5-3/4" |
| Housing Dimensions | 14-1/4" x 8-1/4" x 5-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 15.63 in. |
| Shipping Height | 19.25 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.5 ft³ |
| Dimensional Weight | 5.24 lbs. |
| Total of Cubes | 0.5 ft³ |
| Total of Dimensional Weight | 5.24 lbs. |
