60 CFM Ventilation Fan Motored Assembly and Grille Finish Pack, 5.5 Sones - 1689F
60 CFM Ventilation Fan Motored Assembly and Grille Finish Pack, 5.5 Sones
Model: 1689F
60 CFM Ventilation Fan Motored Assembly and Grille Finish Pack, 5.5 Sones
Model: 1689F
Color : White
Key Features
60 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room and bathroom
5.5 Audible Sones for privacy while using your bathroom
Can be mounted in the ceiling or wall
Includes grilles and motor/blower assemblies
Powerful enough for rooms up to 55 sq. ft.
Corrosion resistant galvanized steel housing stands up to moisture
Housing Pack sold separately
UL listed for use over tubs and showers
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
60 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room and bathroom
5.5 Audible Sones for privacy while using your bathroom
Can be mounted in the ceiling or wall
Includes grilles and motor/blower assemblies
Powerful enough for rooms up to 55 sq. ft.
Corrosion resistant galvanized steel housing stands up to moisture
Housing Pack sold separately
UL listed for use over tubs and showers
Specifications
Product Details
| CFM | 60 |
| Duct Size | 3 |
| ENERGY STAR® certified | No |
| Grille Length | 9 |
| Grille Width | 9.25 |

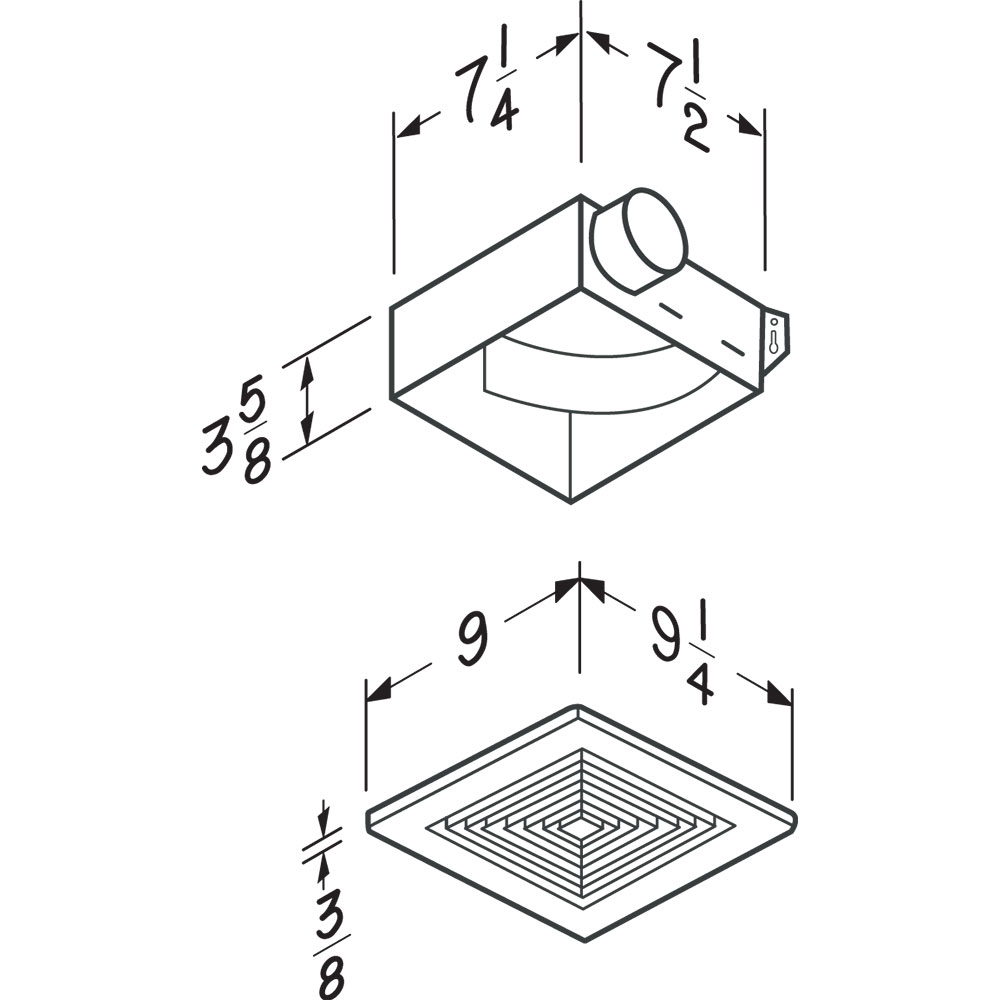

| Housing Dimensions | 7-1/4" x 7-1/2" x 3-5/8" |
| Sound Level (Sones) | 5.5 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 55 |
| Rated Amps | 1.5 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 4" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 9.25 in. |
| Height | 7.25 in. |
| Length | 3.63 in. |
| Weight | - |
| Housing Dimensions | 7-1/4" x 7-1/2" x 3-5/8" |
| Housing Dimensions | 7-1/4" x 7-1/2" x 3-5/8" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 14.25 in. |
| Shipping Height | 12.25 in. |
| Shipping Length | 8.63 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.14 ft³ |
| Dimensional Weight | 1.46 lbs. |
| Total of Cubes | 0.14 ft³ |
| Total of Dimensional Weight | 1.46 lbs. |
