2 Cu.Ft. Compact Vaccine Refrigerator - ARS2PV

This product has been discontinued by the manufacture and is no longer available.

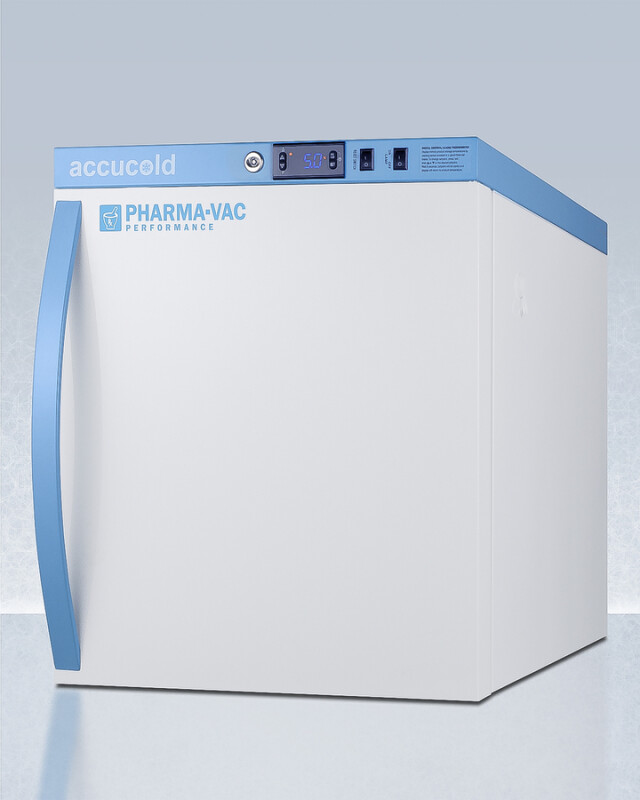

2 Cu.Ft. Compact Vaccine Refrigerator

Model: ARS2PV

2 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, product image 1 of 112 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, product image 2 of 112 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, product image 3 of 112 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, product image 4 of 112 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, product image 5 of 112 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, product image 6 of 112 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, product image 7 of 112 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, product image 8 of 112 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, product image 9 of 112 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, product image 10 of 112 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, product image 11 of 11
2 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, thumbnail image 1 of 11
2 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, thumbnail image 2 of 11
2 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, thumbnail image 3 of 11
2 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, thumbnail image 4 of 11
2 Cu.Ft. Compact Vaccine Refrigerator ARS2PV, thumbnail image 5 of 11
+6more

Color : White

2 Cu.Ft. Compact Vaccine Refrigerator ARS2PV
White

Key Features

  • Purpose-built design

  • Pharma-Vac Refrigerator

  • +/-1ºC Variation

  • Temperature alarm

  • Adjustable temperature

  • Remote alarm contacts

  • Automatic defrost with adjustable cycle defrost

  • Open door alarm

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

Purpose-built design

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines

Pharma-Vac Refrigerator

1.94 cu.ft. all-refrigerator purpose-built for vaccine storage

+/-1ºC Variation

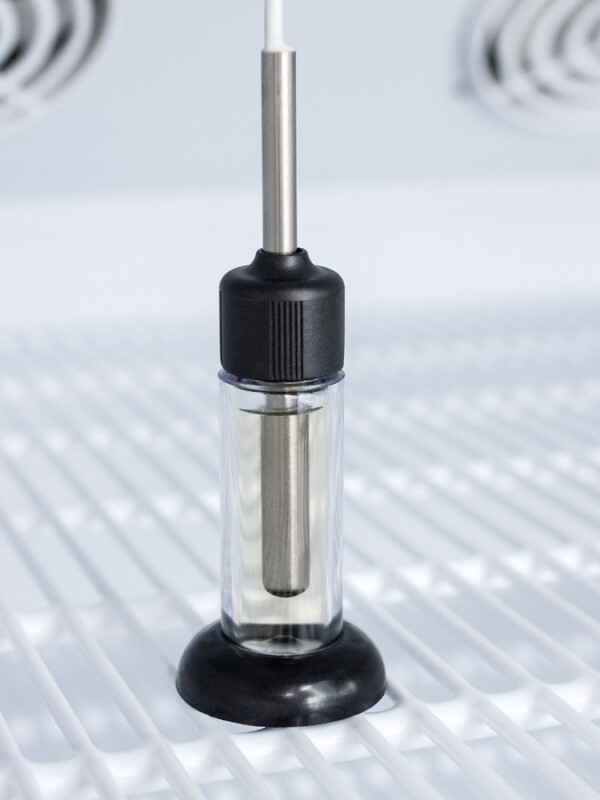

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Adjustable temperature

Intuitive controls let you adjust the interior temperature between +2 to +8ºC

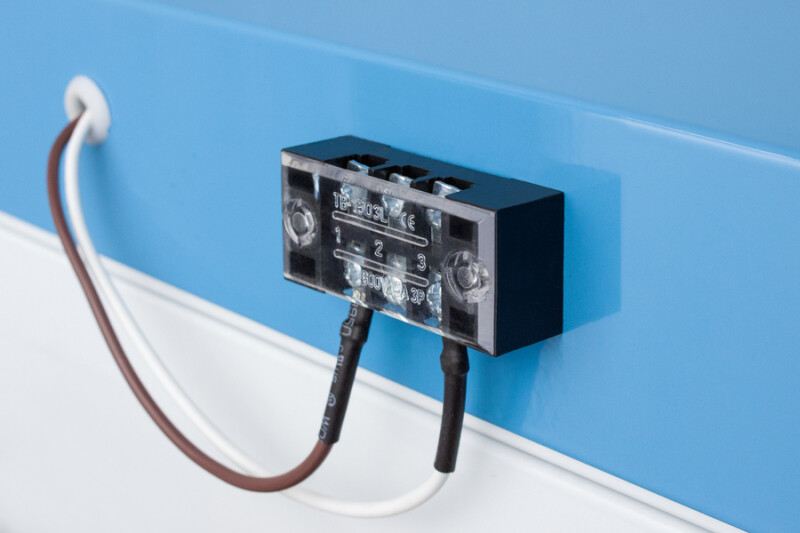

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle defrost

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Open door alarm

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

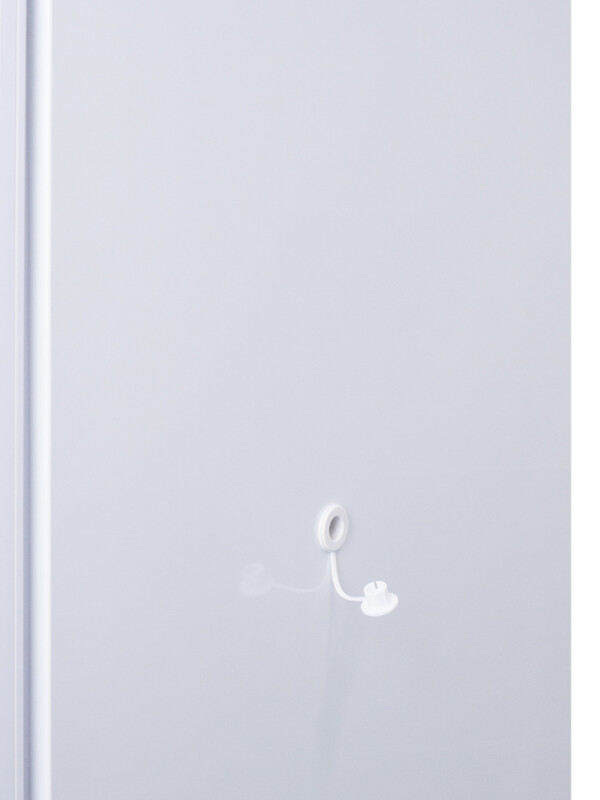

Access port

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Audible power failure alarm

Battery-powered alarm sounds if the power connection is interrupted

Password protection

Control panel requires password entry to adjust the parameters beyond the set point

Sensor failure alarm

Audible and visual alarm warns if the sensor is disrupted

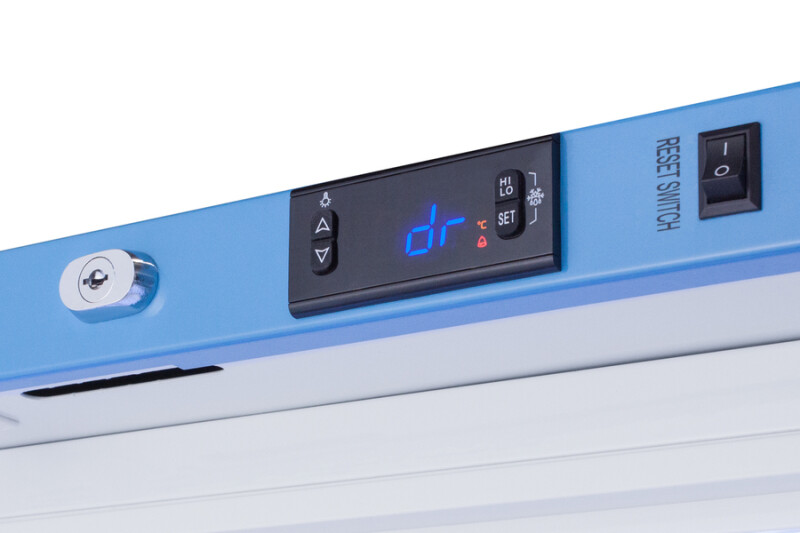

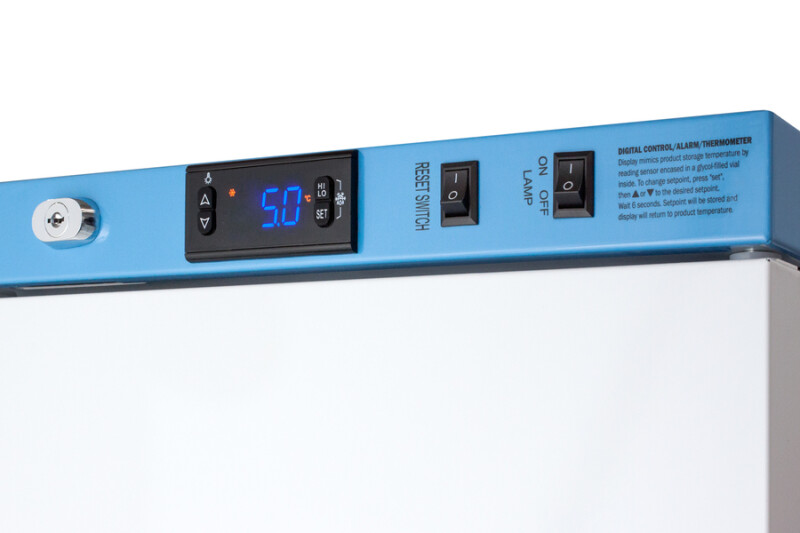

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

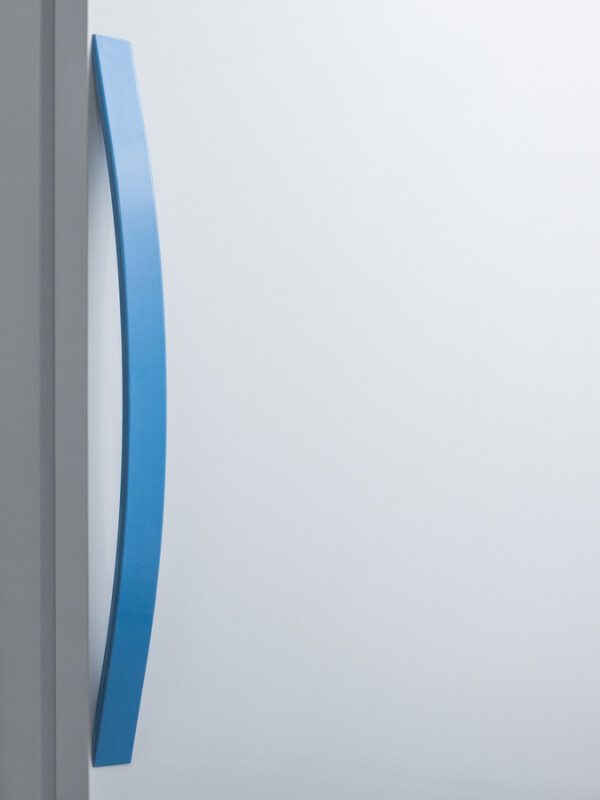

Antimicrobial silver ion-coated handle

Powder-coated handle with naturally occurring silver ions to help reduce germ spread

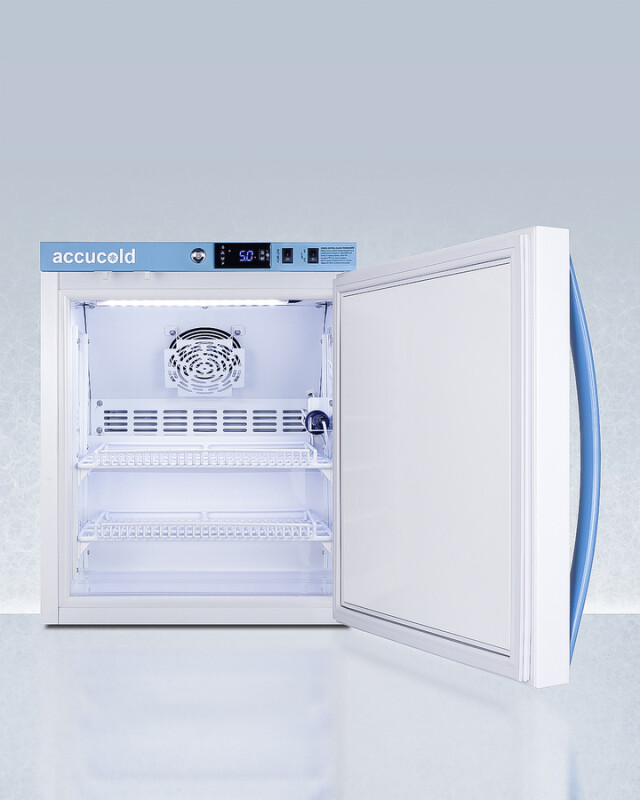

Adjustable plastic-coated wire shelves for improved circulation

Multiple shelf positions spaced at 1/2" to accommodate virtually any size

Durable interior

Walls are constructed from white powder coated metal for added strength and improved temperature retention

Interior light

Energy efficient LED lighting with internal on/off switch

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Self-closing door

Added protection in busy settings

Reversible door

User-reversible door swing for added flexibility

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty

2 years parts and labor/5 years compressor

Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Additional choices

Solid and glass door choices available from 1 to 18 cu.ft. Browse the Pharma-Vac series for more information

Versatile design

Compatible with Pyxis, Omnicell®, and AcuDose RX®

Matching freezer

Pair with Accucold AFZ1PV to create a matching set

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Refrigerator Features

Door SwingRHD
ReversibleYes
Shelf TypeWire
Shelf Qty2
Adjustable ShelvesYes
Thermostat TypeDigital
Fan TypeInterior
Refrigerant TypeR600a
Refrigerant Amount0.84oz.
High Side PSI280.0
Low Side PSI90.0
Interior LightYes
Temperature Range2 to 8ºC
Sound Level44.2 dB

Dimensions

Interior Height16.5" (42 cm)
Interior Width15.25" (39 cm)
Interior Depth15.75" (40 cm)
Compressor Step Height8.25" (21 cm)
Compressor Step Width15.25" (39 cm)
Compressor Step Depth4.25" (11 cm)

Dimensions & Weight

Width18.5 in.
Height22.25 in.
Length23.25 in.
Weight80 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement5.54 ft³
Dimensional Weight68.85 lbs.
Total of Cubes5.54 ft³
Total of Dimensional Weight68.85 lbs.

Other

Number of Boxes1
SourceCalculation
Capacity1.94 cu.ft. (55 L)
Defrost TypeAutomatic
DoorWhite
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps0.6
Voltage/Frequency115 V AC/60 Hz
Parts & Labor Warranty2 Years
Compressor Warranty5 Years
UPC761101106625
