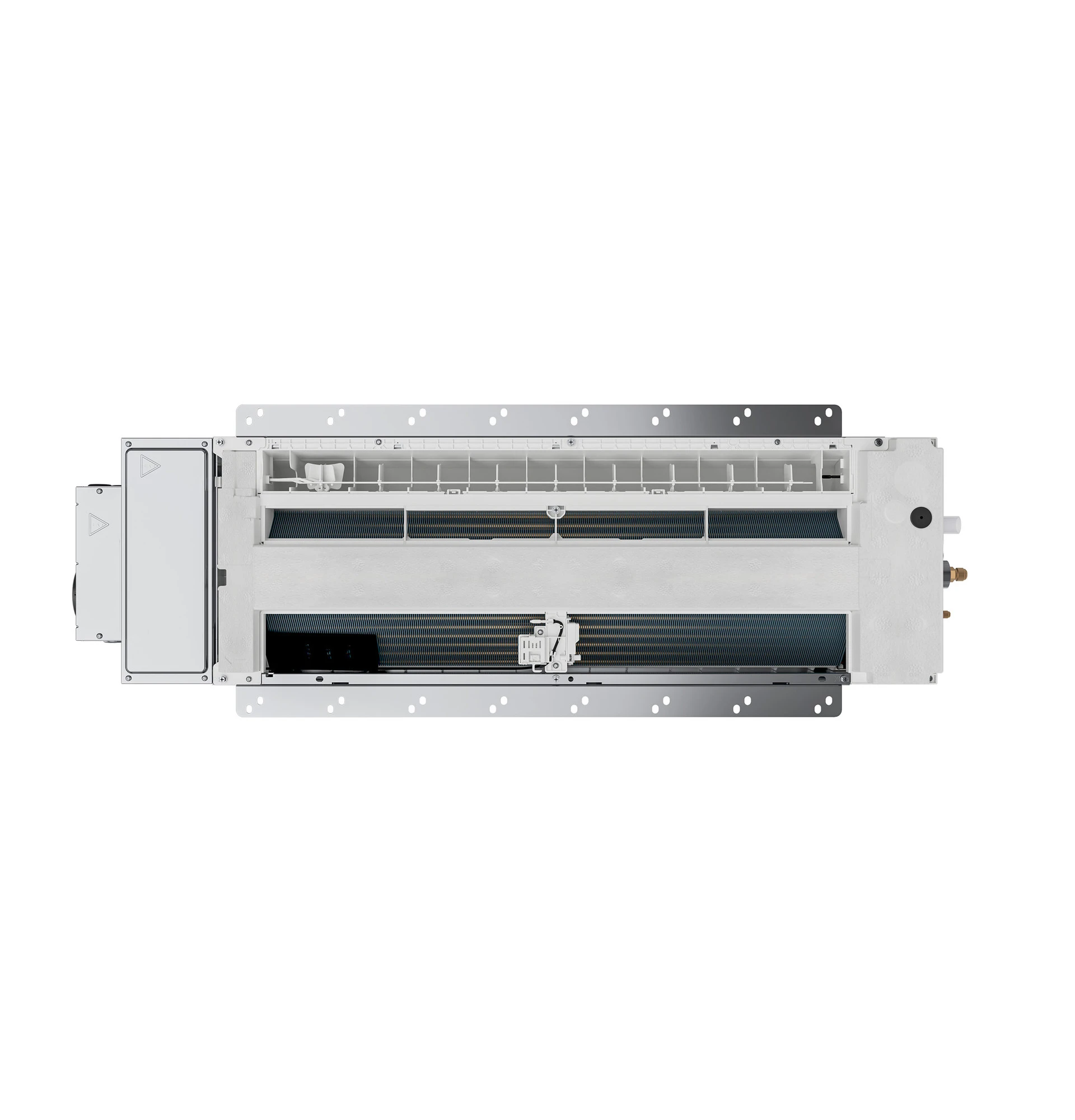

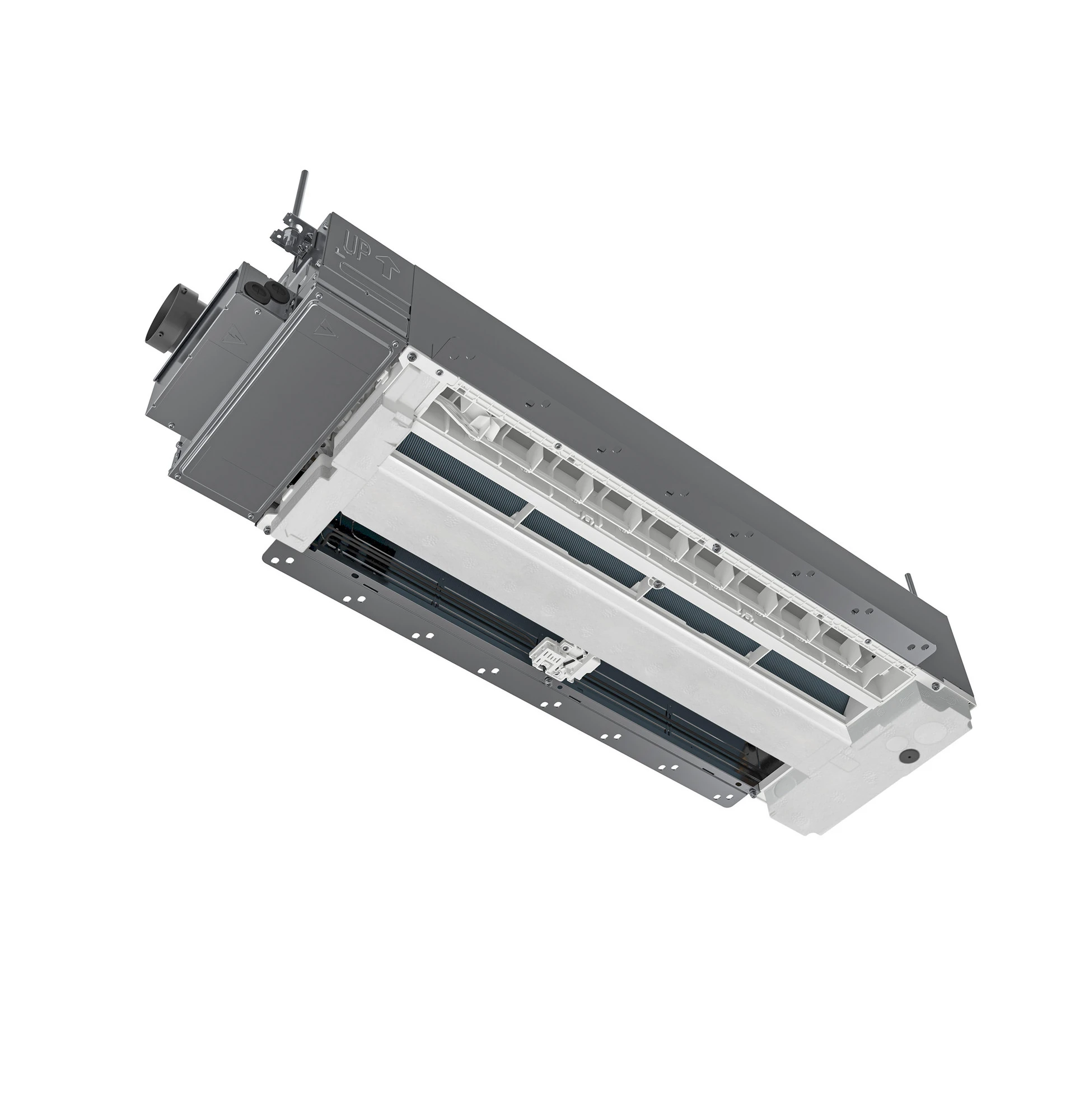

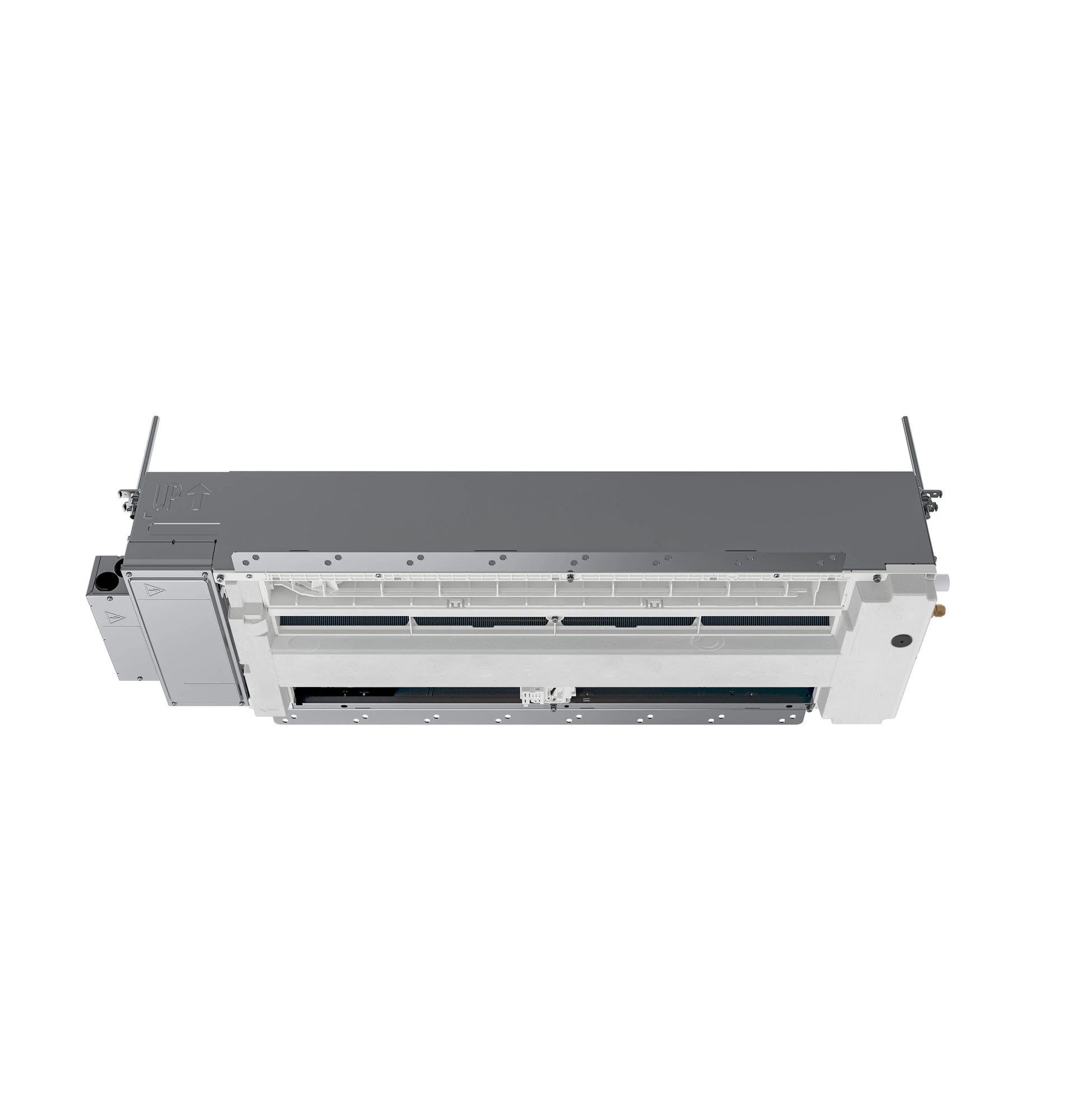

208-230V 9,000 BTU Ductless One-Way Cassette Indoor Unit - US09AB2BEA
208-230V 9,000 BTU Ductless One-Way Cassette Indoor Unit
Model: US09AB2BEA
208-230V 9,000 BTU Ductless One-Way Cassette Indoor Unit
Model: US09AB2BEA
Color : Other
Key Features
Convenient Modern Design
Easy-Access PCB
Condensate Pump
Fresh Air Knockout
3-D Airflow
Warm Start
Turbo Mode
Indoor Air Filter
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Convenient Modern Design
Flexible installation accommodates ceilings of various heights, and the sleek, recessed design fits between 16” ceiling joists for easy installation.
Easy-Access PCB
The PCB and motor can be easily removed for quick component and wiring checks.
Condensate Pump
Factory-installed condensate pump with up to 47 1/4” lift height.
Fresh Air Knockout
Unit designed with a 3” round fresh air knockout.
3-D Airflow
Designed to oscillate up and down, left and right automatically, ensuring optimal distribution of conditioned air throughout the space.
Warm Start
Ensures the fan does not blow cold air during heating mode startup.
Turbo Mode
Delivers rapid cooling or heating, making it ideal for quickly adjusting the room temperature.
Indoor Air Filter
The easily removable and cleanable indoor air filter reduces maintenance time, ensuring cleaner air and longer-lasting efficiency.
One-Way Cassette Panel
GAABP0718A (GE) or QAABP0718A (Haier) is required and must be purchased separately.
See user manual for full product details.
Specifications
FEATURES
| Built-In Condensate Pump | Yes |
| Drainpipe Size (in) | 1 |
| Fan Speed Stages | 5 + Auto |
| Max. Drain-Lift Height (in) | 47 1/4" (1200 mm) |
| Rated Capacity | 9,000 |
| Refrigerant Type | R454B |
| Series | Indoor Units (Compatible with Select Series) |
| Style | One-Way Cassette |
| WiFi Connect | Yes |
| Unit Type | Indoor |
WEIGHTS & DIMENSIONS
| Liquid O.D. Refrigerant Line | 1/4" |
| Overall Depth | 13 1/8" |
| Overall Height | 7 1/4" |
| Overall Width | 50 1/4" |
| Suction O.D. Refrigerant Line | 3/8 |
| Approximate Shipping Weight | 76.7 lb |
| Net Weight | 34.8 lb |
POWER / RATINGS
| Voltage/Hertz/Phase | 208-230/60/1 |
WARRANTY
| Labor Warranty | No Warranty |
| Parts Warranty | 5-Year limited parts warranty |
| Parts Warranty | 10-Year registered limited parts warranty |
| Warranty Notes | See written warranty for full details |
