208-230V 12,000 BTU Ductless One-Way Cassette Indoor Unit - US12AB2BEA

This product has been discontinued by the manufacture and is no longer available.

208-230V 12,000 BTU Ductless One-Way Cassette Indoor Unit

Model: US12AB2BEA

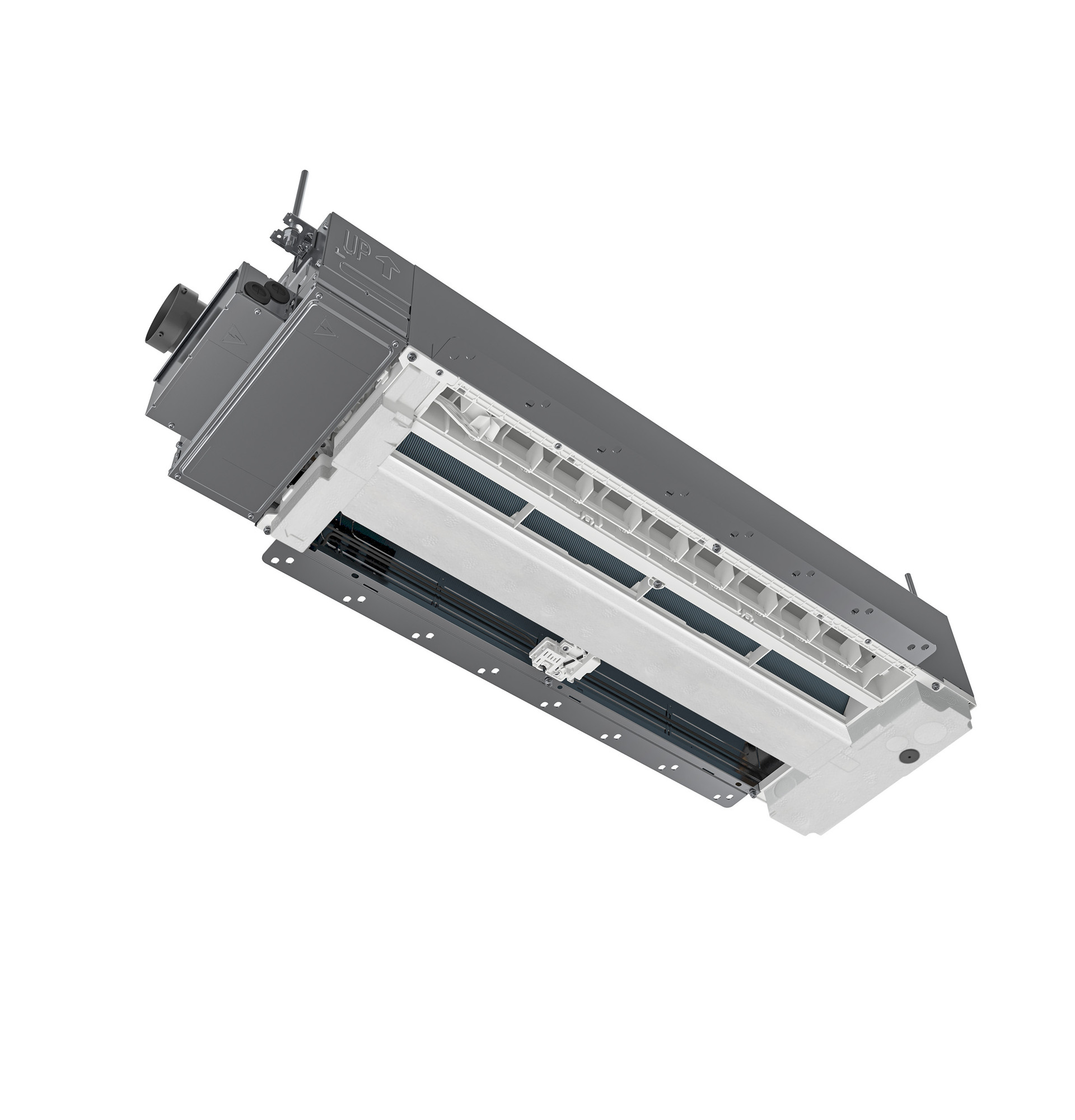

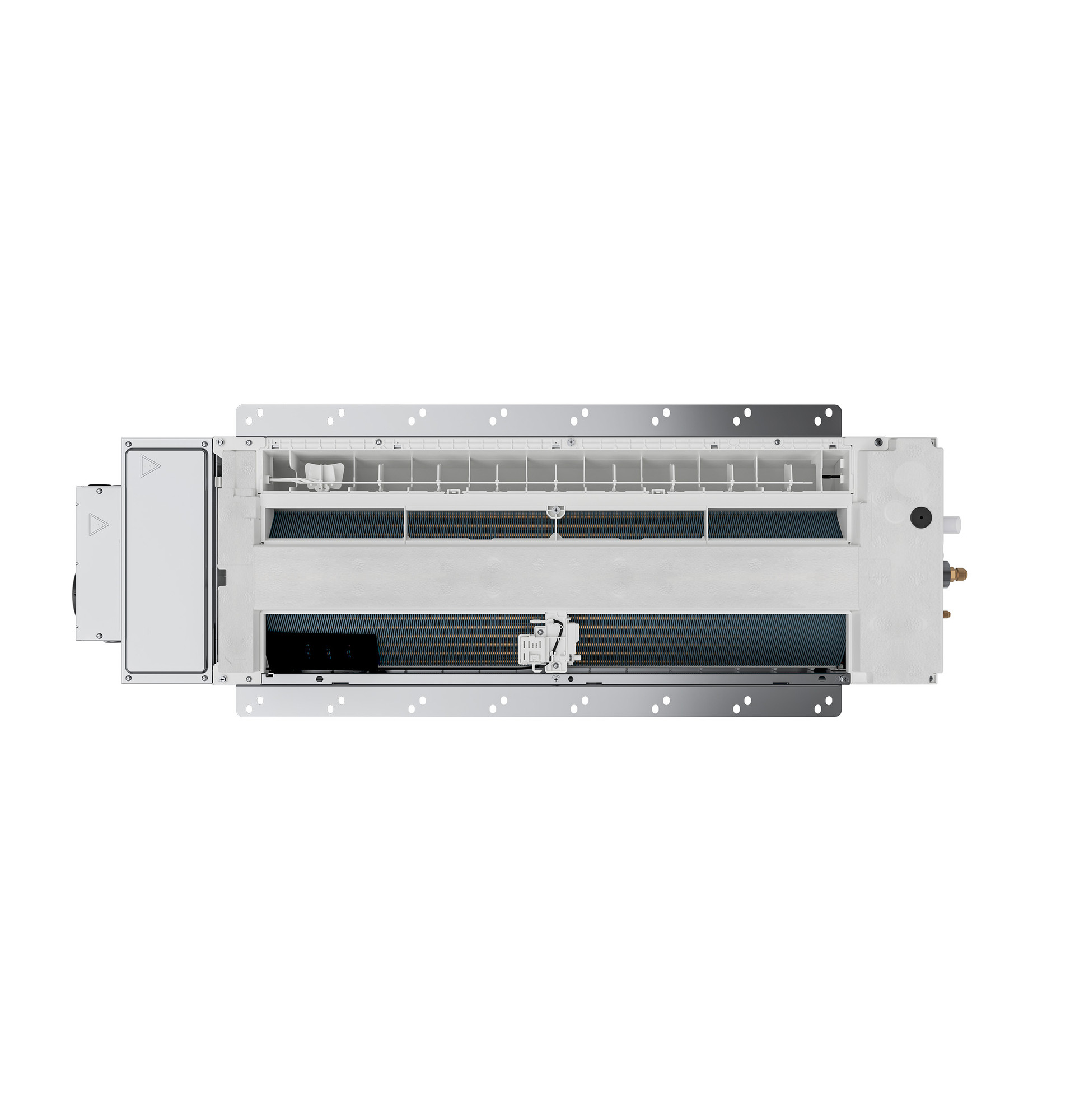

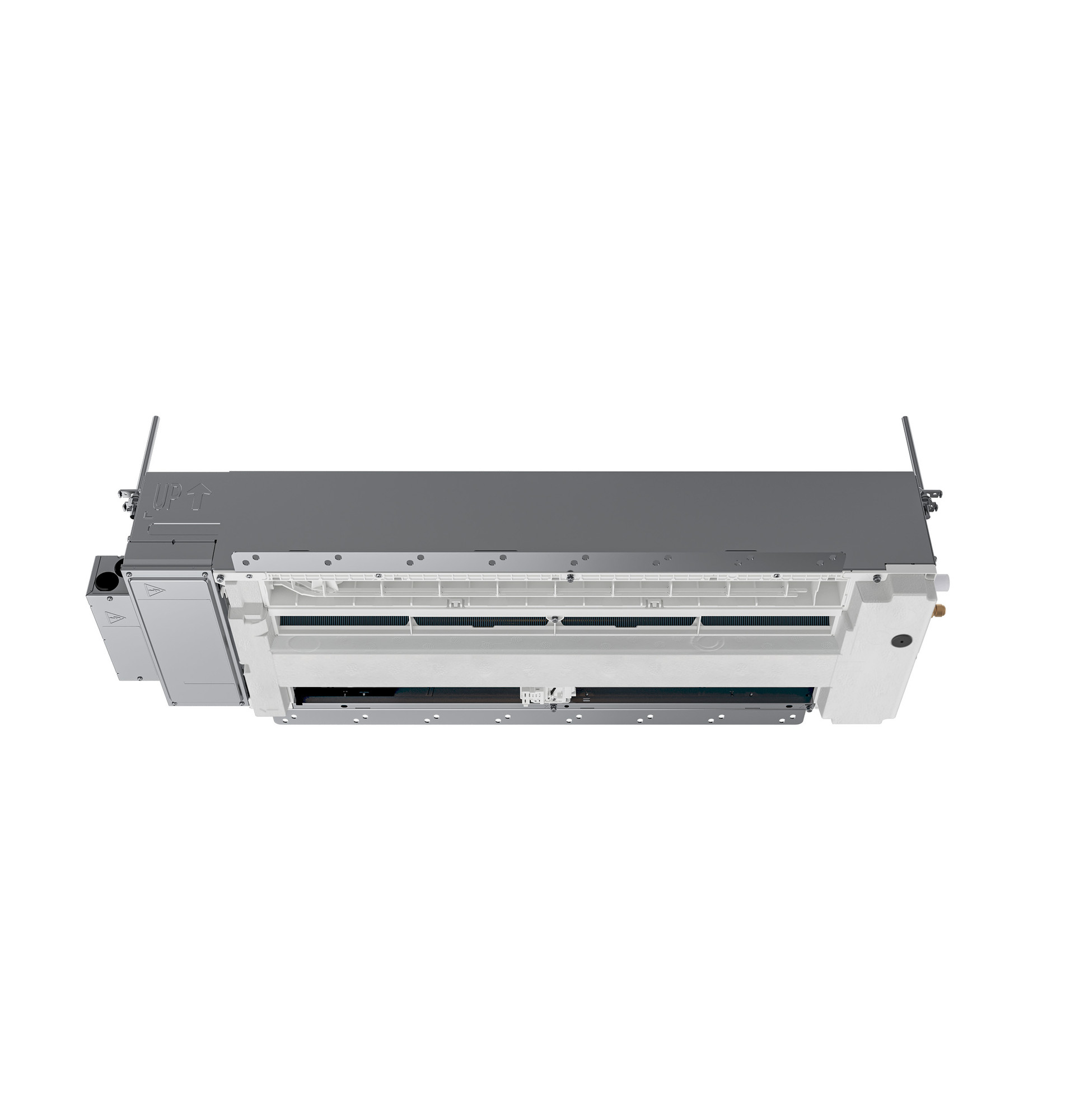

208-230V 12,000 BTU Ductless One-Way Cassette Indoor Unit US12AB2BEA, product image 1 of 4208-230V 12,000 BTU Ductless One-Way Cassette Indoor Unit US12AB2BEA, product image 2 of 4208-230V 12,000 BTU Ductless One-Way Cassette Indoor Unit US12AB2BEA, product image 3 of 4208-230V 12,000 BTU Ductless One-Way Cassette Indoor Unit US12AB2BEA, product image 4 of 4
208-230V 12,000 BTU Ductless One-Way Cassette Indoor Unit US12AB2BEA, thumbnail image 1 of 4
208-230V 12,000 BTU Ductless One-Way Cassette Indoor Unit US12AB2BEA, thumbnail image 2 of 4
208-230V 12,000 BTU Ductless One-Way Cassette Indoor Unit US12AB2BEA, thumbnail image 3 of 4
208-230V 12,000 BTU Ductless One-Way Cassette Indoor Unit US12AB2BEA, thumbnail image 4 of 4

Color : Other

208-230V 12,000 BTU Ductless One-Way Cassette Indoor Unit US12AB2BEA
Other

Key Features

  • Convenient Modern Design

  • Easy-Access PCB

  • Condensate Pump

  • Fresh Air Knockout

  • 3-D Airflow

  • Warm Start

  • Turbo Mode

  • Indoor Air Filter

Read More

Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.

Features
Specifications

Features

Convenient Modern Design

Flexible installation accommodates ceilings of various heights, and the sleek, recessed design fits between 16” ceiling joists for easy installation.

Easy-Access PCB

The PCB and motor can be easily removed for quick component and wiring checks.

Condensate Pump

Factory-installed condensate pump with up to 47 1/4” lift height.

Fresh Air Knockout

Unit designed with a 3” round fresh air knockout.

3-D Airflow

Designed to oscillate up and down, left and right automatically, ensuring optimal distribution of conditioned air throughout the space.

Warm Start

Ensures the fan does not blow cold air during heating mode startup.

Turbo Mode

Delivers rapid cooling or heating, making it ideal for quickly adjusting the room temperature.

Indoor Air Filter

The easily removable and cleanable indoor air filter reduces maintenance time, ensuring cleaner air and longer-lasting efficiency.

One-Way Cassette Panel

GAABP0718A (GE) or QAABP0718A (Haier) is required and must be purchased separately.

See user manual for full product details.

Specifications

FEATURES

Refrigerant TypeR454B
Built-In Condensate PumpYes
Drainpipe Size (in)1
Fan Speed Stages5 + Auto
Max. Drain-Lift Height (in)47 1/4" (1200 mm)
Rated Capacity12000
SeriesIndoor Units (Compatible with Select Series)
StyleOne-Way Cassette
Unit TypeIndoor
WiFi ConnectYes

WEIGHTS & DIMENSIONS

Liquid O.D. Refrigerant Line1/4"
Overall Depth13 1/8"
Overall Height7 1/4"
Overall Width50 1/4"
Suction O.D. Refrigerant Line3/8
Approximate Shipping Weight78.9 lb
Net Weight42.1 lb

POWER / RATINGS

Voltage/Hertz/Phase208-230/60/1

Warranty

Parts5 Year
