30” Smart Designer Wall Mount Hood w/ Perimeter Venting - UVW9301BLTS
30” Smart Designer Wall Mount Hood w/ Perimeter Venting
Model: UVW9301BLTS


















Product Video

30” Smart Designer Wall Mount Hood w/ Perimeter Venting
Model: UVW9301BLTS
Replaced By
Key Features
Adjustable CFM blower
Four-speed fan control
LED backlit glass touch control
WiFi powered by SmartHQ
10-ft. ceiling height
Triple LED dimmable lighting
Convertible venting options
Timer and clock
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
Adjustable CFM blower
High powered 610 CFM blower adjustable downward to either 380 or 290 maximum CFM to accommodate different installation needs
Four-speed fan control

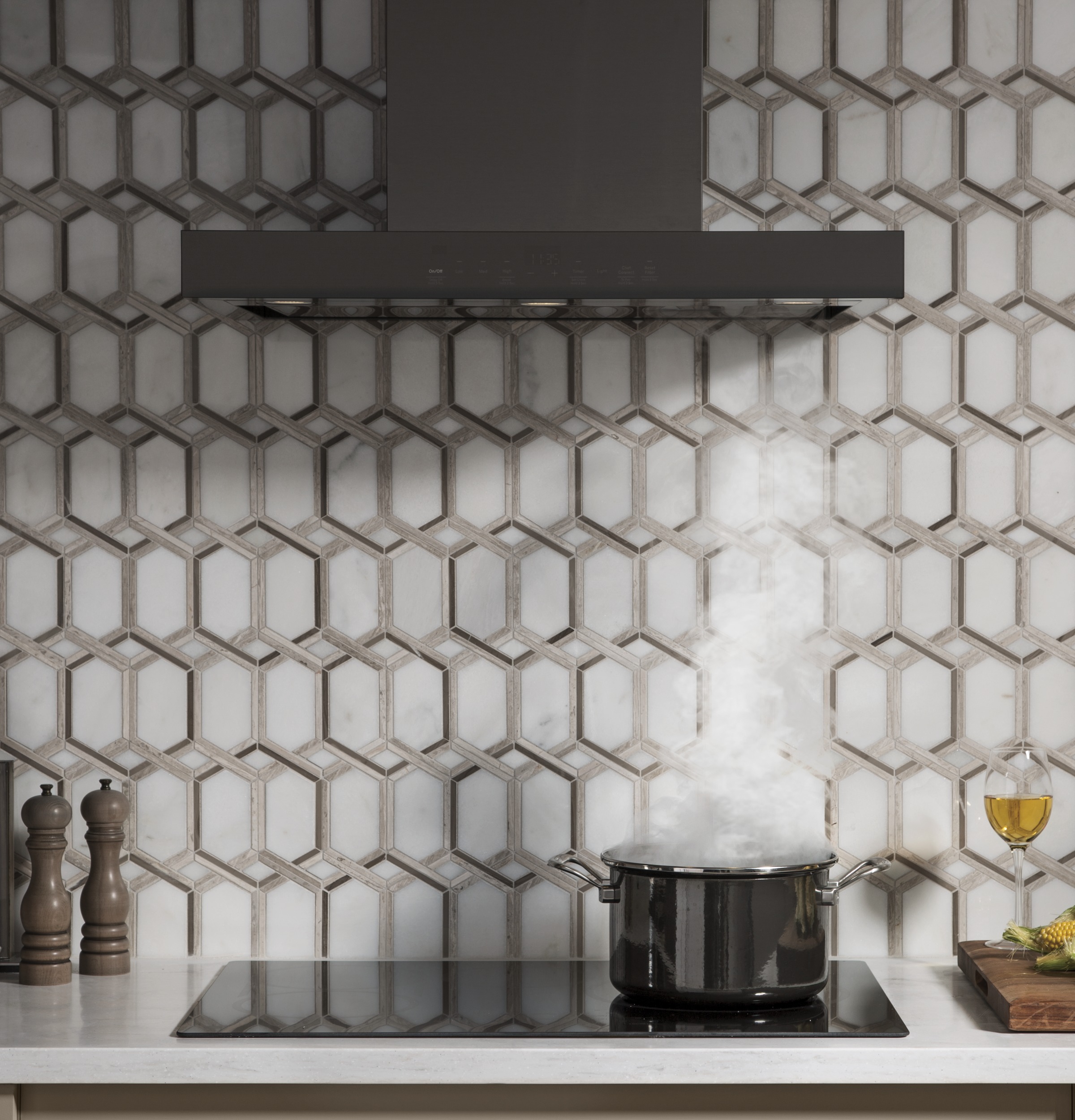

Helps draw smoke, grease, odors and moisture out of the kitchen air

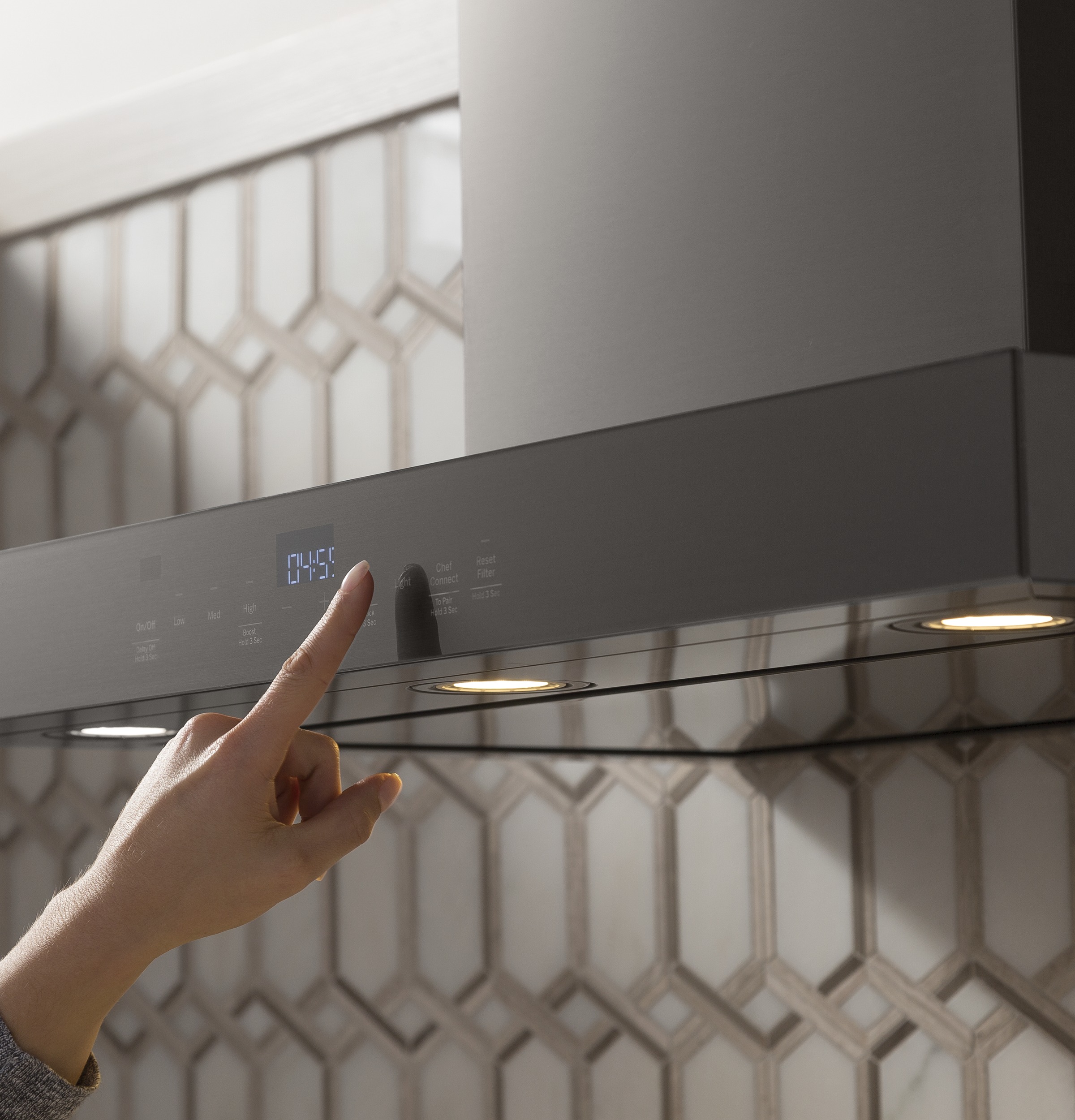

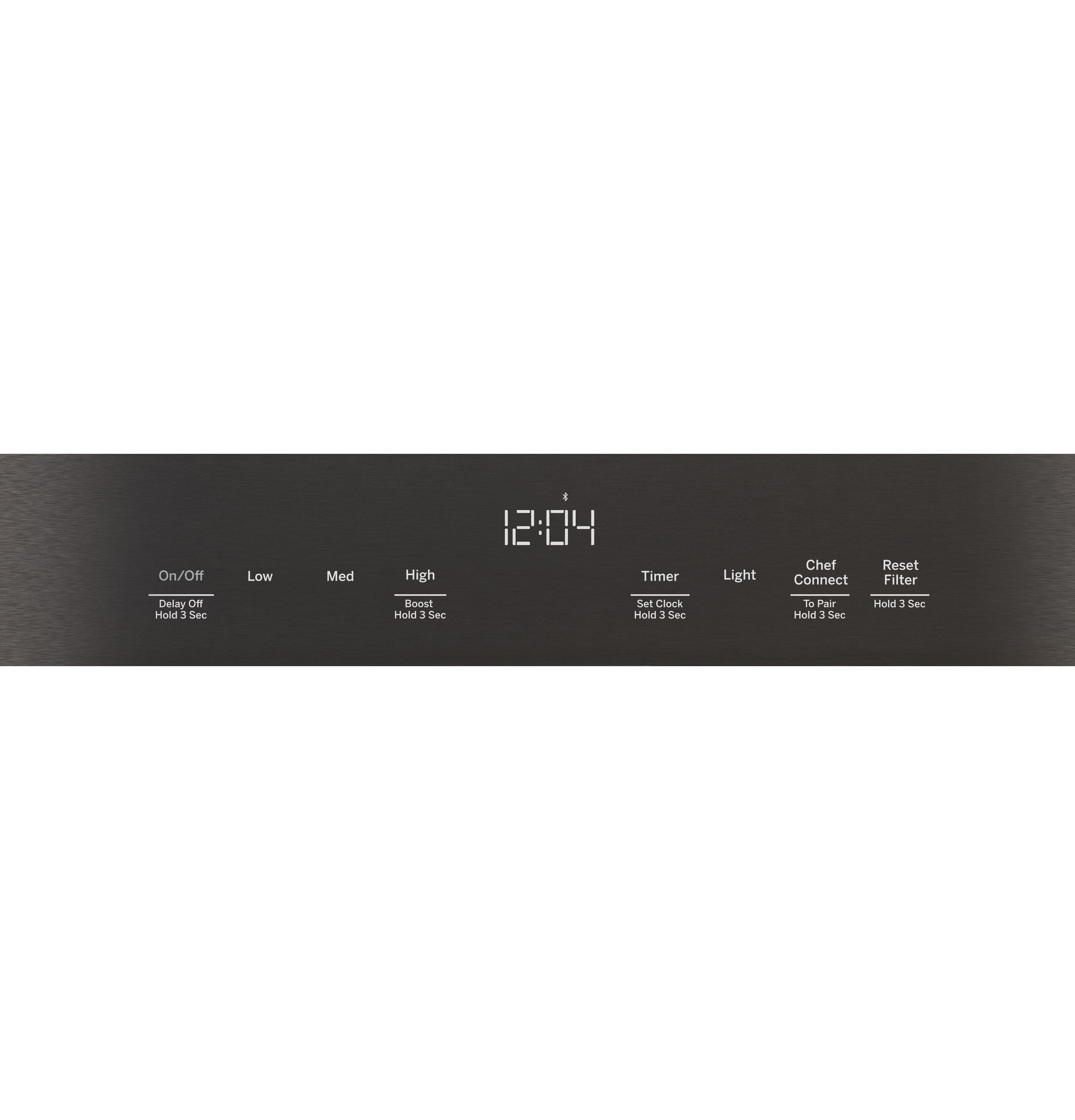

LED backlit glass touch control
Attractive controls are easy to read and instantly wipe clean
WiFi powered by SmartHQ

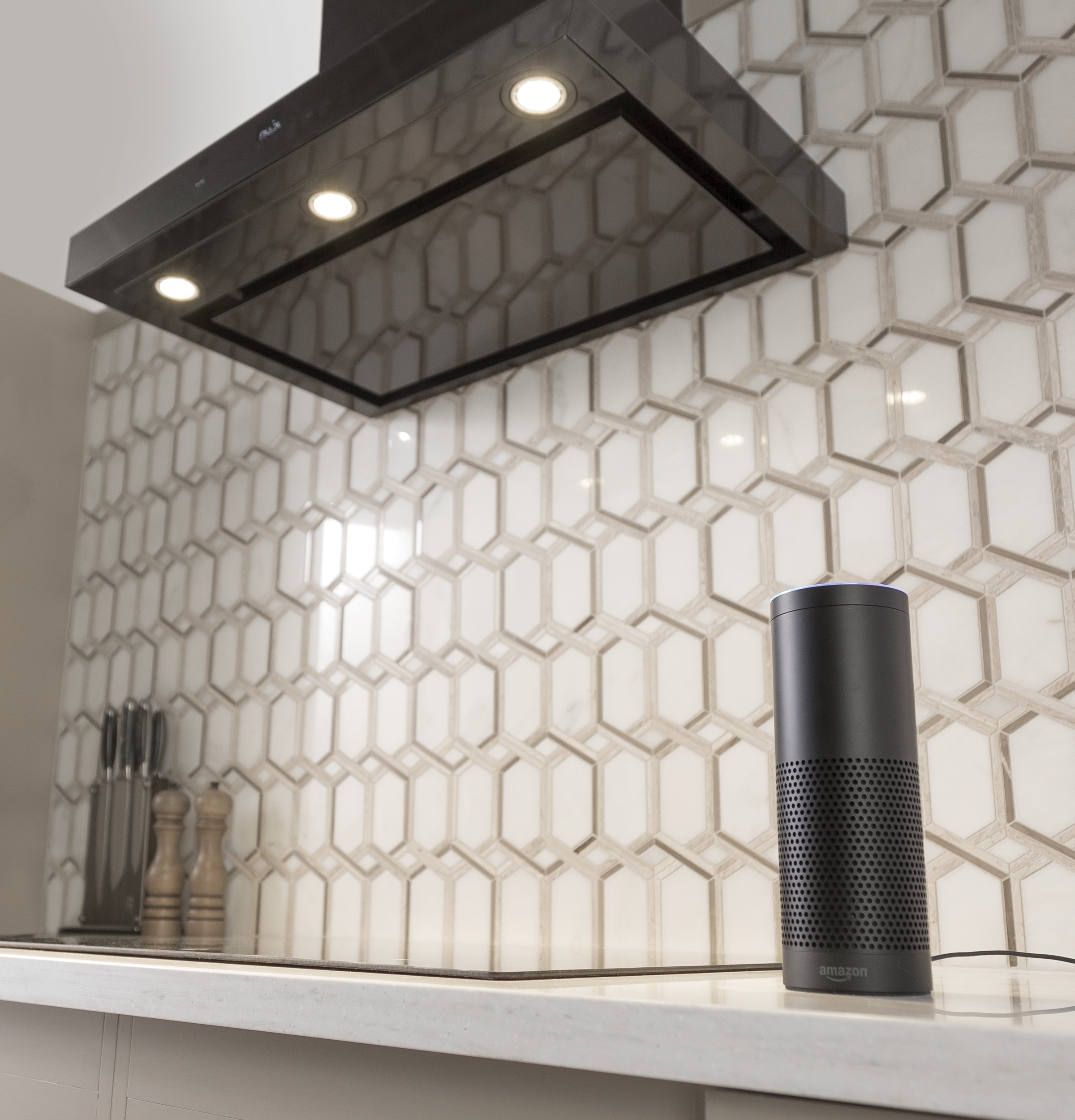

Control appliances with a smart device or just the sound of your voice
10-ft. ceiling height
Included duct cover extensions reach up to 10' ceilings and work with optional accessories to reach up to 14' ceilings

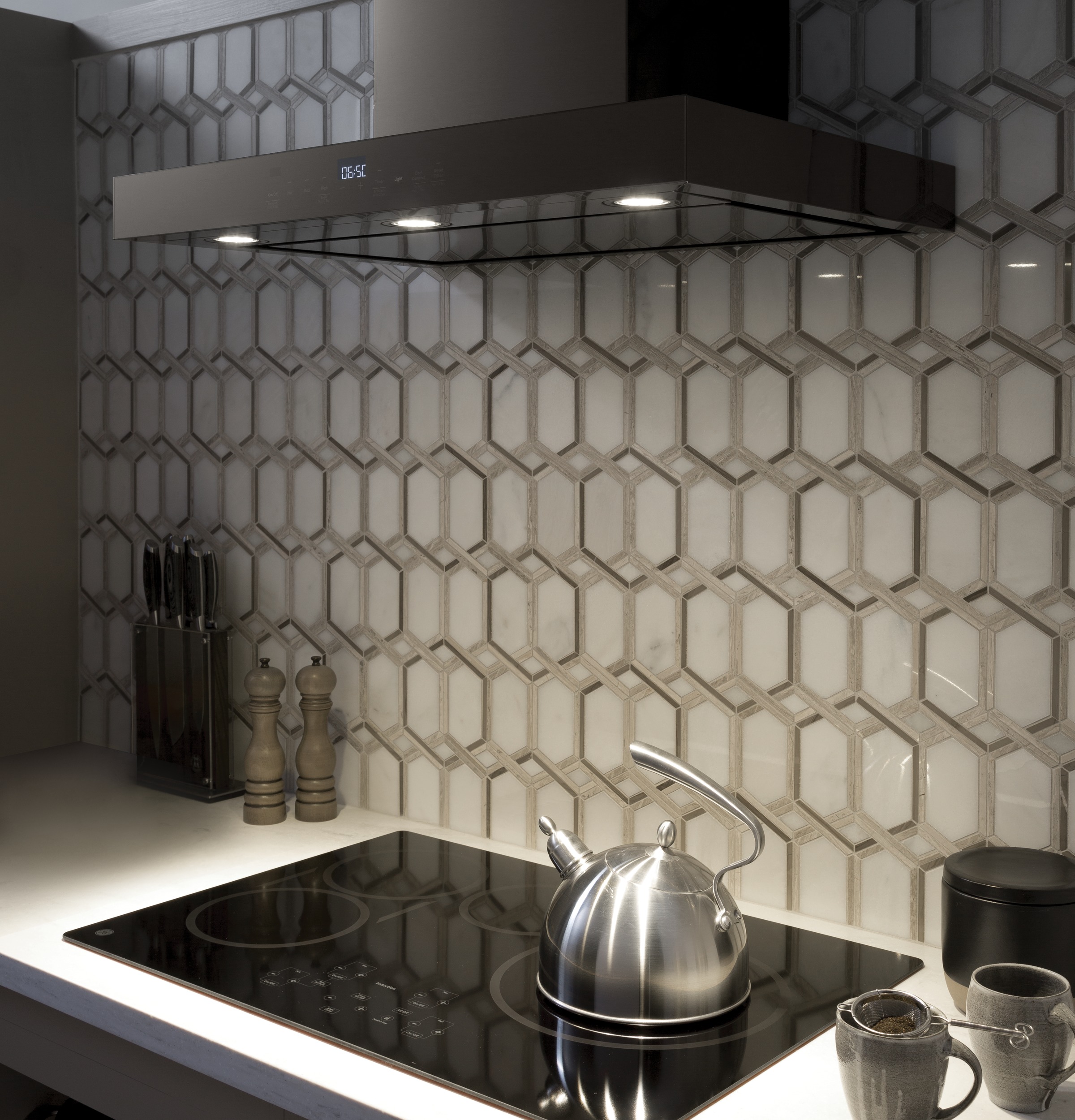

Triple LED dimmable lighting
bulbs included - LED modules ensure bright lighting for the entire cooking environment
Convertible venting options
Select recirculating or external venting
Timer and clock
Enjoy the convenience of a bright display at the ideal height
Chef Connect
Automatically control the hood's lights and fan by syncing with the range

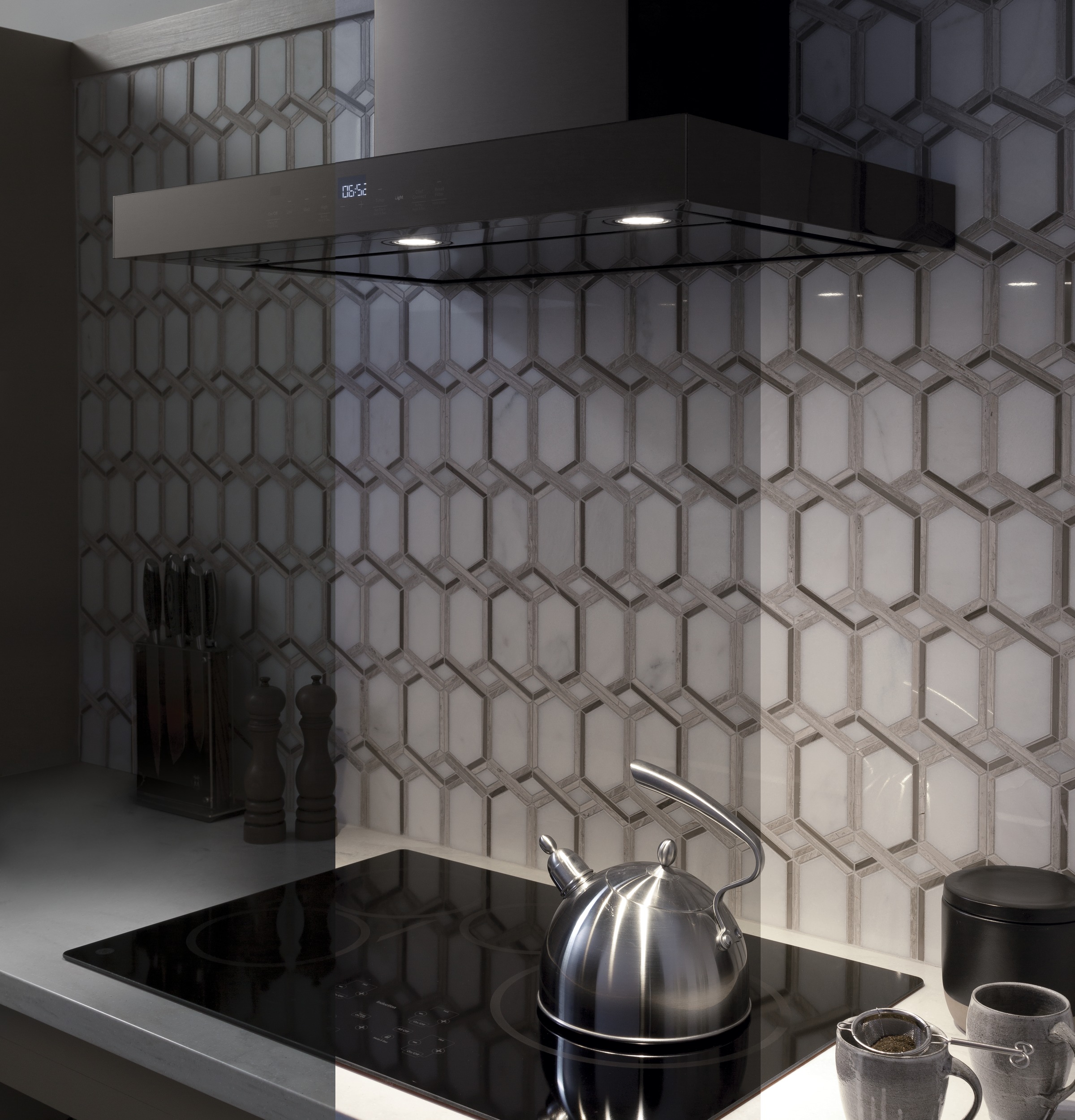

Perimeter venting
Provides a clean, modern design that makes a statement of style in any kitchen.
WiFi powered by SmartHQ™
Control appliances with a smart device or just the sound of your voice
Certifications
California Prop 65
UL
ADA Compliant
Specifications

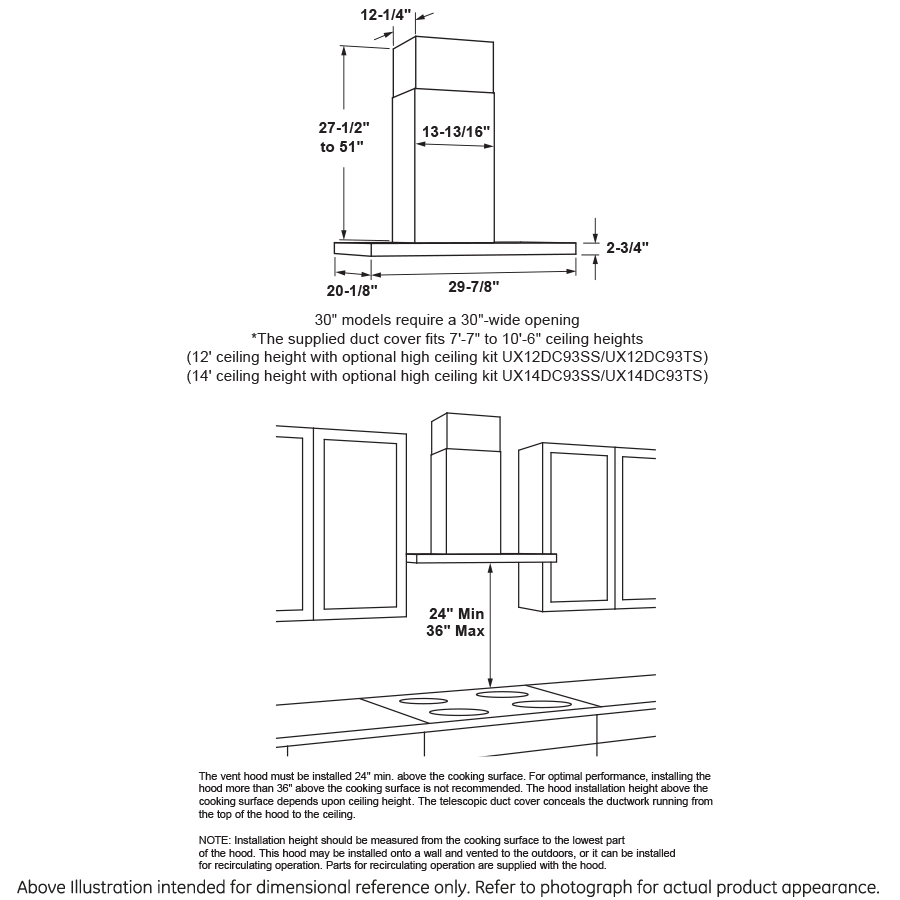

WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Overall Depth | 20 in |
| Overall Height | 24 in |
| Overall Width | 30 in |
| Net Weight | 70 lb |
| Approximate Shipping Weight | 80 lb |
FEATURES
| Cooktop Lighting | LED |
| Fan Speed Control | 4-Speed |
| WiFi Connect | Built-In |
| Max CFM | 610 |
| Ducting | Vertical Only |
| Light Controls | On/Off/Night |
| Filter Cleaning | Dishwasher Safe |
| CFM/ Sones Rating | 610/- (Boost Speed) |
| Time Delay Shut-Off | Yes |
| Exhaust Options | Vented to Outside |
| 8" Round Duct | Yes |
| Product Type | Designer Hood |
| Control Features | Timer/Clock |
| Control Type | Electronic Touch |
| Connected Capabilities | Google Home |

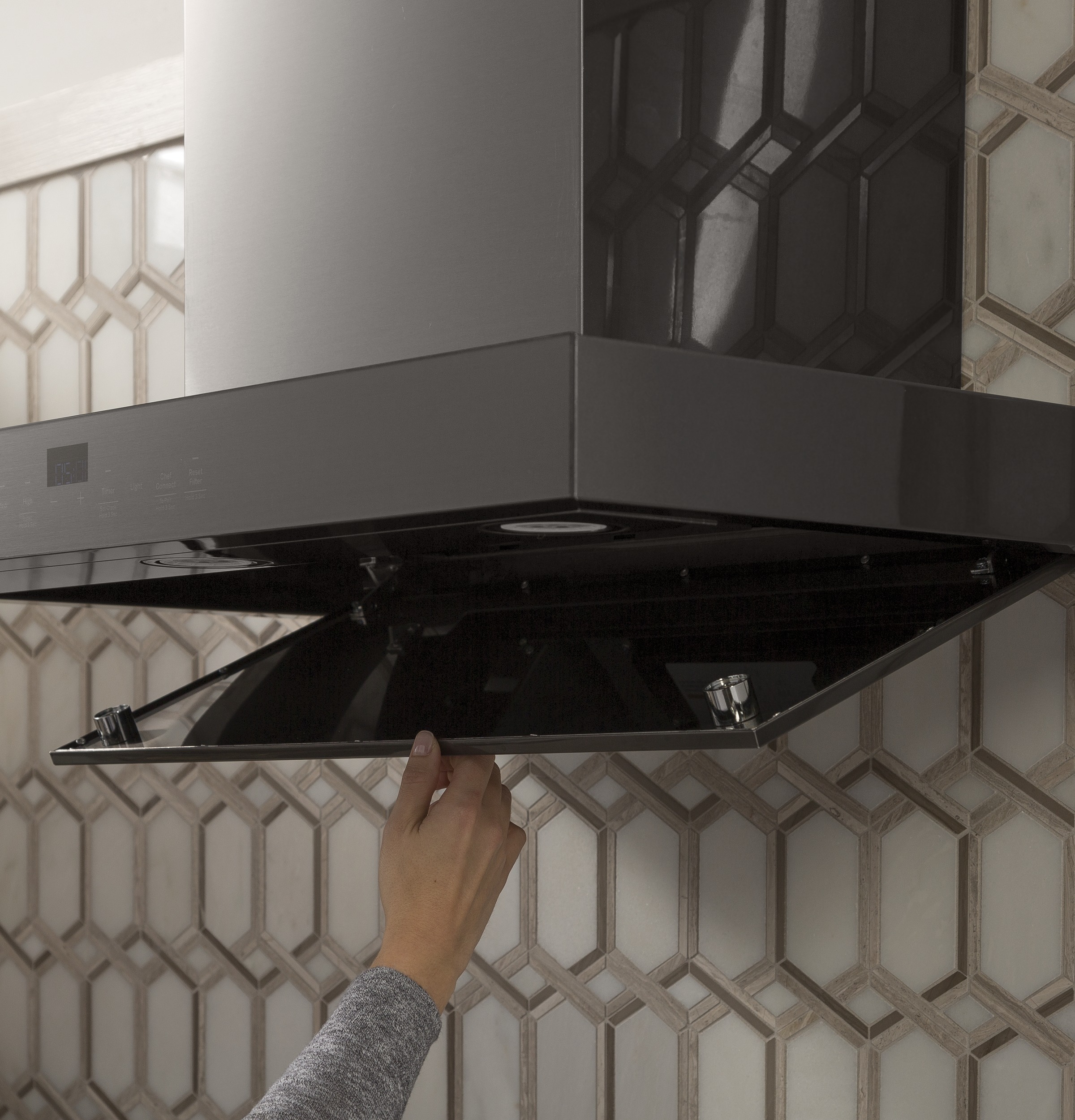

| Removable Filter | Grease & Charcoal included |
| Control Location | Front |
| Charcoal Filter | UXCF91 |
| CFM/ Sones Rating | 610/9.5 (Boost Speed) |
| CFM/ Sones Rating | 290/2.5 (Medium Speed) |
| CFM/ Sones Rating | 380/4.0 (High Speed) |
| Cooktop Lighting | 3 |
| Exhaust Options | Recirculating |
| Connected Capabilities | Amazon Alexa |
| CFM/ Sones Rating | 100/1.0 (Working Speed) |
APPEARANCE
| Blower / Light Switch Color | Backlit |
| Color Appearance | Fingerprint Resistant Black Stainless |
ACCESSORIES
| Optional Accessories | UXRC70 - Remote Control |
| Optional Accessories | JXMUA8 - Makeup air accessory kit |
| Optional Accessories | JXHC1 - Power Cord Kit |
| Optional Accessories | UX12DC9BLTS - 12' High Ceiling Duct Cover Kit |
| Optional Accessories | UX14DC9BLTS - 14' High Ceiling Duct Cover Kit |
POWER / RATINGS
| Amp Rating at 120V | 5.3 |
ECONOMICAL / QUIET
| Venting Type | Convertible |
Dimensions & Weight
| Width | 30 in. |
| Height | 24 in. |
| Length | 20 in. |
| Weight | 70 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 29 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 110 lbs. |
| Total of Shipping Weight | 110 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.33 ft³ |
| Dimensional Weight | 103.6 lbs. |
| Total of Cubes | 8.33 ft³ |
| Total of Dimensional Weight | 103.6 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
