Universal T-Shaped Hood - UVW8366SLSS
Universal T-Shaped Hood
Model: UVW8366SLSS
Universal T-Shaped Hood
Model: UVW8366SLSS
Color : Stainless Steel
Key Features
350-CFM blower
350-CFM blower
Dual LED dimmable lighting
Dual LED dimmable lighting
Electronic backlit controls
Electronic backlit controls
Convertible venting options
Convertible venting options
Available from Barrys Appliance, serving customers throughout New Jersey & Surrounding Areas.
Features
350-CFM blower
Powerful blower removes smoke, grease, odor and moisture
350-CFM blower
Powerful blower removes smoke, grease, odor and moisture
Dual LED dimmable lighting
bulbs included - Enjoy the right amount of bright LED lighting on the cooktop and surrounding areas
Dual LED dimmable lighting
bulbs included - Enjoy the right amount of bright LED lighting on the cooktop and surrounding areas

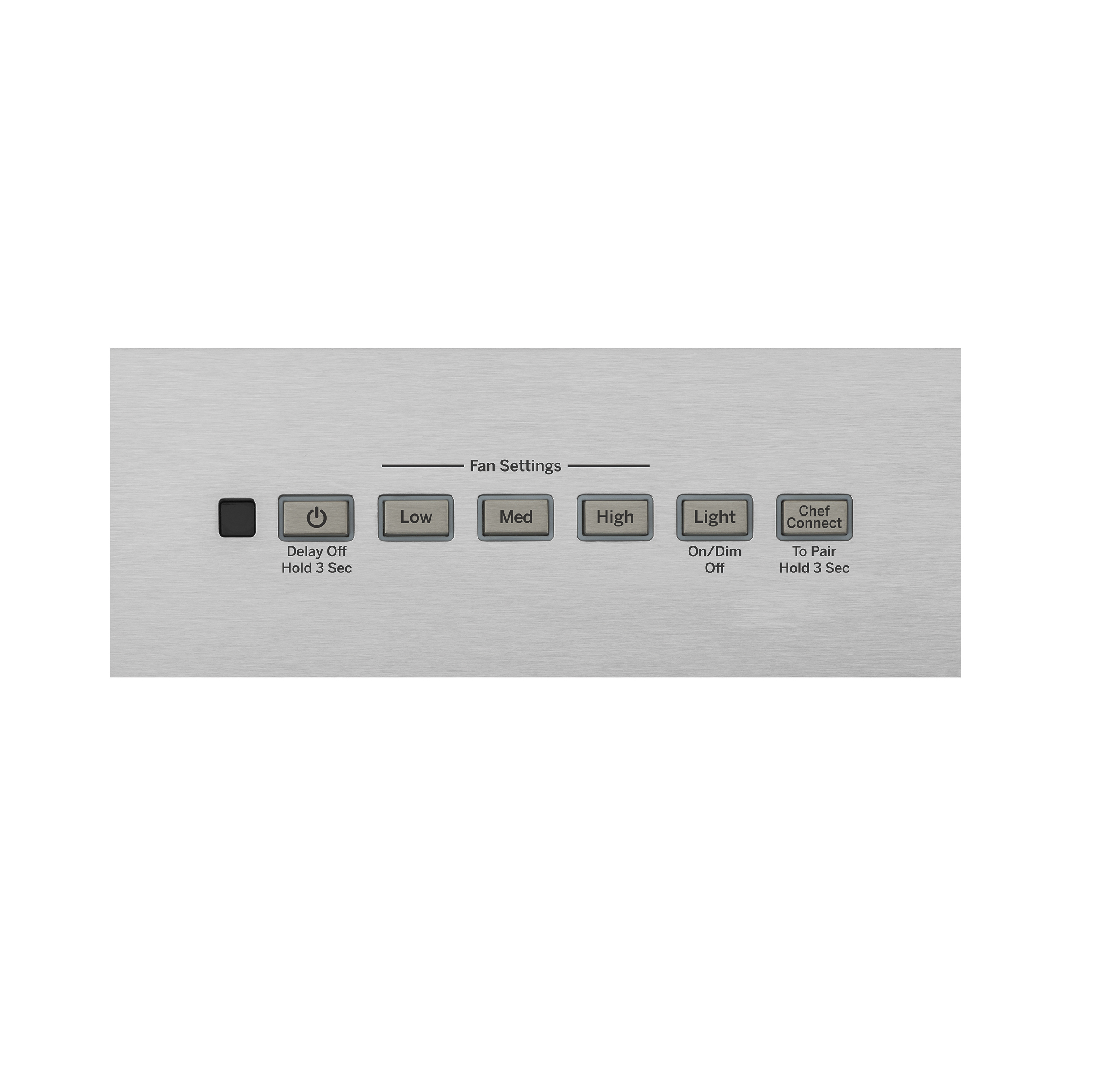

Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display
Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display
Convertible venting options
Select recirculating or external venting
Convertible venting options
Select recirculating or external venting
9-ft. ceiling height
Included duct cover extensions reach up to 9' ceilings
9-ft. ceiling height
Included duct cover extensions reach up to 9' ceilings
Chef Connect
Automatically control the hood's lights and fan by syncing with the range
Chef Connect
Automatically control the hood's lights and fan by syncing with the range

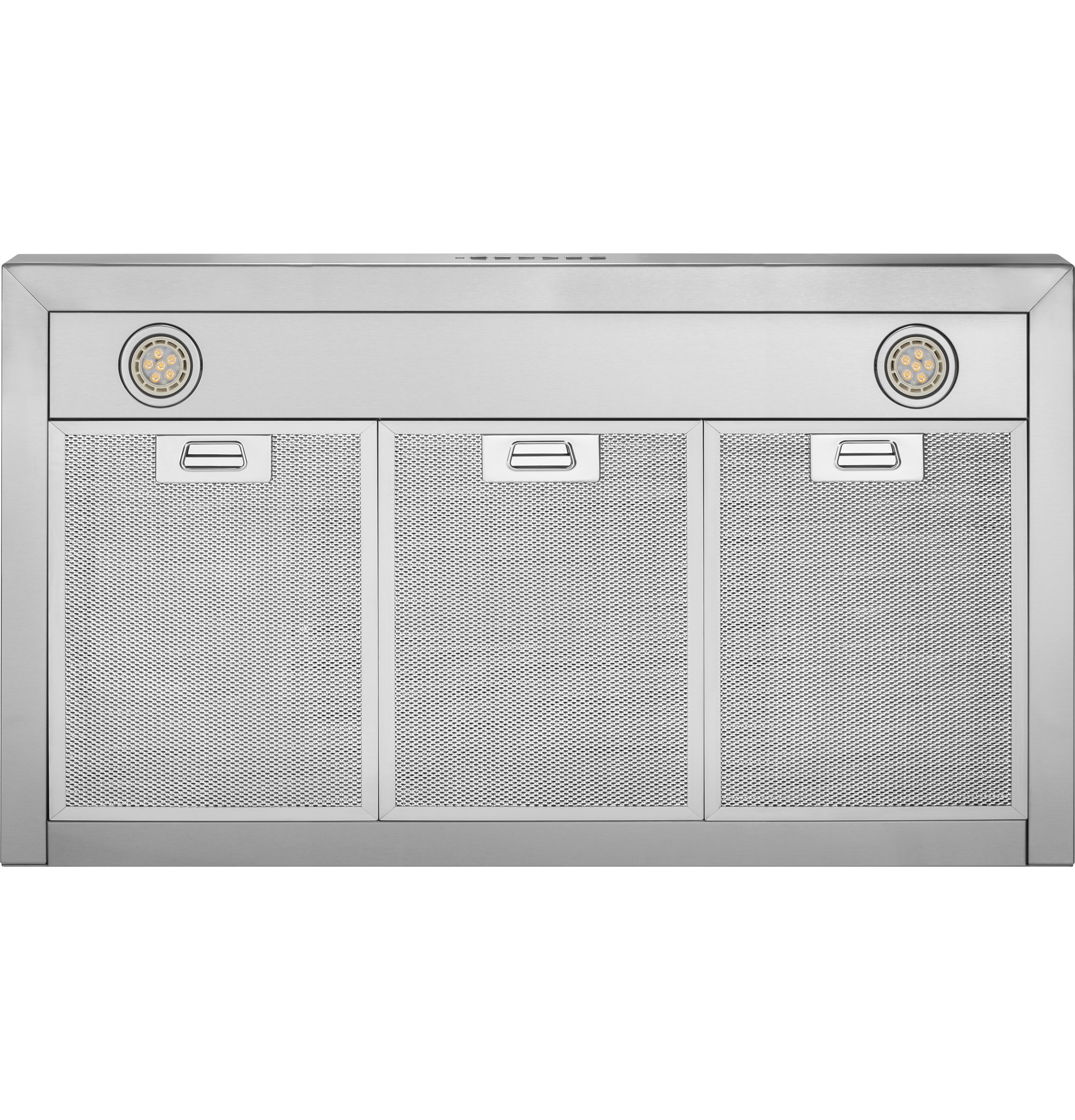

Dishwasher safe filter
Filters grease and is dishwasher-safe
Dishwasher safe filter
Filters grease and is dishwasher-safe
Remote control included
Activate and adjust your hood functions from anywhere in the kitchen
Certifications
UL
Specifications

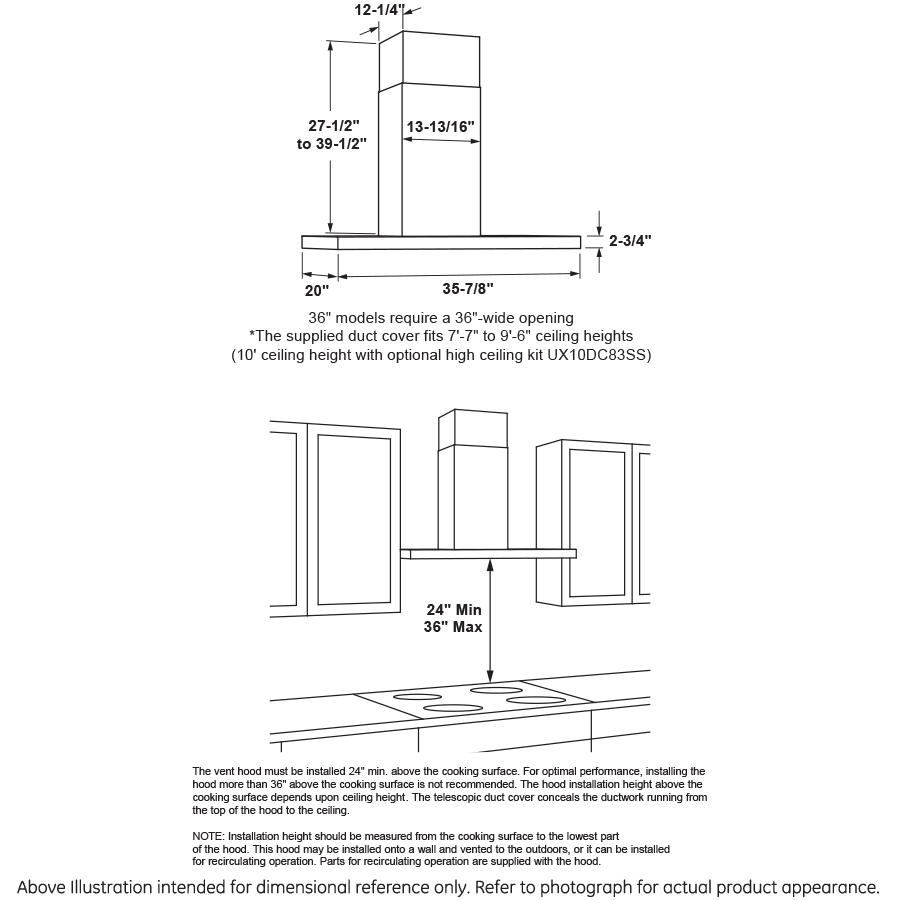

WEIGHTS & DIMENSIONS
| Cabinet Width | 36 in |
| Overall Depth | 20 in |
| Overall Height | 24 in |
| Overall Width | 36 in |
| Net Weight | 70 lb |
| Approximate Shipping Weight | 80 lb |
FEATURES
| Fan Speed Control | 4-Speed |
| Cooktop Lighting | LED |
| Max CFM | 610 |
| Ducting | Vertical Only |
| Light Controls | On/Off/Night |
| Filter Cleaning | Dishwasher Safe |
| CFM/ Sones Rating | 610/6.5 (Boost Speed) |
| Time Delay Shut-Off | Yes |
| Exhaust Options | Vented to Outside |
| 8" Round Duct | Yes |
| Control Type | Electronic |
| Removable Filter | Grease & Charcoal included |
| Control Location | Front |
| CFM/ Sones Rating | 200/ 3.0 (Medium Speed) |
| CFM/ Sones Rating | 300/5.0 (High Speed) |
| CFM/ Sones Rating | 100/1.0 (Working Speed) |
| Control Type | Backlit |
| Cooktop Lighting | 2 |
| Exhaust Options | Recirculating |
APPEARANCE
| Blower / Light Switch Color | Backlit |
| Color Appearance | Stainless Steel |
ACCESSORIES
| Optional Accessories | UX10DC83SS - 10' High Ceiling Duct Cover Kit |
POWER / RATINGS
| Amp Rating at 120V | 5.3 |
ECONOMICAL / QUIET
| Venting Type | Convertible |
Dimensions & Weight
| Width | 36 in. |
| Height | 24 in. |
| Length | 20 in. |
| Weight | 70 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 29 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 110 lbs. |
| Total of Shipping Weight | 110 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10 ft³ |
| Dimensional Weight | 124.32 lbs. |
| Total of Cubes | 10 ft³ |
| Total of Dimensional Weight | 124.32 lbs. |
Warranty
| Parts (Entire Appliance) | 1 Year |
| Labor (In Home) | 1 Year |
